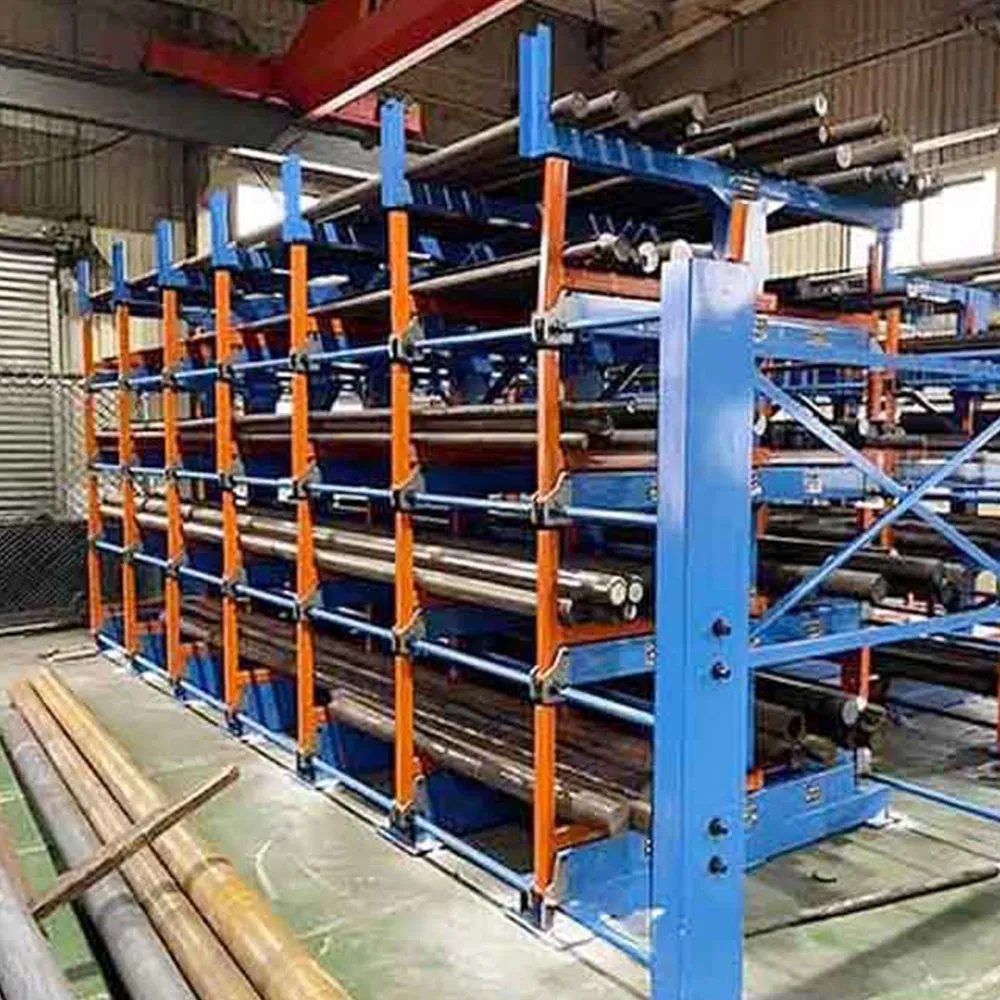

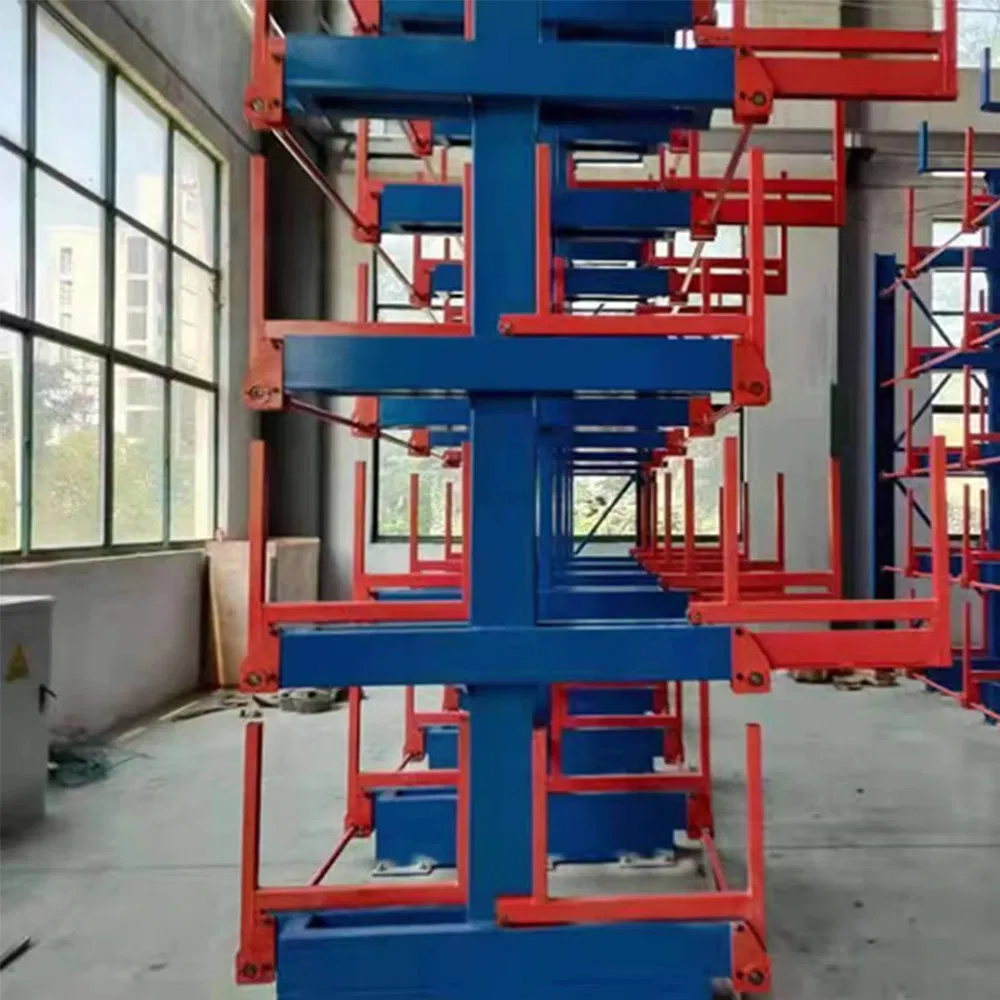

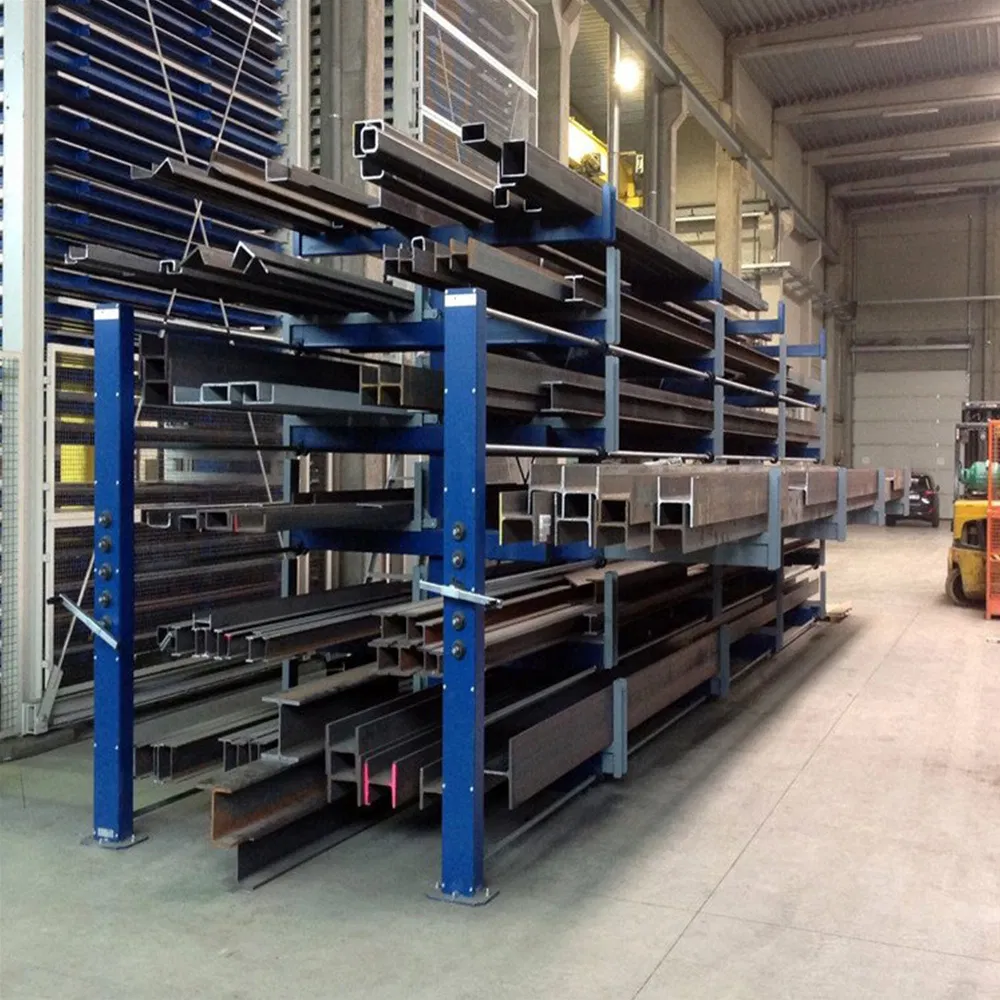

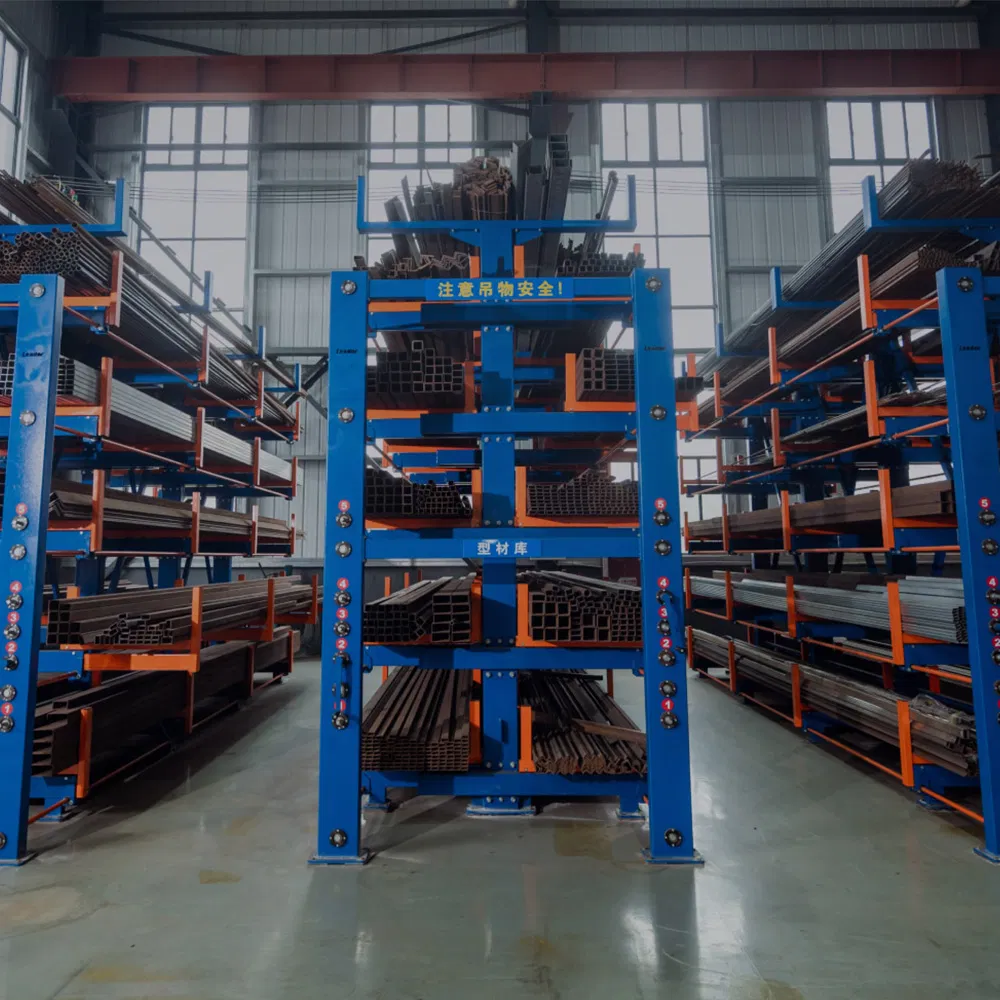

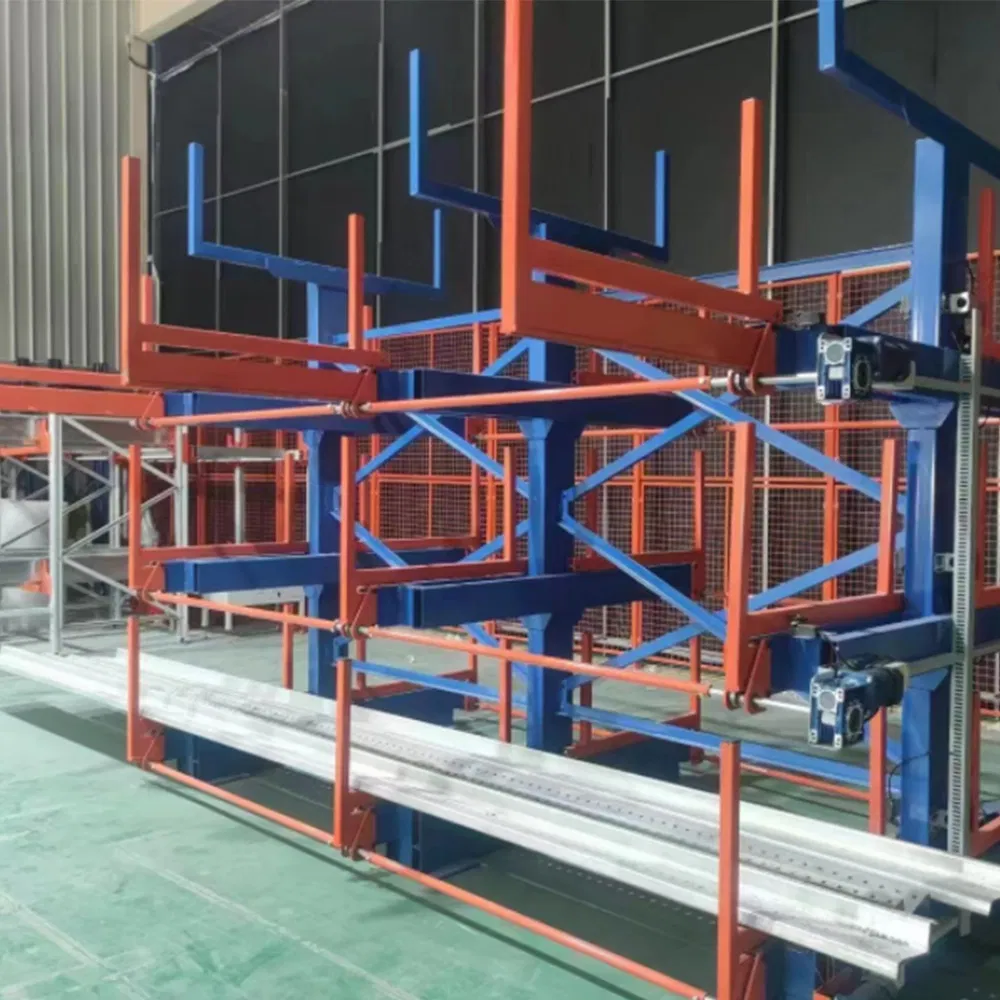

Blue Upright Orange Arm Customized Handle Warehouse Industrial Telescopic Heavy Duty Sheet Metal Storage Roll out Cantilever Rack for Long Metal Cargo

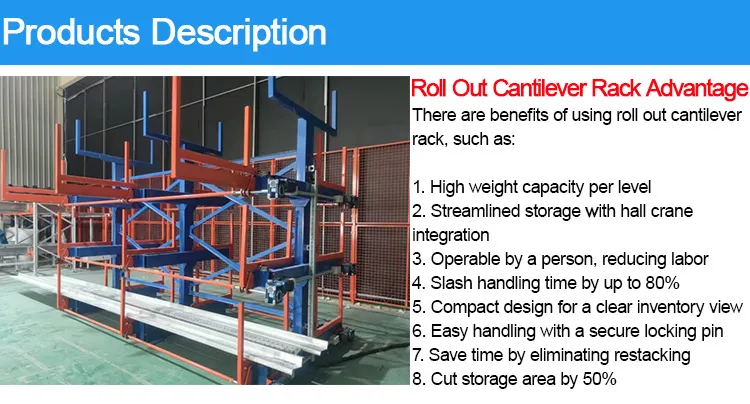

Product Description

Details Images

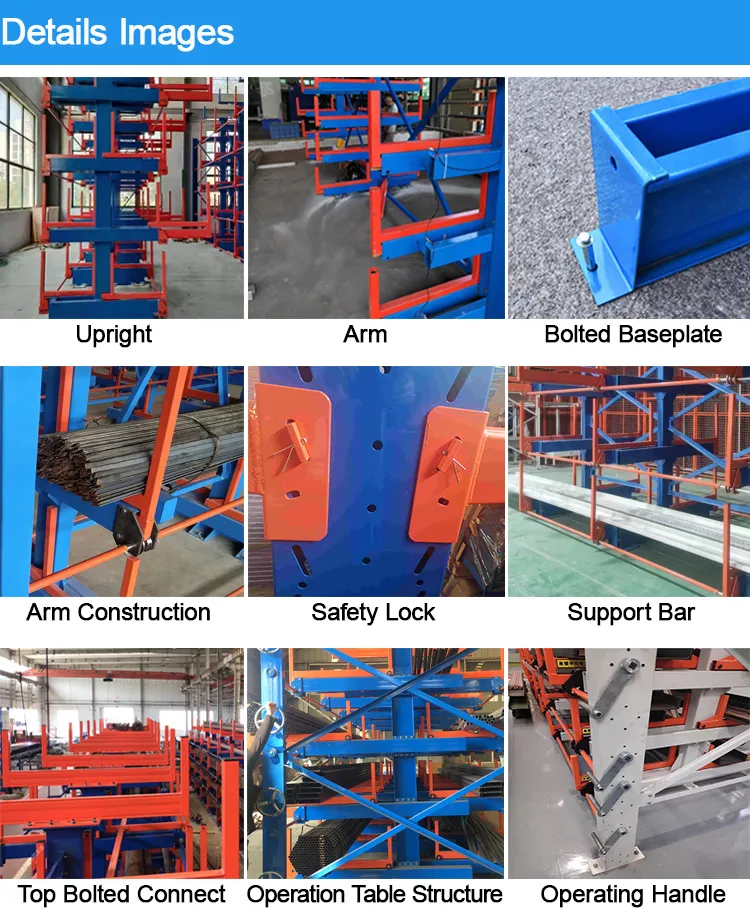

Roll out Cantilever Rack Detail

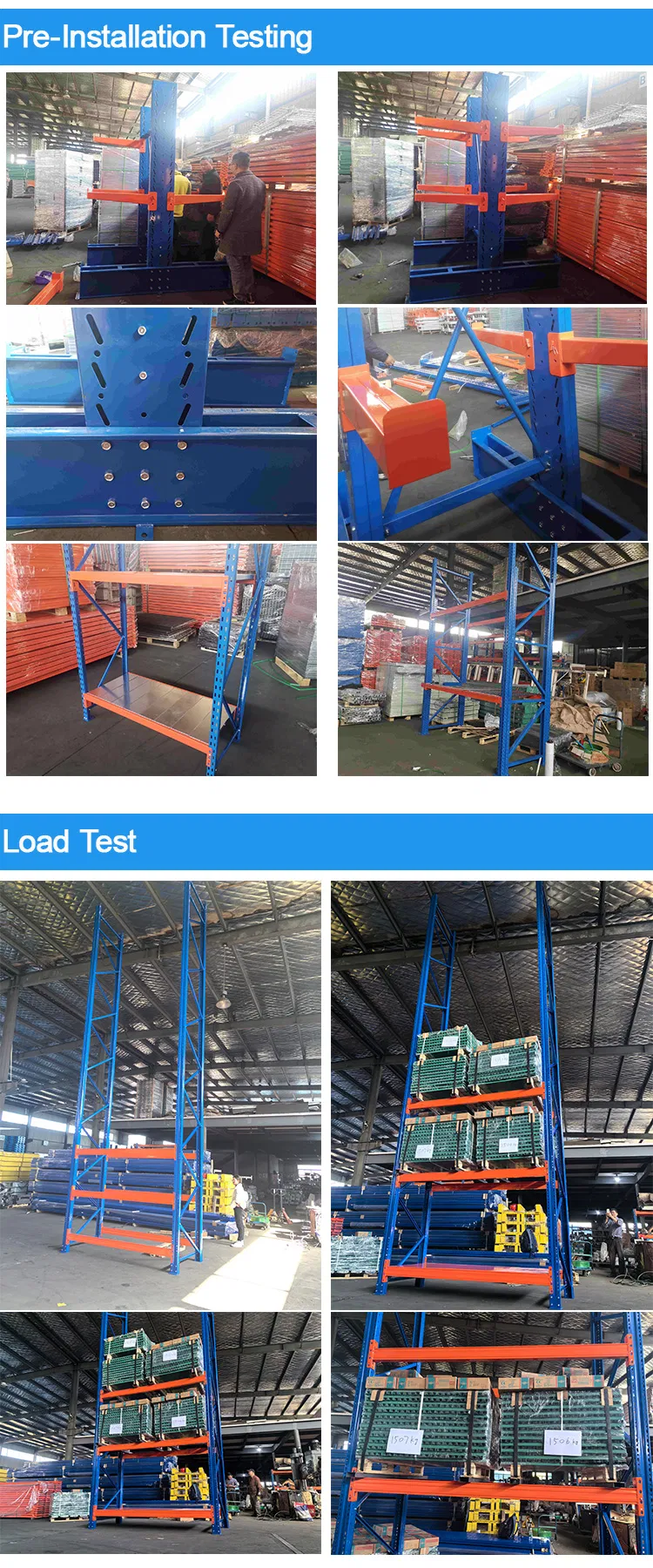

Load Test

Cantilever Rack Load Test

Safety Assurance

Safety Accessories Overview

Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

Tilted Cantilever When the weight of goods causes a downward angle shift in the cantilever, the upward angle (2°~4°) effectively prevents goods from scattering.
Cantilever Arm Ends & Base Retainers Installing retainers at the outer ends of the cantilever arms and on the base prevents goods from rolling and falling, while also safeguarding operators.
Specially Designed Cross Braces Connecting the uprights horizontally and diagonally strengthens the torsional stability of the cantilever rack.
Extended Base The base is intentionally designed longer than the cantilever arms, effectively preventing goods from tilting the overall structure when placed on the arms.
High-Strength Base Bolts Light-duty rack bases are secured with nine M16*120 bolts, while heavy-duty rack bases use four M18*290 bolts. These high-quality bolts reinforce the connection between the uprights and the base, enhancing the overall stability of the cantilever rack and preventing the risk of toppling.
Premium-Quality Bolt Fastening Grade 8.8 premium expansion bolts (M12*110) securely anchor the base to the ground.
Safety Accessories Details

Product Support & Services

Products Support Details
Free Consultation Yes, Any Questions You Can Consult With Free.
Support For Custom Yes
Free Design Yes, CAD/PDF/3D Drawing
Free Sample Available (Delivery Cost By Buyer)
3D Sample Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error
Pre-installation Yes
Capacity Test Yes, If Needed.
OEM & ODM Available
Lead Time 15-20 Days For Regular Pallet Racking, One Container
Installation Service Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed.
Maintenance Service Yes, We Submit a Free Maintenance Guide.
Repair Service Yes, We Submit Repair Services.

Rack Components

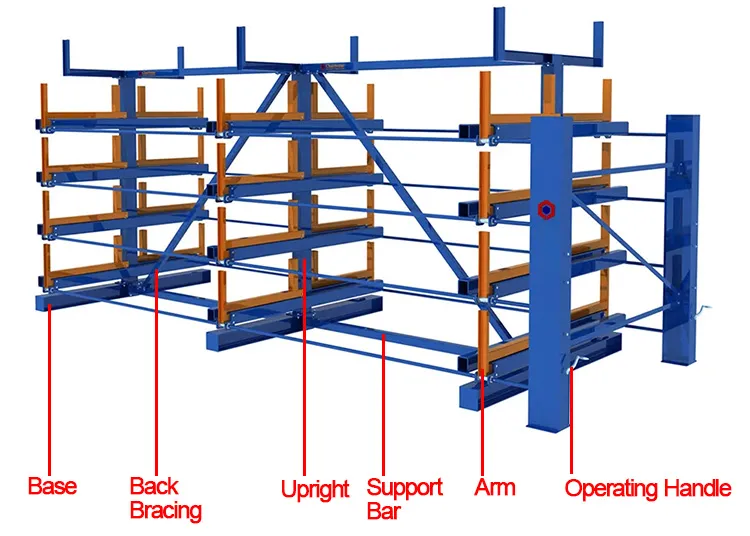

Roll out cantilever rack components

Roll out cantilever rack consists of the following key components:

Uprights
Uprights are an essential part of a cantilever storage rack system. They are installed with the bases, which makes the entire system robust. Uprights are divided into single-sided and double-sided types, made from high-quality Q235 cold-rolled steel as raw material, with a hole spacing of 100mm. The cantilever arms can be adjusted vertically based on hole spacing units.
Beams & Arms
Beams, also called arms in cantilever steel rack, act as levels for storing goods. They come in horizontal and tilted (2°~4°) types. Light-duty rack cantilever arms are embedded into the uprights, while heavy-duty rack cantilever arms require bolt connections.
Base
Base Construction Using High Load-Bearing H-Beam for Enhanced Cantilever Rack Stability in Both Vertical and Horizontal Directions.
Cross Braces
Cross braces horizontally connect the uprights, and eight forks crisscross connect the uprights, enhancing the torsion and stability of the cantilever rack.

Customized Services

Customized header bar

We support customization, such as drawing, color, package and size etc.

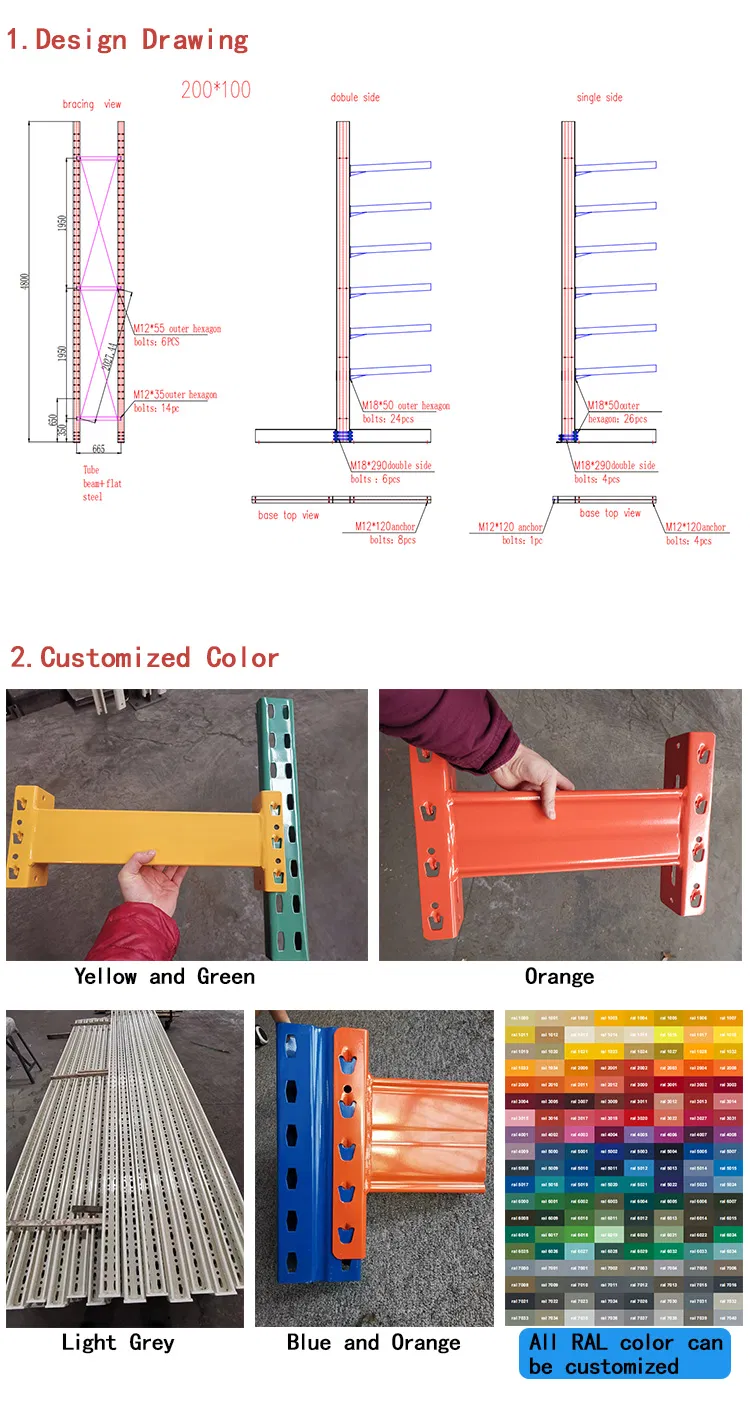

Customization options showcase

Why Choose Us

Quality inspection header

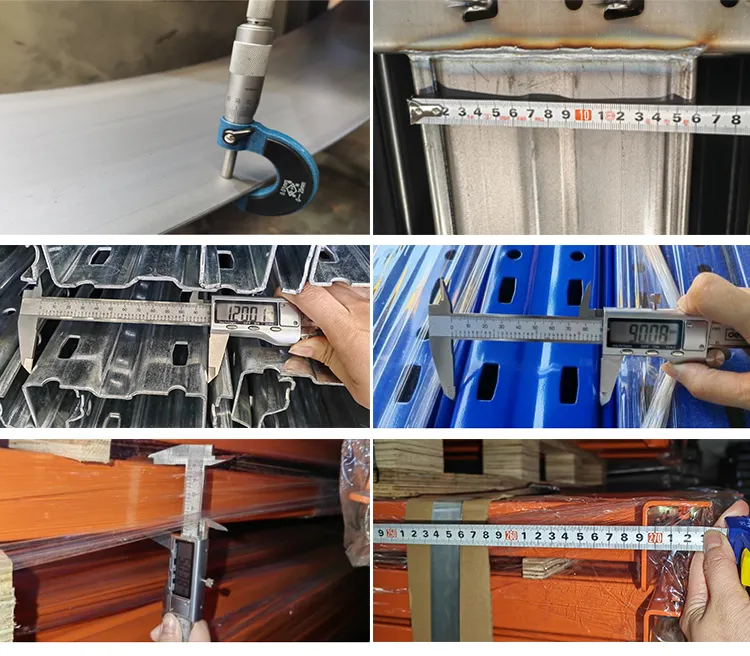

1. Strictly Racking Quality Inspection

We have a professional quality inspection team consisting of 15 people, we check the pallet racking quality for every producing step, it can guarantee the quality of your racking during processing.

Quality Inspection Team

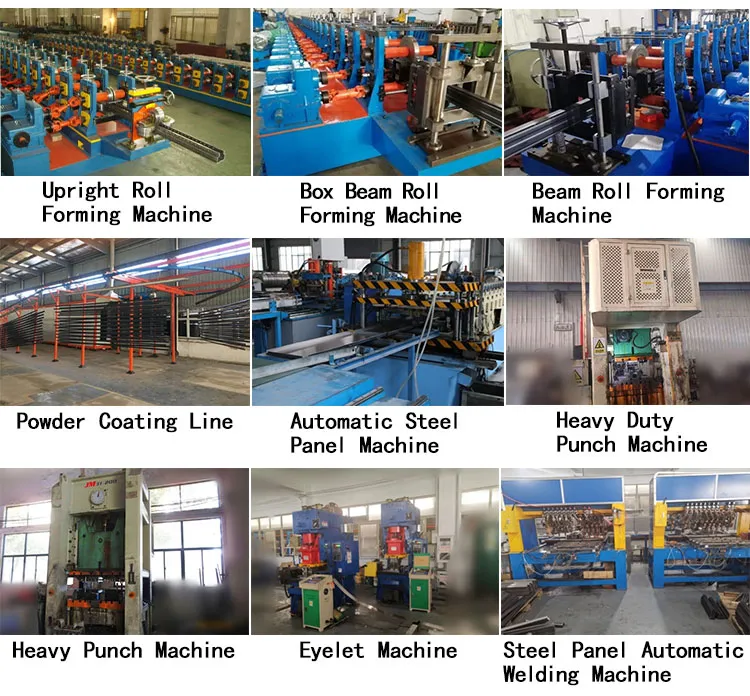

2. Advanced Production Equipment

A variety of complete equipment to make sure the delivery time and quality are within our control range.

Advanced Equipment

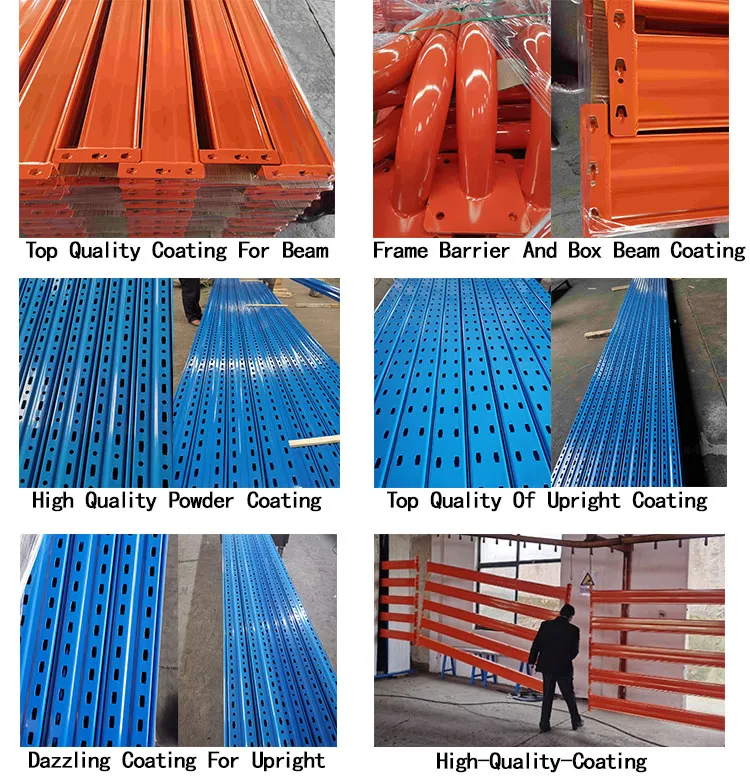

3. The Best Racking Quality of Powder Coating

We via two times powerful pickling technology to make oxidize very well and produce a layer of oxidation film on the steel surface, which can make the resin powder adsorb better on the steel. Greatly increased your racking life.

Powder Coating Process
Production details

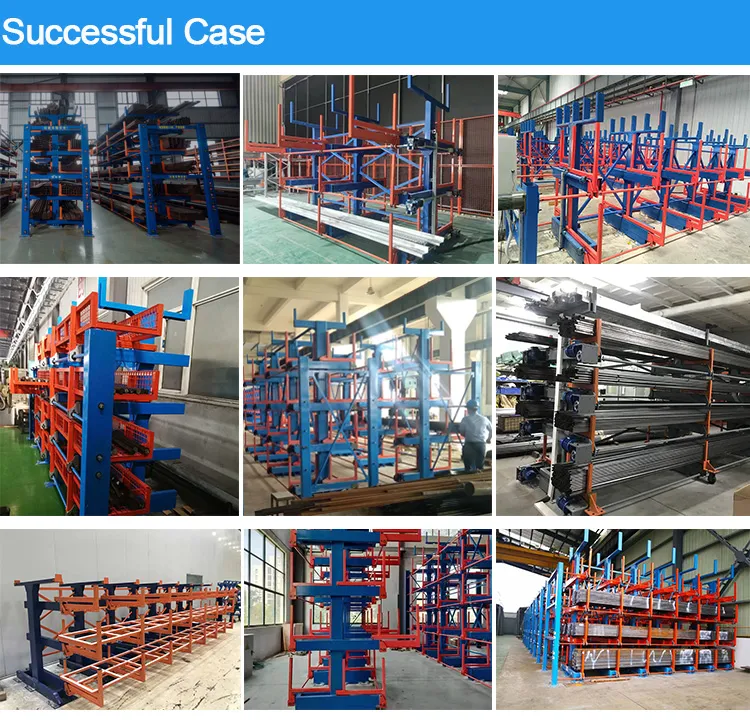

Warehouse setup

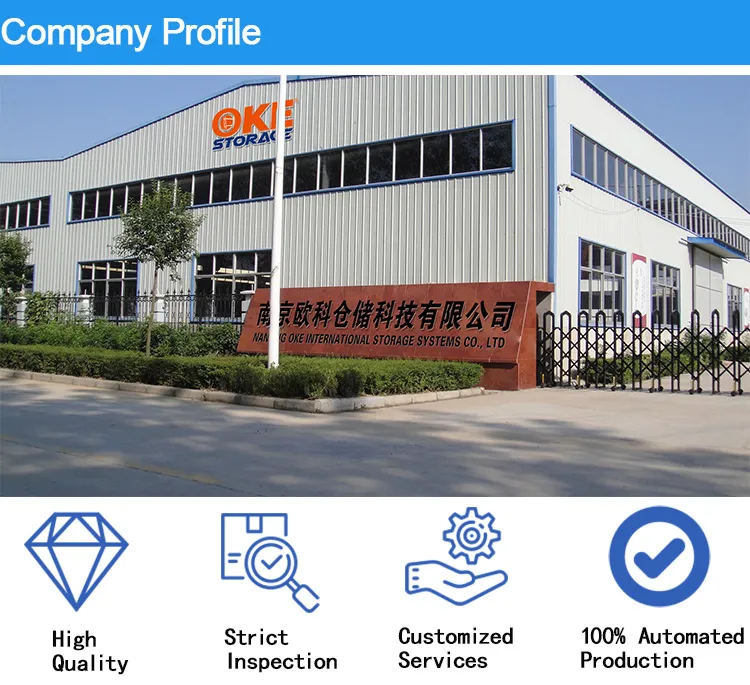

Company Profile

Company Introduction

Company Introduction:

We are dedicated to the production of racking storage, providing quality solutions for saving your storage space and storage ways. We have over 23 years of experience exporting our quality racking to over 85 countries worldwide to date. Our fully automated, state-of-the-art technology provides the preconditions for the production of the optimum racking. We also offer a 10-year warranty to cover all your racking problems in the future. Most importantly, we always put the customer first and provide the best possible service.

Factory Overview
Machine detail
Production floor

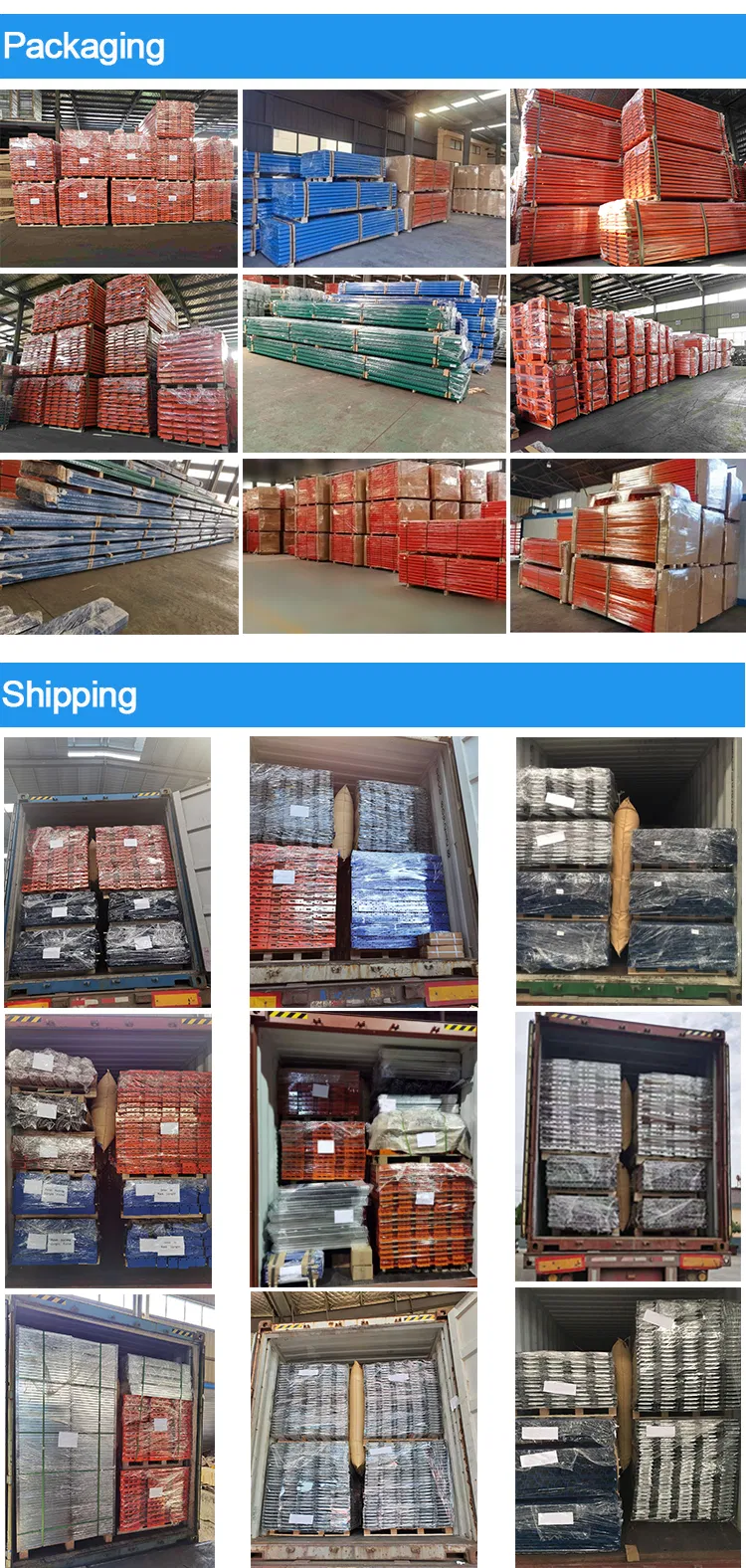

Packaging and shipping

Frequently Asked Questions

FAQ header
Q1. How durable is the Roll-Out Cantilever Rack?
It is built to last, constructed from high-quality Q235 steel, and engineered for maximum durability even in demanding industrial environments.
Q2: How Does Roll Out Cantilever Rack Optimize Space Utilization?
Our Cantilever Rack's design allows for the efficient use of vertical and horizontal space, maximizing storage density while maintaining easy access to stored materials.
Q3: Is the Roll Out Cantilever Rack Easy To Install And Maintain?
Yes, it is made to be simple to install and requires little maintenance, guaranteeing hassle-free operating and long-term dependability.
Q4: How does Roll-Out Cantilever Rack Improve Workplace Safety?
It promotes workplace safety by providing secure storage for heavy and cumbersome items, reducing the risk of accidents and injuries associated with manual handling.
Q5: Can Roll Out Cantilever Rack Help Businesses Increase Productivity?
Yes, this product enhances productivity by streamlining material handling processes, reducing downtime, and improving workflow efficiency.
Q6: Can you assist with compliance and regulatory requirements?
Yes, our team is knowledgeable about industry regulations and can assist you with ensuring compliance and meeting regulatory requirements for your storage solution.
