Explore our leading precision-manufactured industrial high-bay racks, designed for optimal vertical space utilization and maximum load capacity.

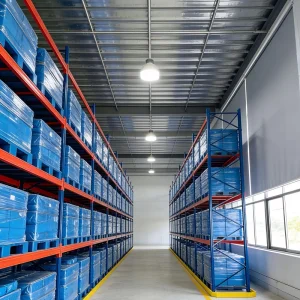

Global supply chains are navigating an era of unprecedented industrial real estate costs and space constraints. The transition from traditional selective pallet racking to Very Narrow Aisle (VNA) Storage Racks represents a critical evolution for high-bay warehousing, cold chain logistics, and complex distribution centers. Unlike standard configuration racks which require aisle widths of 3.2 to 4.5 meters, VNA configurations condense the working aisle down to a minimal footprint of 1.5 to 1.8 meters. This physical optimization increases footprint density by up to 50% while allowing direct, unfiltered 100% selectivity of individual pallets.
By leveraging dedicated high-reach articulating swing-reach trucks or automated stacker cranes (ASRS integrations), VNA racks extend the storage vertical limit, scaling heights of up to 18 meters. Every millimeter of spatial capacity is mobilized, yielding a quantum leap in volumetric efficiency.
VNA systems are heavily dependent on precision vehicle tracking. Because tolerances within the narrow aisles are measured in centimeters, mechanical or electromagnetic guidance mechanisms are integrated at the base of the uprights. We manufacture heavy-section steel ground profile rails (available in low-profile angle-iron configurations or wrap-around structural C-channels) which serve as physical guard zones, absorbing kinetic impacts from specialized forklifts.
| VNA System Parameter | Standard Specification | Industrial High-Bay Option |
|---|---|---|
| Clear Aisle Width | 1,500 mm - 1,800 mm | Down to 1,400 mm (AGV Optimized) | Max Frame Height | Up to 12,000 mm | Custom Engineered to 18,000 mm |
| Load Capacity (per level) | 1,000 kg - 2,500 kg | Up to 4,000 kg (Reinforced Structures) |
| Deflection Limit (L/H) | L/200 (Standard) | L/300 or L/500 (High-Precision AS/RS) |
| Surface Treatment | Electrostatic Powder Coated | Hot-Dip Galvanized (Cold Room/Outdoor) |
The global industrial storage landscape is undergoing structural transformations. Factors such as rapid e-commerce maturity, localized pharmaceutical logistics, and cold-storage operations are driving logistics managers away from sprawl-based footprints toward high-density configurations. Supply chain decision-makers in North America, Western Europe, and Asia-Pacific are prioritizing structural reliability, code compliance (RMI, EN 15512, AS4084-2012), and long-term asset lifecycle values.
As warehouse properties appreciate globally, the cost of installing VNA racking is quickly offset by the savings realized from not expanding physical footprints. The business case is compelling: VNA systems decrease structural footprint overheads, reduce internal material transit times, and significantly lower energy expenditures per pallet location, particularly in temperature-controlled spaces.
Guangzhou LogiSteel Racking Co., Ltd. deploys advanced automated tooling, robotic welding, and automated rolling lines to ensure zero-defect fabrication of VNA systems.
Procuring VNA systems directly from our Guangzhou facility offers global buyers a combination of supply chain flexibility, strict quality control, and scale economies. Guided by Industry 4.0 manufacturing processes, we deploy CNC tube-cutting saws, heavy-duty tube-punching lines, hydraulic shearing assets, precision brake presses, and robotic welding arms. These systems run in concert to minimize structural dimensional variances across production batches.
A major risk with high-bay VNA racks is cumulative column twist and lean. A variance of even a few millimeters at the base is magnified significantly at a height of 15 meters, risking collision with materials handling equipment. Our production lines use dedicated punching jigs and automated forming lines to maintain structural tolerances well within FEM limits. This guarantees clean, repeatable, and fast site assembly.
VNA rack systems are not one-size-fits-all installations. Customization is dictated by localized building footprints, local fire safety codes, environmental conditions, and seismic loading requirements. Our engineers customize every configuration to meet specific needs:
Designed for fast access, maximizing SKU count, and integrating with automated conveyor networks and mezzanine structures.
Leverages clean, corrosion-resistant finishes (including customized stainless steel configurations) to maintain strict hygiene standards inside walk-in freezer environments.
Features structural configurations designed to hold dense payloads like sheet metals, motor parts, and tooling dies.
Purchasing racking direct from China is a highly cost-effective strategy, but requires careful planning to ensure compatibility. Buyers should keep the following factors in mind during the procurement process:
Answers to common structural questions from warehouse managers, procurement teams, and structural engineers.

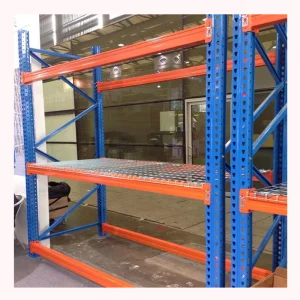

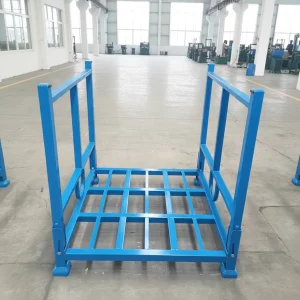

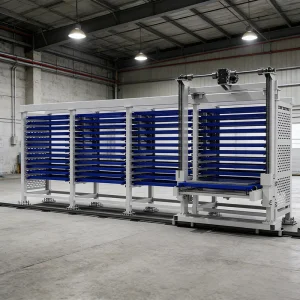

Discover our wider range of storage options, including adjustable tire racks, automatic storage systems, and dynamic drive-in structures.
Guangzhou LogiSteel Racking Co., Ltd. is a professional manufacturer specializing in the design, production, sales, and installation of various types of storage racking systems, display stands, and supermarket equipment. Over the years, LogiSteel has developed into a reliable supplier in the material handling and retail display industry.
Our factory covers an area of more than 15,000 square meters and employs over 200 skilled workers and technical staff. With strong technical capabilities and advanced production equipment—including tube cutting saws, tube punching machines, guillotine shears, hydraulic punching machines, plate bending machines, and spot welding machines—we ensure high efficiency and precision throughout the manufacturing process.
Our product range includes pallet racking systems, selective warehouse racks, mezzanine floors, supermarket shelving systems, gondola shelving, and various customized display stands. These products are widely used in warehouses, logistics centers, supermarkets, retail stores, and industrial facilities.
Guangzhou LogiSteel Racking Co., Ltd. has built a strong global presence, with partners and distributors across Oceania, Asia, Europe, South America, and the Middle East. Our annual revenue exceeds 15 million USD, reflecting our steady growth and strong market competitiveness.
We are supported by a professional sales team and experienced design engineers who provide comprehensive support from project consultation to after-sales service. We offer customized solutions tailored to different storage needs, ensuring optimal space utilization and operational efficiency. All customer inquiries are responded to within 24 hours, and on-site technical support can be arranged when necessary.
Our products are certified with CE standards, ensuring compliance with international quality and safety requirements. Guided by the principle of "Best Quality, Durable Structure, Innovative Design, and Customer Satisfaction," we are committed to continuous improvement and technological innovation.
Looking ahead, Guangzhou LogiSteel Racking Co., Ltd. aims to become a globally recognized leader in storage and racking solutions, delivering reliable, efficient, and cost-effective systems to customers worldwide.
