The drawer-type plate storage system stores aluminum plates, steel plates, and wooden boards flat in drawers. The applicable plate size is 1500*3000 mm. Each rack consists of 5-10 drawers, allowing for easy classification and separate storage of different specifications. This method reduces the space occupied by traditional storage systems, which can waste valuable workshop space. The multi-layer drawer design increases storage capacity by 10 times while reducing the footprint by 10 times.

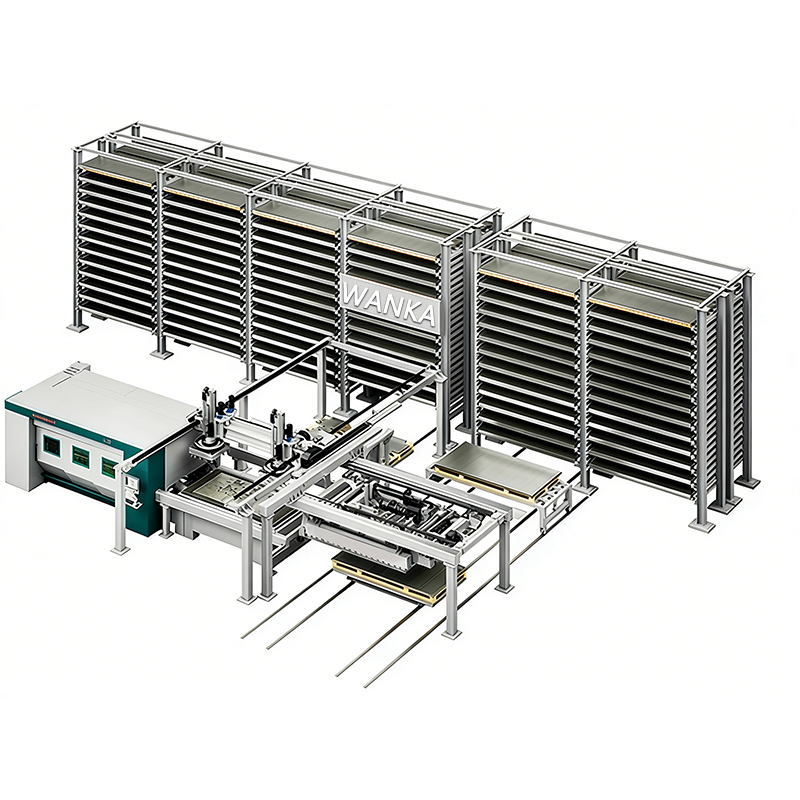

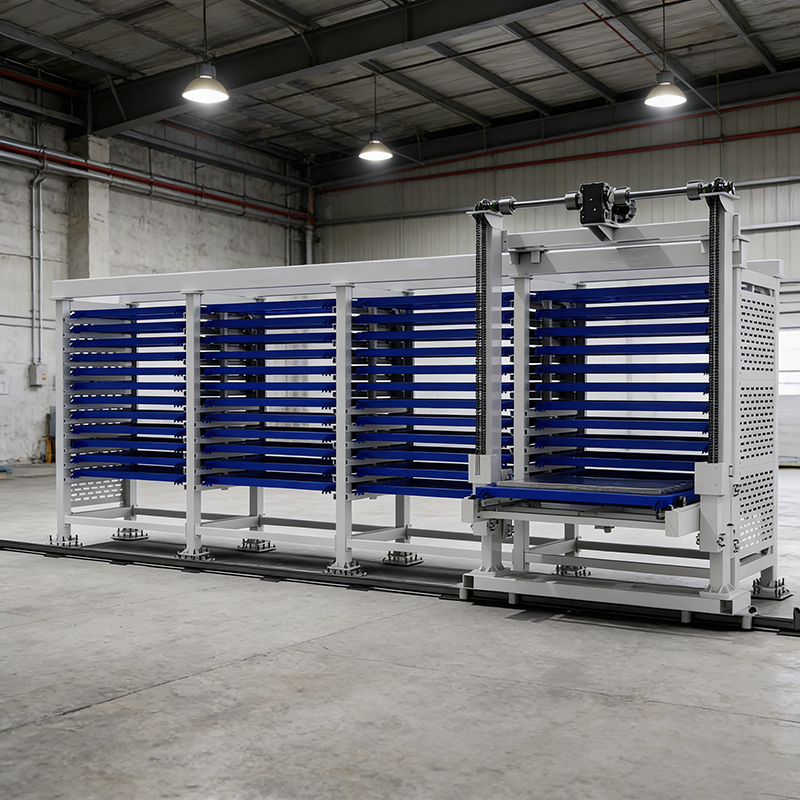

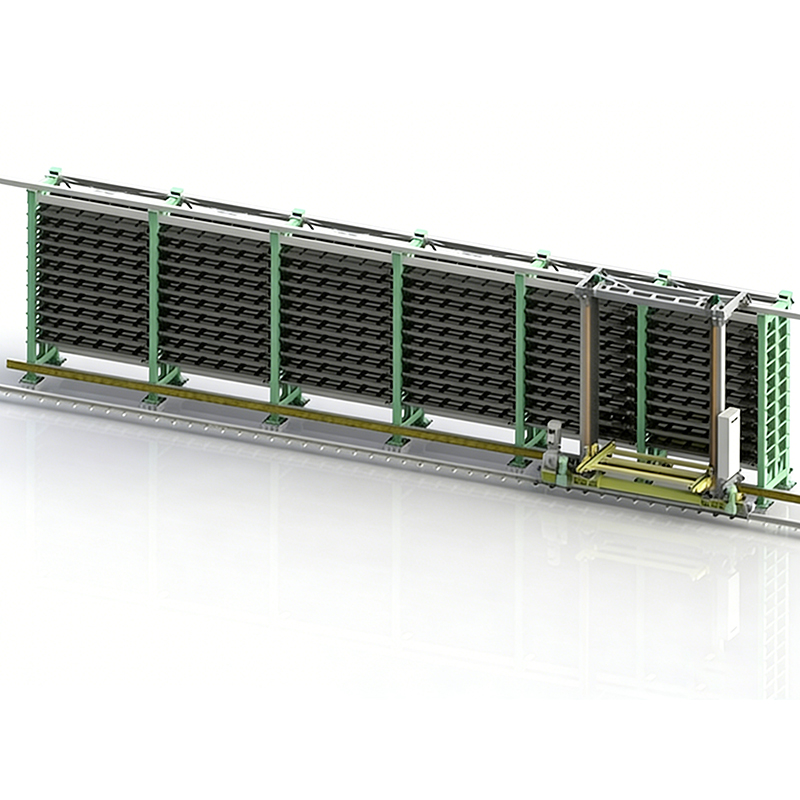

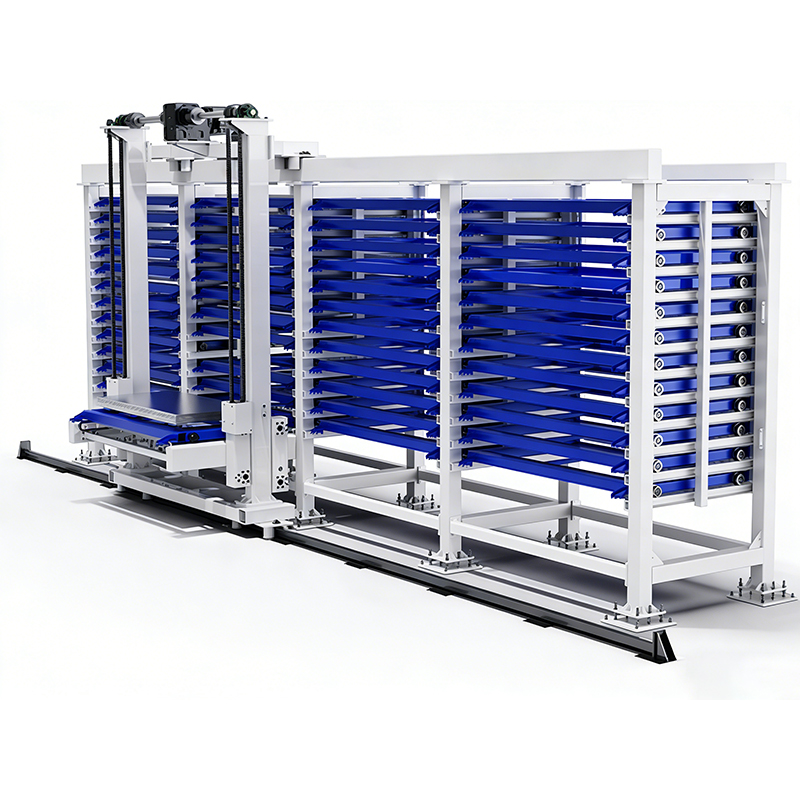

This intelligent 3D panel storage ASRS warehouse is a fully automated vertical storage system designed for sheet materials, boards, panels and flat workpieces. Adopting advanced stacker crane, PLC control system and intelligent warehouse management software, it realizes automatic storage, retrieval, positioning, handling and real-time inventory management.
It is widely used in woodworking factories, furniture manufacturing, sheet metal processing, construction material production, panel processing lines and modern intelligent workshops, providing a high-density, space-saving and efficient automated storage solution.

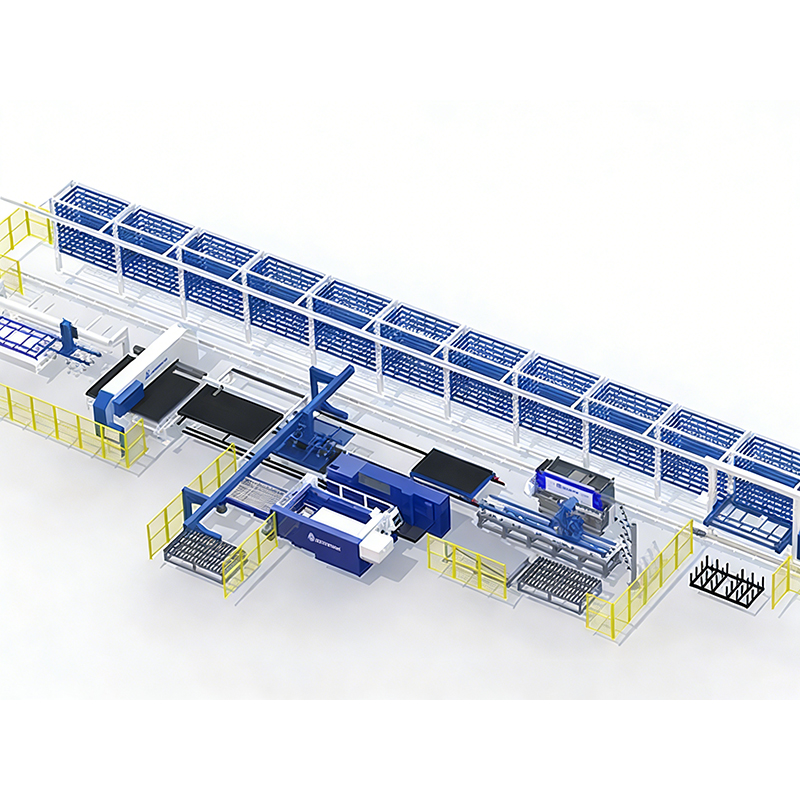

Product Specifications
Specification
Details
Size Options
3015/4015/4020/6015/6020/6025mm
Number of Floors
8-13 (customizable)
Load per Layer
3/5 Ton (customizable)
Mode of Movement
Linear guide rail + chain
Transmission Mode
Chain drive
Vertical Lifting Speed
9m/min
Inlet and Outlet Speed
12m/min
Plate Support
Optional selection
Motor Power
5.5kw
Counterweight
1.5/2.5 Ton (Reduces motor load to extend equipment lifespan)

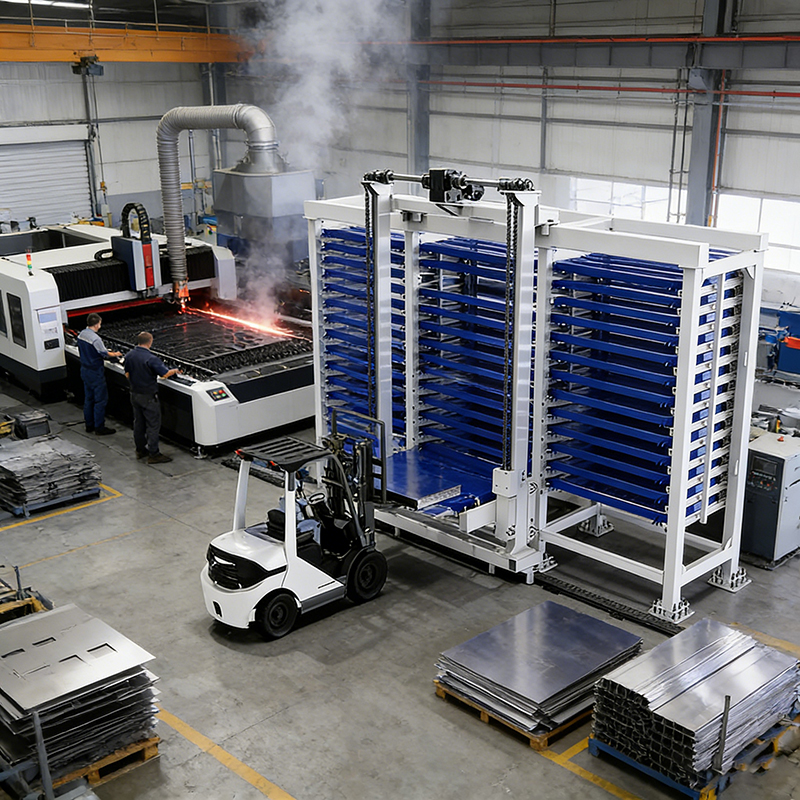

Features at a Glance
Intelligent 3D Panel Storage ASRS Warehouse
High Density Vertical Automated Storage System
PLC Controlled Automatic Access & Retrieval
Customized Industrial ASRS Solution
Optimized for Woodworking, Furniture & Sheet Metal Industry

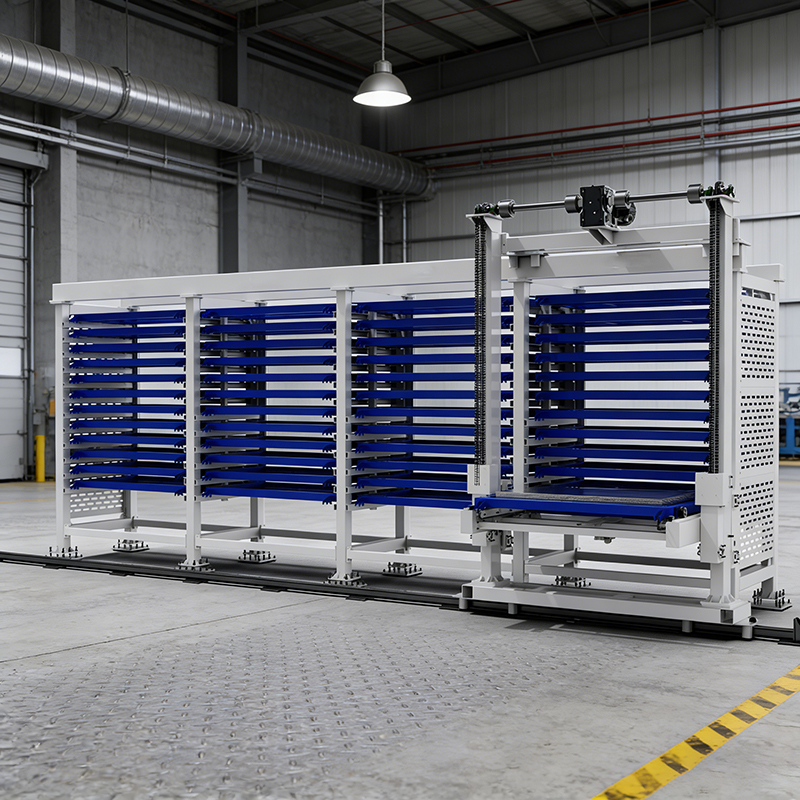

Protection of Materials

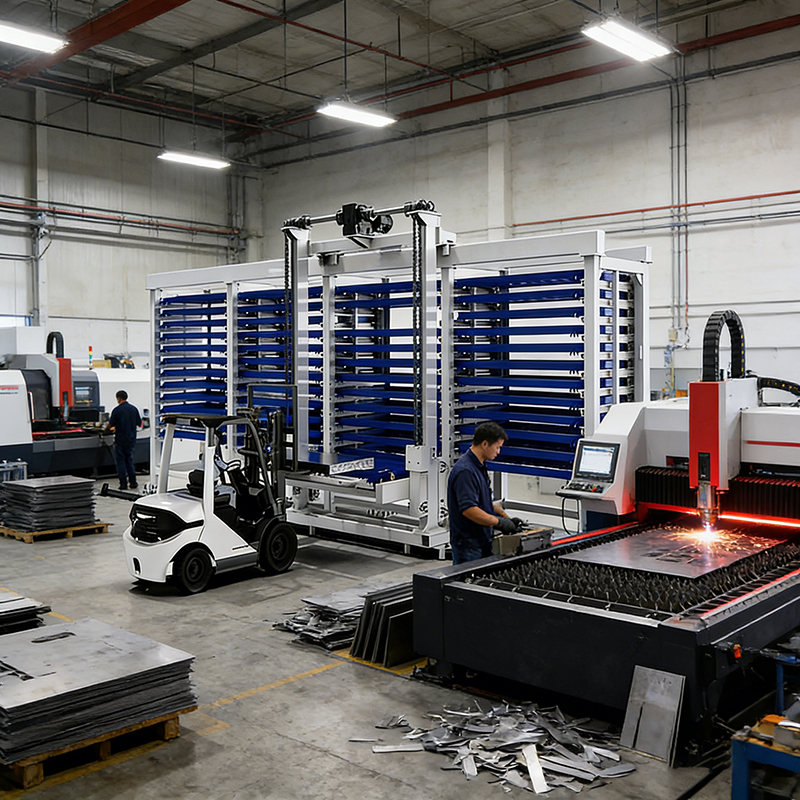

Safe and Efficient

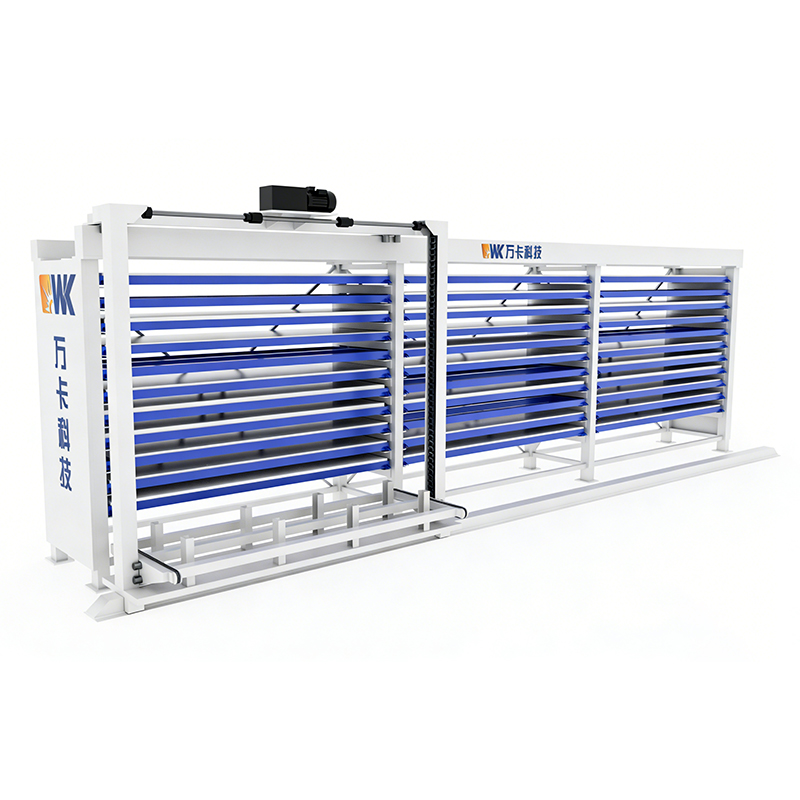

Heavy Load Bearing
Maximize Your Storage Efficiency with Our Advanced Vertical Storage System
Our innovative storage solution allows you to fully utilize your warehouse's vertical space, dramatically increasing storage capacity for sheets and optimizing space efficiency in every square foot. The drawer-style design makes organizing and storing materials a breeze, allowing for easy classification and quick retrieval—saving you time and effort when you need it most.
Additionally, the pallet sleepers ensure that forklifts can precisely place or remove sheet metal from the shelves, enhancing the accuracy and speed of goods handling. This means less downtime, fewer errors, and a more streamlined workflow for your warehouse operations. Perfect for businesses looking to maximize storage potential, improve operational efficiency, and boost overall productivity, our system is a game-changer in modern warehousing.
Our Advantages
Boasting a long history of development, our company is a high-tech enterprise integrating the research and development, production, sales, installation, and service of storage machinery. Specializing in providing storage services for raw materials such as metal plates and tubes, we also tailor various integrated solutions for customers.

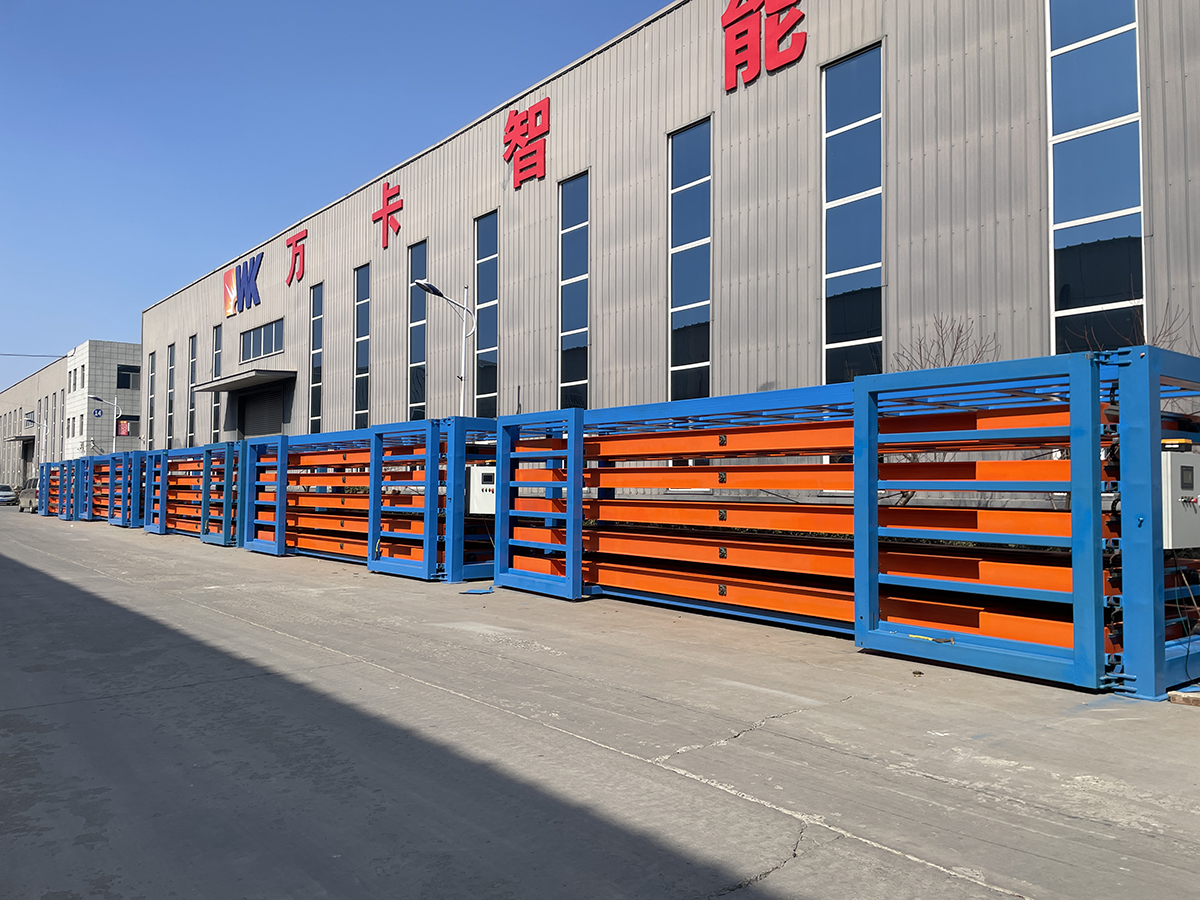

We operate a modern standard factory building spanning 20,000 square meters, employing a professional research and design team. Additionally, we have a dedicated service team that offers customized services integrating production, delivery, and installation guidance. As an industry leader, we provide comprehensive after-sales services to ensure a worry-free user experience.
Production & Testing Equipment
We are equipped with advanced production and testing equipment, which is the guarantee of product quality and production efficiency, proving our status as a professional manufacturer.

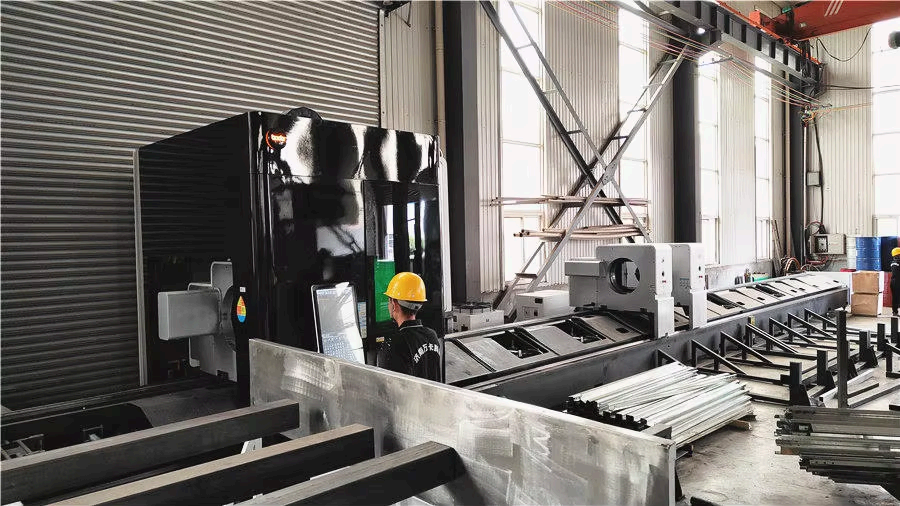

Laser Tube Cutting Machine

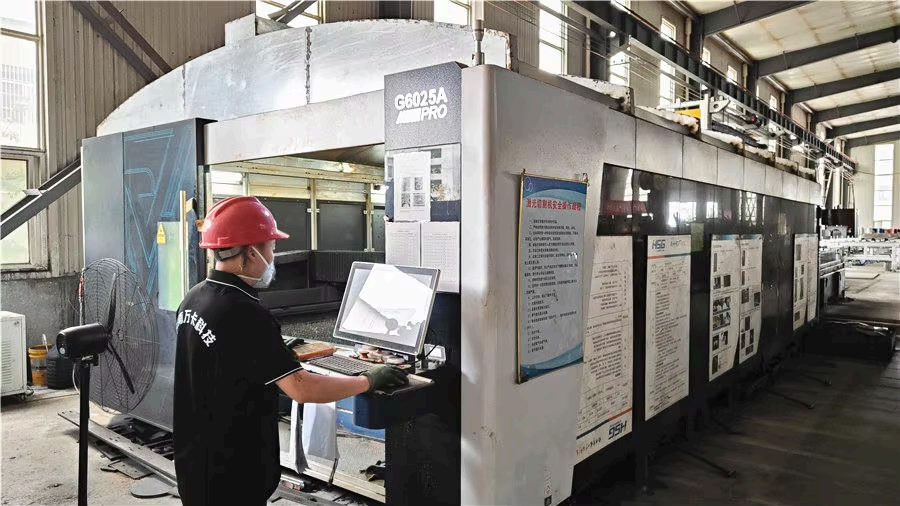

Laser Cutting Machine

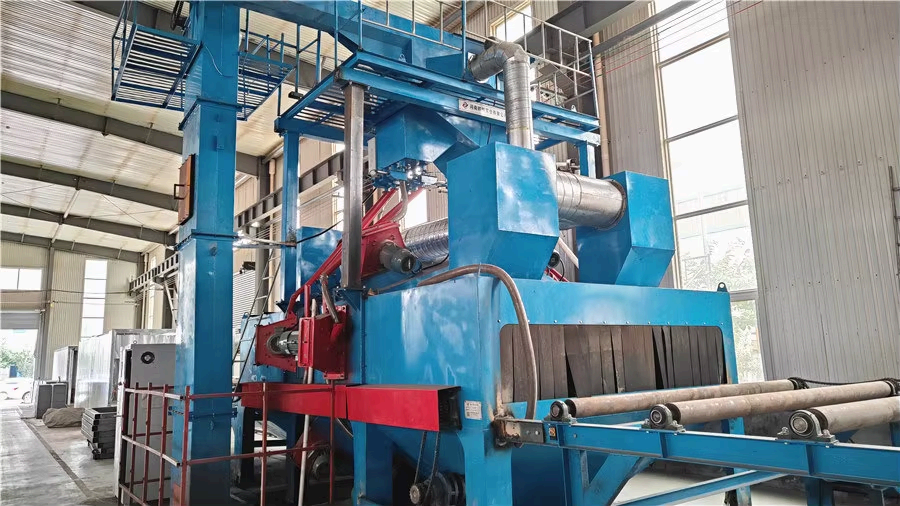

Shot Blasting Machine

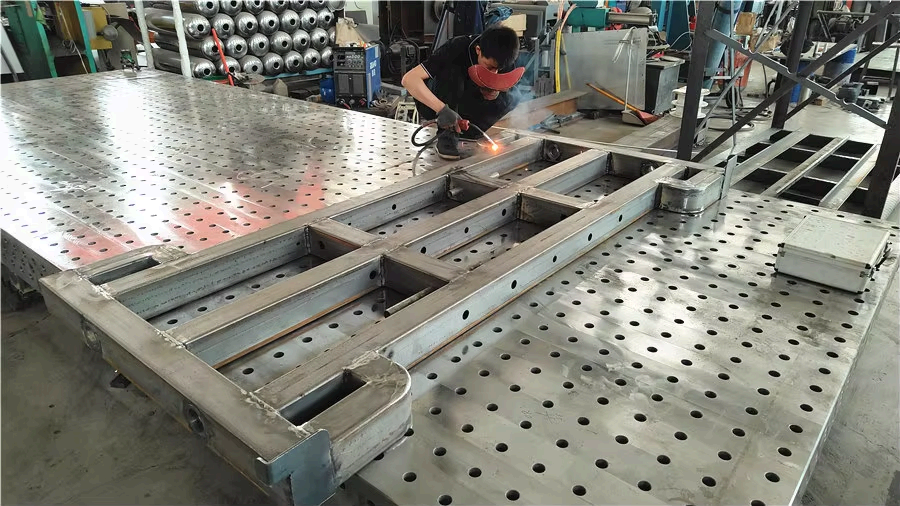

Welding Platform

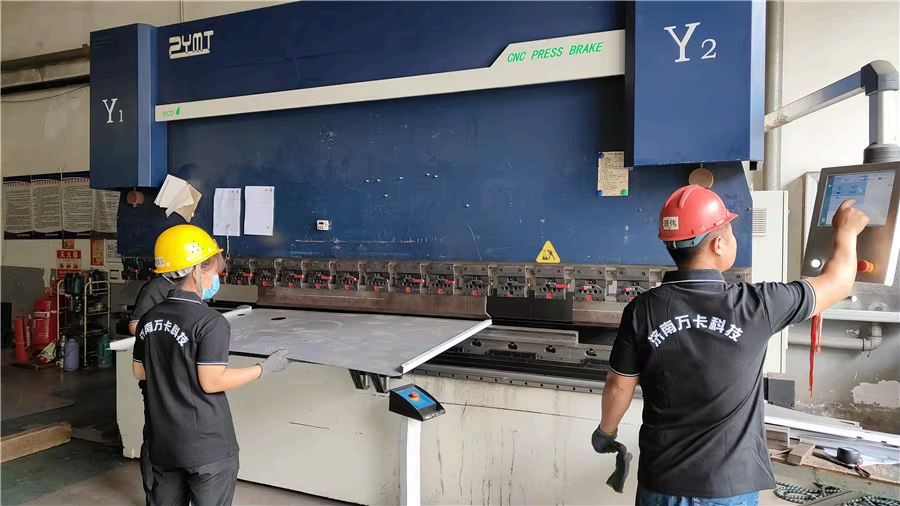

CNC Bending Machine

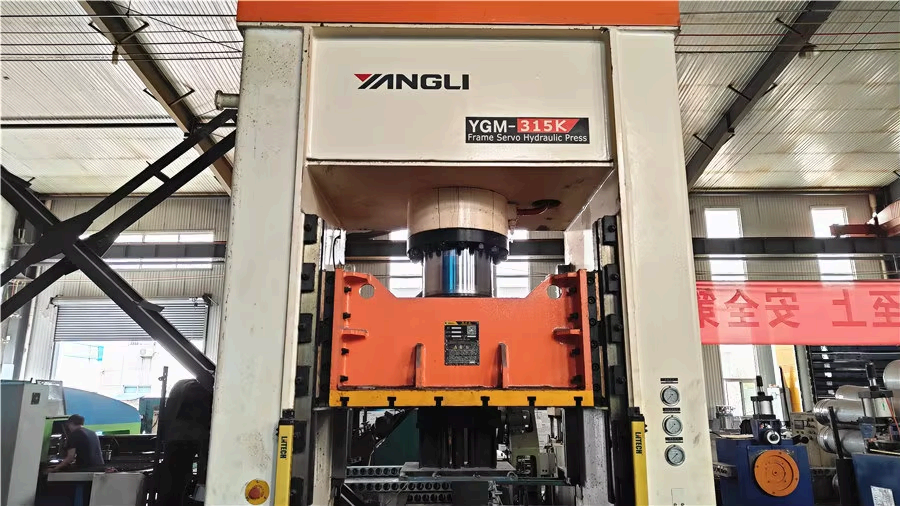

Press Machine
Strict Quality Control - Zero Defect Commitment:
Our experienced quality inspectors are equipped with advanced testing equipment to provide a professional quality guarantee at every stage of production.
Sales and Service Network
Our products have passed a number of international authoritative certifications (including ISO 9001, ISO 14001, and CE), fully meeting the quality and safety requirements of different global markets, providing a strong guarantee for entry.
We supply complete certification documents and test reports according to your regional market needs, ensuring import and compliance procedures run smoothly.
Similar Products

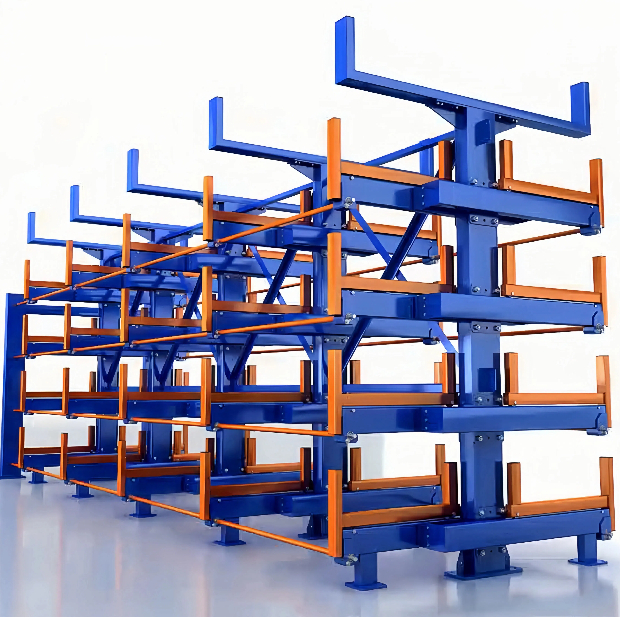

Telescopic Cantilever Rack

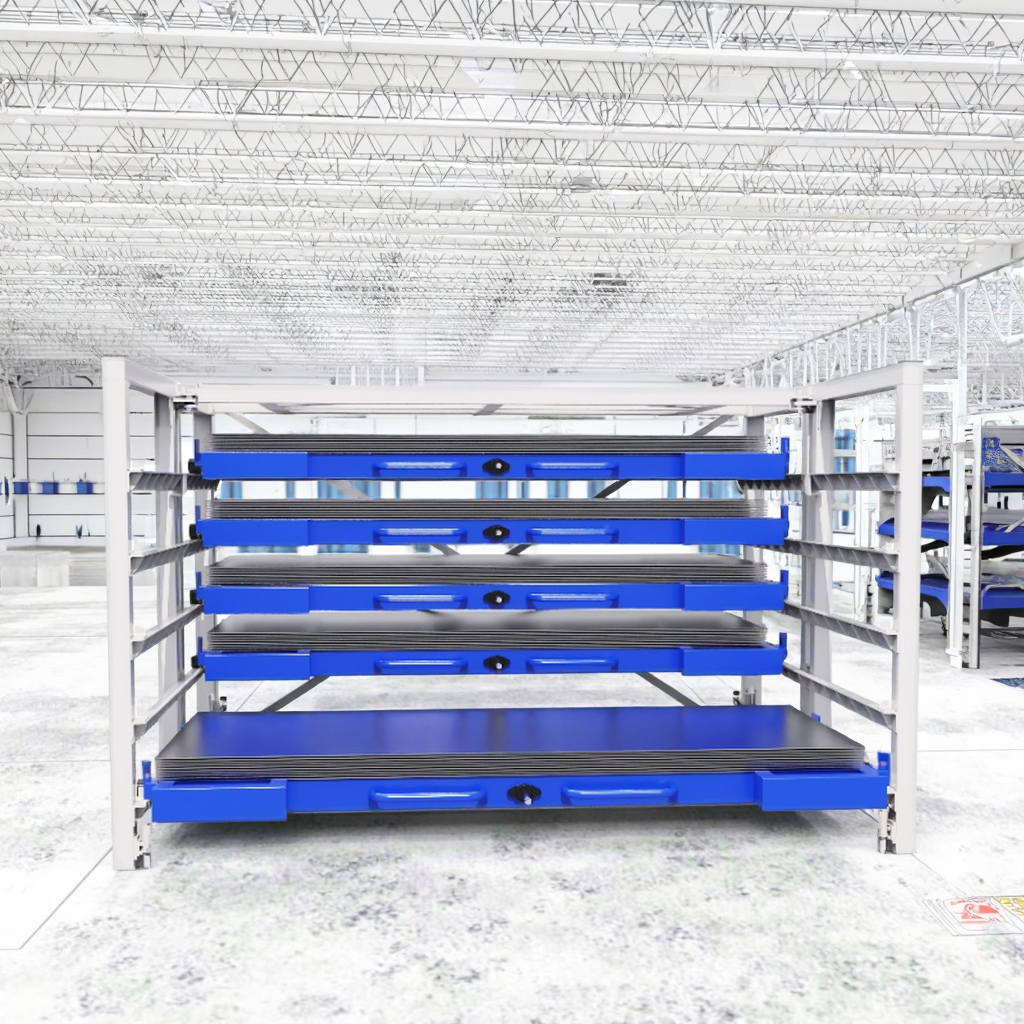

Intelligent Vertical Plate Storage System

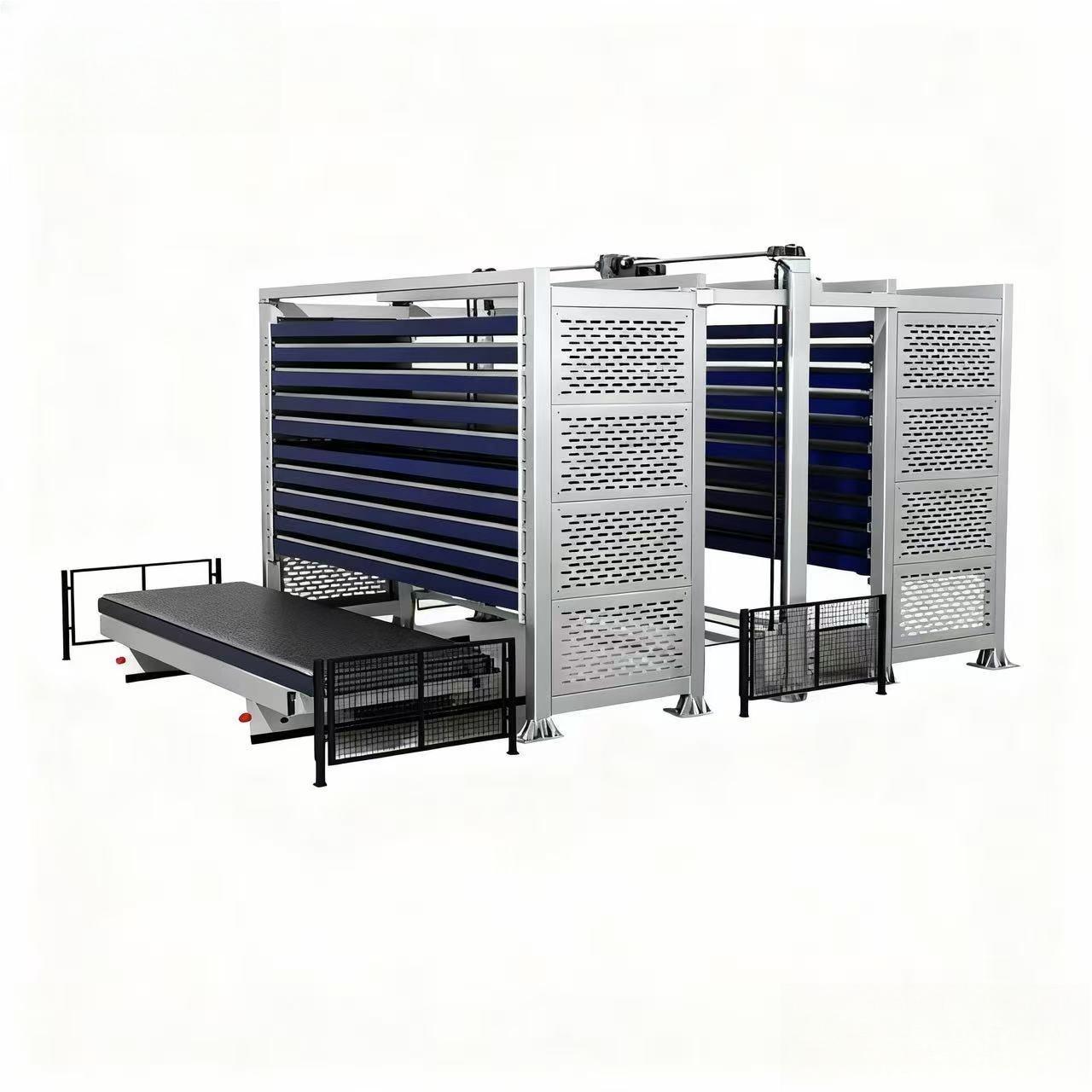

Modular Vertical Plate Storage System
Frequently Asked Questions
Q1: How can I proceed with procurement?
You can reach out to our technical staff directly. We will provide a suitable technical solution and quotation based on your required parameters.
Q2: How do I specify the exact storage shelves I need?
Please provide details regarding the materials you intend to store, including material dimensions, number of storage levels, and any specific load requirements. Our engineering team will then design a tailored solution.
Q3: Do you support automatic loading arms or integrated storage-loading systems?
Yes. Loading and unloading integration requires matching the table size of your cutting system. We also require details on your desired configuration: exchange platform, loading rack, or vertical storage integration.
Q4: Do you offer on-site installation and testing services?
Yes, our technical team is available to assist with onsite assembly, deployment, and testing until standard operations are achieved. We have successfully served projects in the United States, Russia, South Korea, Qatar, Egypt, Mexico, South Africa, and other locations globally.
Q5: How do you guarantee the quality and safety of the storage units?
With a dedicated team of over 50 technical and mechanical engineers, we apply rigorous ISO 9001 quality standards and maintain CE compliance. All equipment undergoes load testing prior to factory dispatch to ensure long-term structural integrity and load-bearing safety.
Q6: Can we inspect your manufacturing facilities?
Yes, we support remote video inspections of our production plants and welcome on-site factory visits for thorough structural and assembly process assessments.
