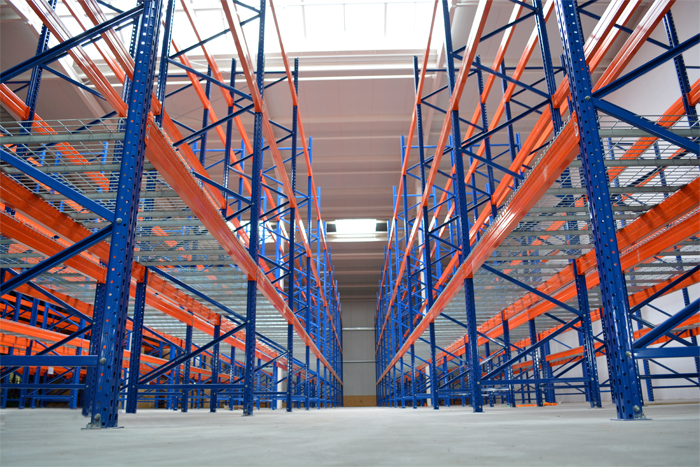

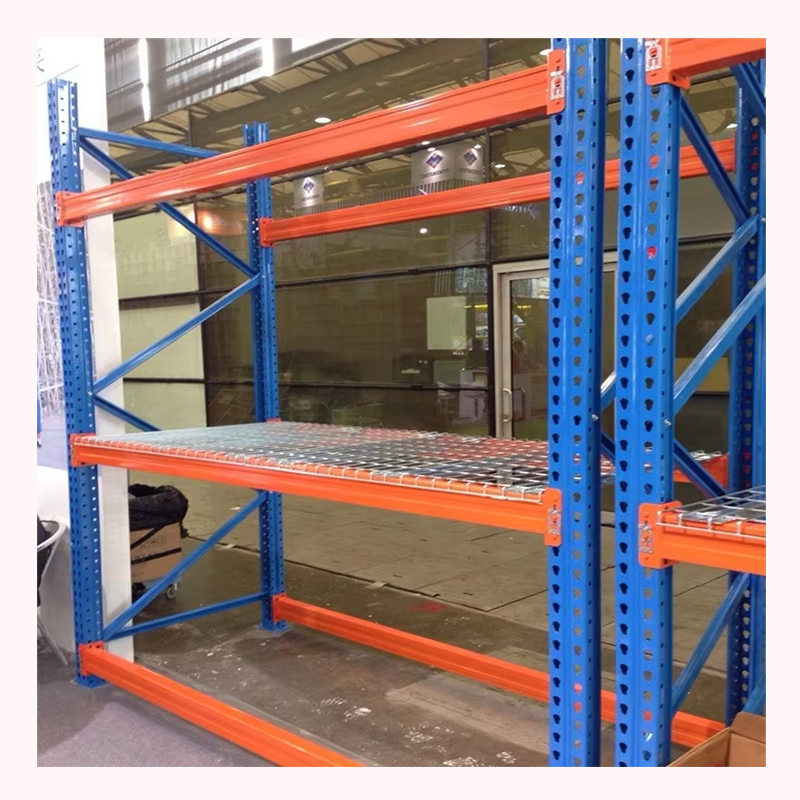

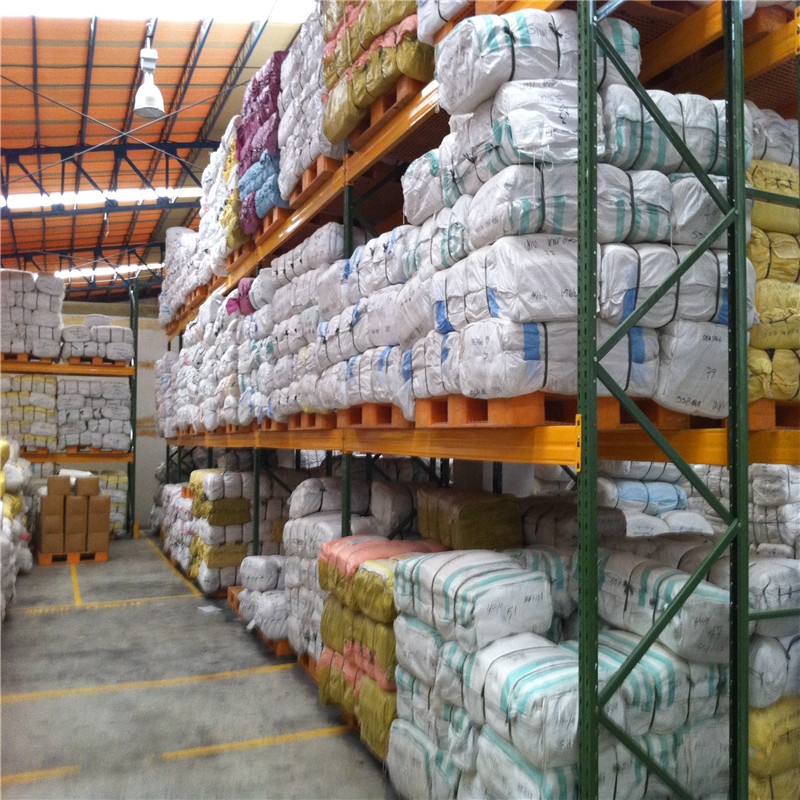

Heavy Duty Warehouse Storage Industrial Shelf Rack Metal Shelving With Steel Deck To Storage

Product Description

Pallet Rack Overview
Pallet Rack Details
Metal Pallet Rack Specifications
1. Style: Pallet style, easy installation and adjustable.
2. Certification: CE, ISO9001, TUV, SGS
3. Regular size/unit: (L) 2,700 x (W) 1,050 x (H) 5,025mm, 4 levels loading, Loading: 2500kg/level
4. Customized sizes accepted: Yes
5. Adjustable size: 75mm/50.8mm
6. Standard color: Blue, orange, green, red, grey
7. Special color available: Yes
8. MOQ: 10 units
9. Delivery time: 7 - 15 days for 2*40' containers

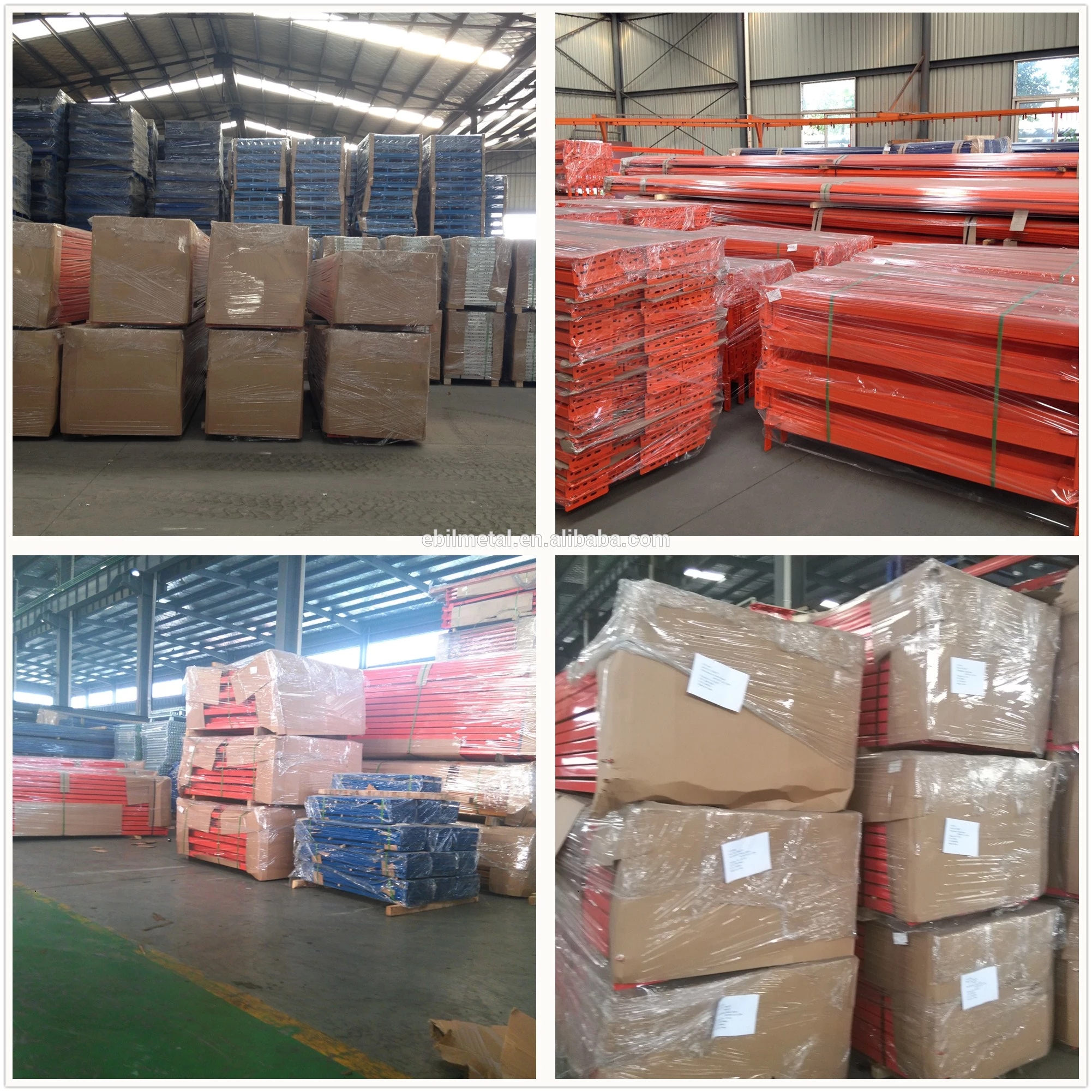

10. Standard exporting package: Metal strip, film, paper board and master carton.
Advantages
  • Low MOQ: Meeting actual small requests;
  • OEM Acceptable: We can produce your design;
  • Good service: We treat clients as friends;
  • Good quality: We have strict quality control system. Good reputation in the market;
  • Fast delivery: Scientific production arrangement to ensure the fast delivery.
  • Service life over 20 years; 6-year warranty.
Detailed Advantages
1 Industry-Grade Load Adaptability

Customizable load specs for diverse industries: 1.5-3 tons/layer for automotive/aerospace (heavy components), 0.5-1 ton/layer for food/cosmetics (light goods). The "one industry, one load" design avoids cost waste from excessive load or risks from insufficient bearing.

2 Anti-Corrosion & Rust-Proof Technology

Dual protection: multi-layer zinc-aluminum alloy coating + sealed spray coating. Withstands 90% humidity and weak acid-base corrosion, extending service life by 3x+. Ideal for chemical, food cold chain, and aquatic processing warehouses.

3 Modular Flexible Combination

Fully modular "columns + beams + laminates" design. Height adjustable every 50mm; adjust laminate quantity/channel width freely. Boosts e-commerce peak-season storage by 30% or widens off-season picking channels. Fits various pallets (1200*1000mm, etc.) for manufacturing.

4 Customized Safety Details

For pharma/medical: electronic weighing laminates (overload alarm), anti-fall baffles + limit buckles, 8-grade anti-seismic anchor bolt structure. Optional anti-static coating for electronics.

5 Whole-Life Cycle Cost Optimization

Uses Q355B steel (20% less consumption, higher bearing); replaceable parts (5% of total cost). Cuts initial purchase by 15% for 3PL/retail; annual maintenance ≤2% of total price, high ROI.

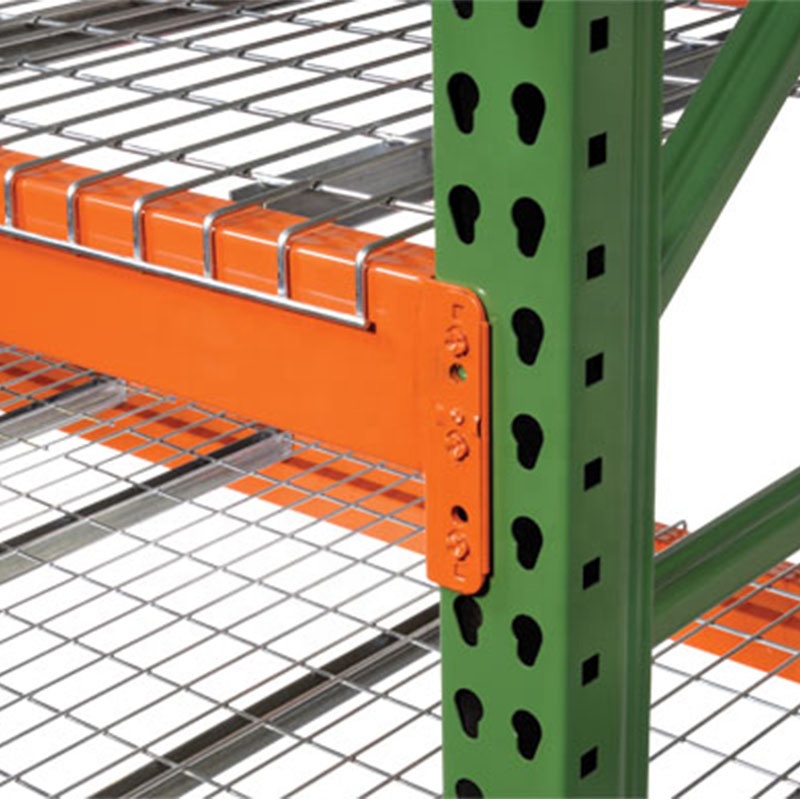

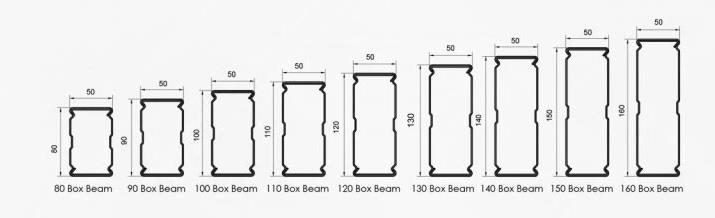

Structural Details

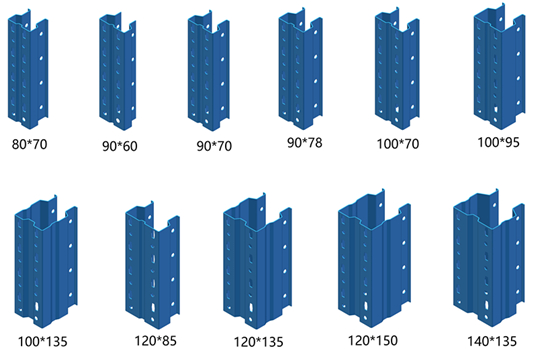

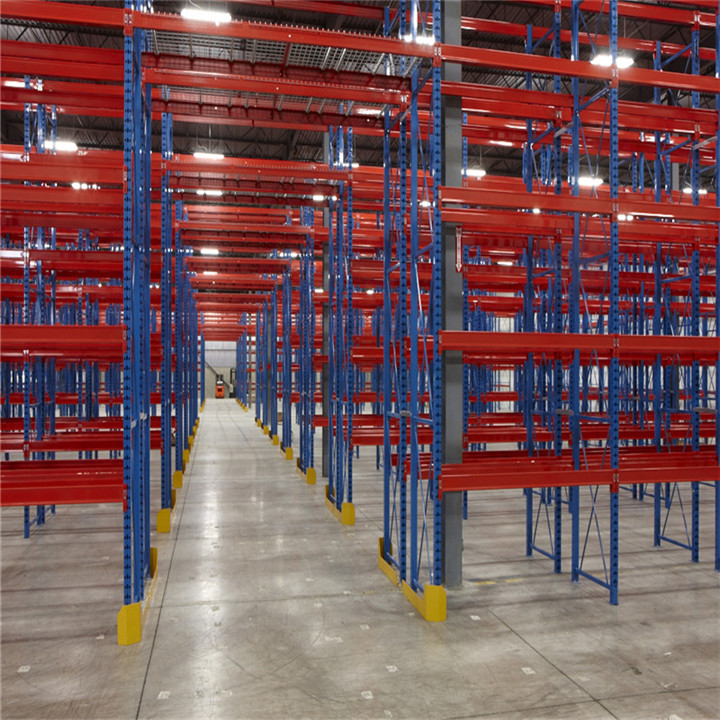

Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4
Quick Instruction for Pallet Racking
1. Drawing: Available drawing (if you have one)
2. Size of Racking: Height * Width * Length (H*W*L)
3. Levels: How many levels do you need?
4. Loading Capacity: Loading capacity of each level?
5. Quantity: How many sets of racking do you want?
6. Color: (RAL) Color you want.

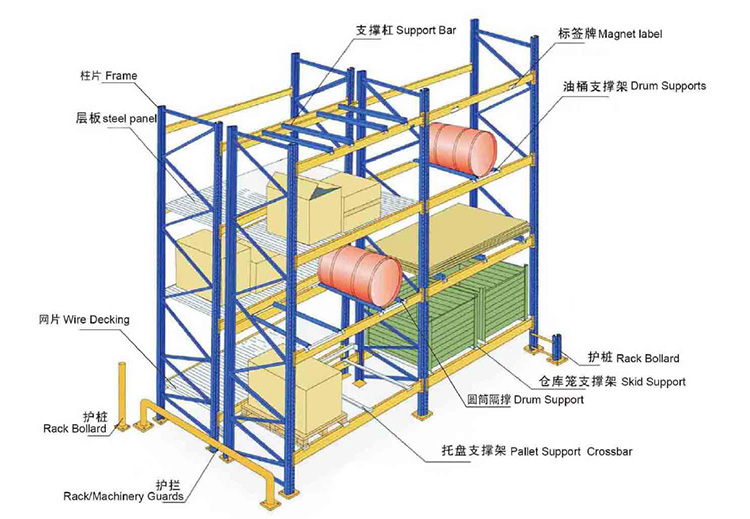

Component Diagram
Design Drawing 1 Design Drawing 2 Design Drawing 3
Structure Drawing 1 Structure Drawing 2 Structure Drawing 3
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3
Product View 1 Product View 2 Product View 3
Detail Image 1 Detail Image 2 Detail Image 3
Application Image 1 Application Image 2 Application Image 3
Specification Sheet 1 Specification Sheet 2 Specification Sheet 3
Warehouse Setup 1 Warehouse Setup 2 Warehouse Setup 3
Final Certification Overview
Frequently Asked Questions
Q1: Are you a distributor or manufacturer?
A: We are a professional and leading manufacturer for nearly 20 years. We produce and export high-quality pallet racking, multi-shuttle systems, radio shuttle racking, and ASRS, maintaining a very high reputation among our customers. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
Q2: What makes your storage solutions different from others?
A: 1) We have more than 40 mechanical, electrical, and software engineers, focusing heavily on innovation and R&D with our own team, domestic research partnerships, and over 60 national patents including WMS and WCS systems.
2) Excellent Service: We promise to reply with pricing within 24 hours, often within the hour.
3) Quick Manufacturing: Standard orders are produced within 20-30 days, guaranteeing delivery times via formal contract.
Q3: What installation and debugging services do you provide?
A: We have installation teams with rich overseas experience. For radio shuttle cars, we send engineers to the site for debugging and training. For racking systems, we can install using our own teams or appoint engineers to guide the operations. We have successfully completed projects in Southeast Asia, America, and Europe.
Q4: What is the minimum order quantity (MOQ)?
A: Normally the minimum order is one 20ft container, though larger quantities can be supplied with optimized pricing.
Q5: What are the accepted payment methods?
A: We accept payments via T/T or L/C.
Q6: What is the expected service life and warranty of the pallet racks?
A: Our pallet racks are designed to have a long service life of over 20 years and come with a standard 6-year warranty.
