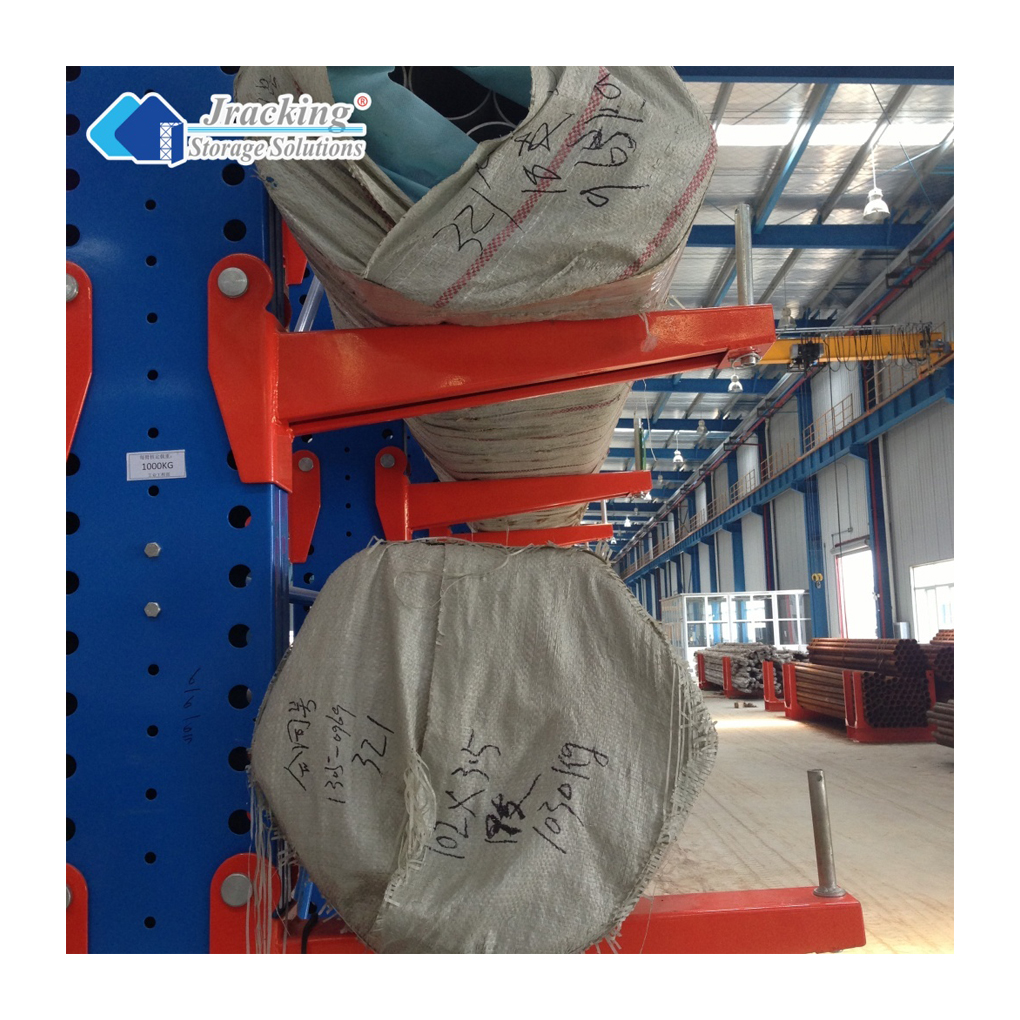

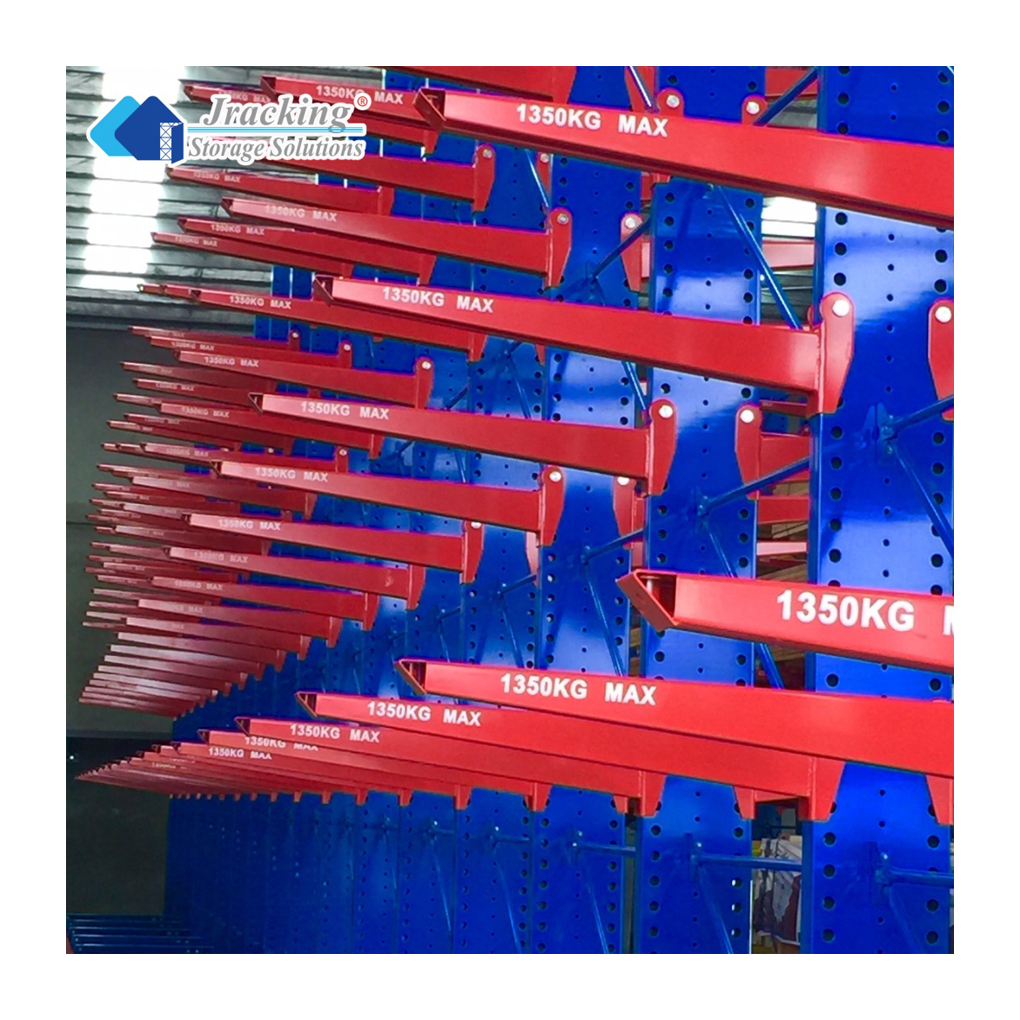

Jracking Industrial Warehouse Storage Rack Heavy-Duty Cantilever Racking System for Aluminum Profile Storage

Product Description

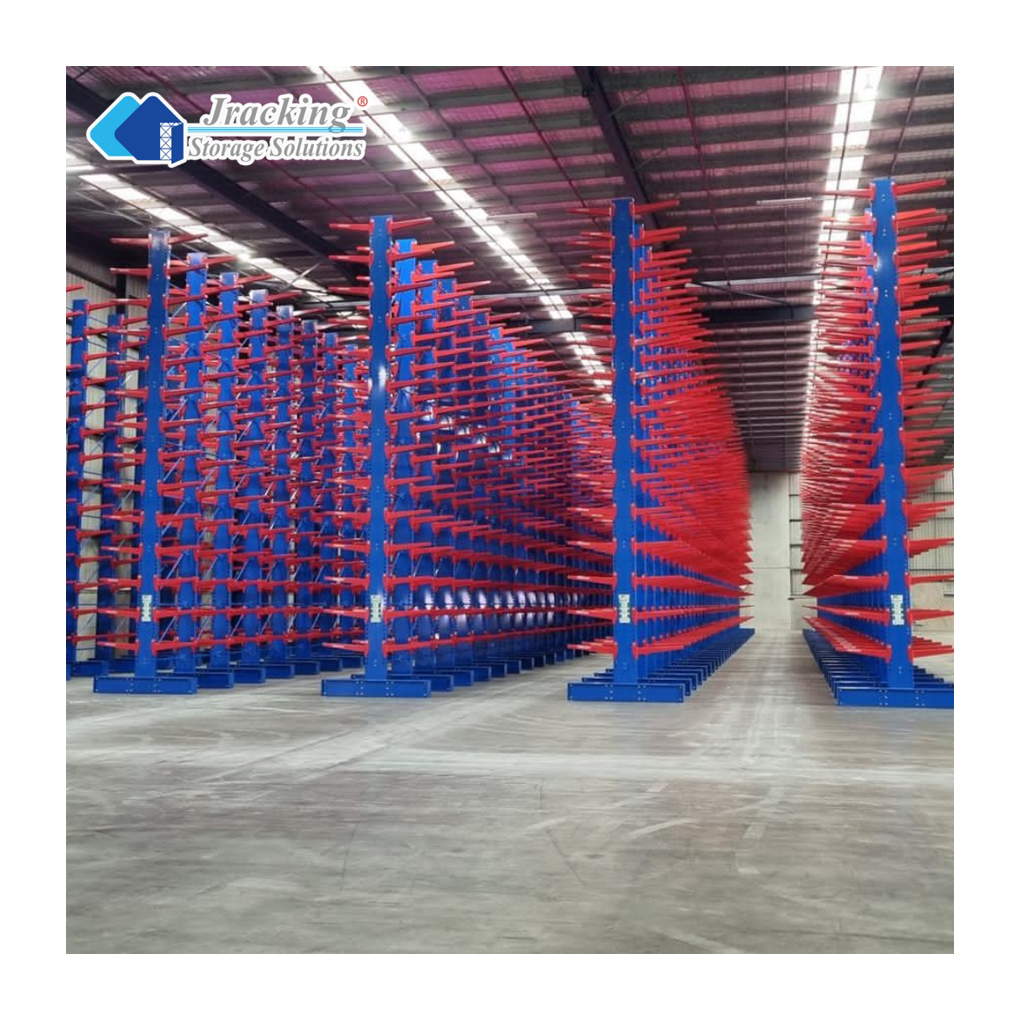

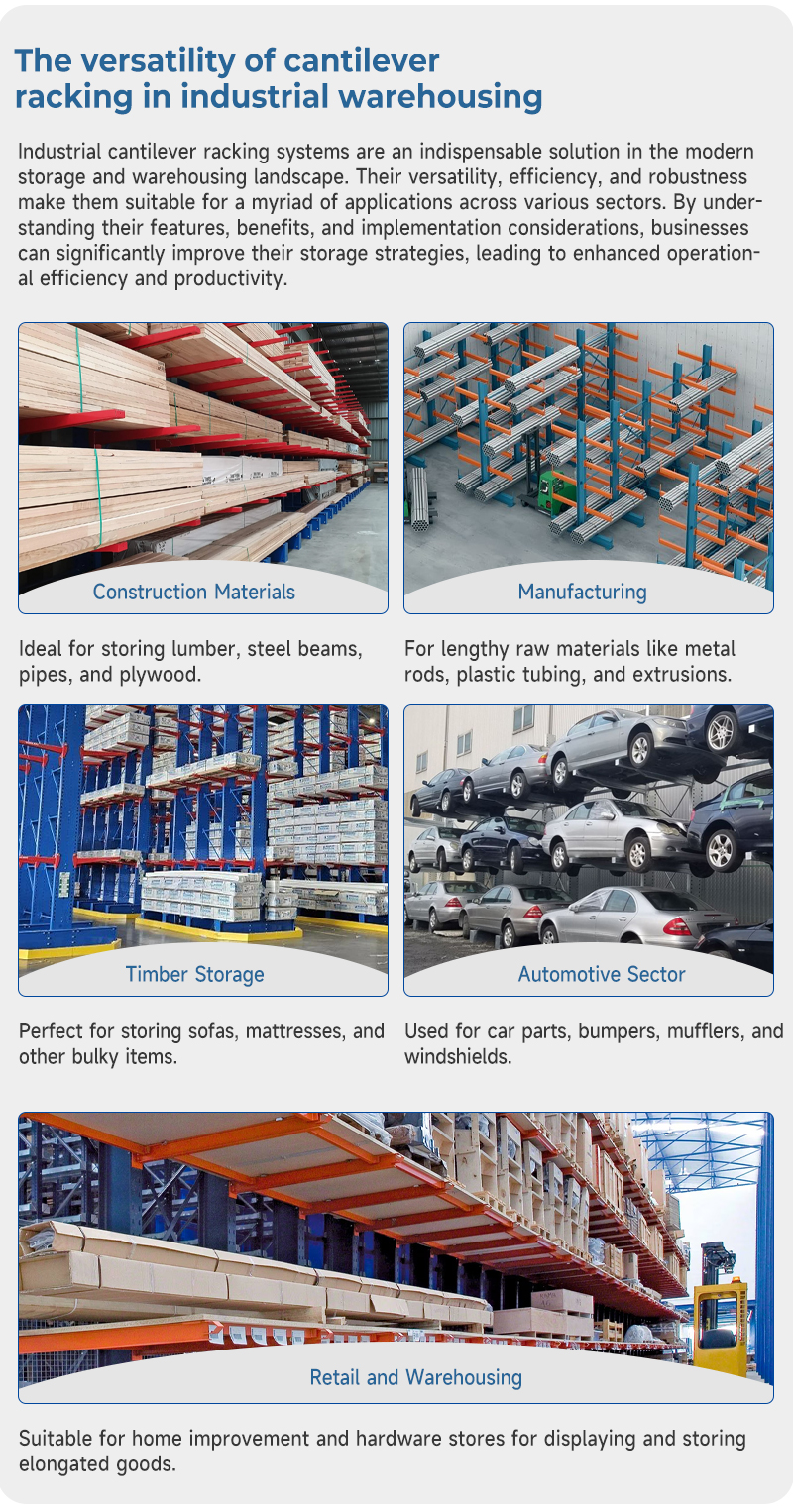

Cantilever Racking Overview

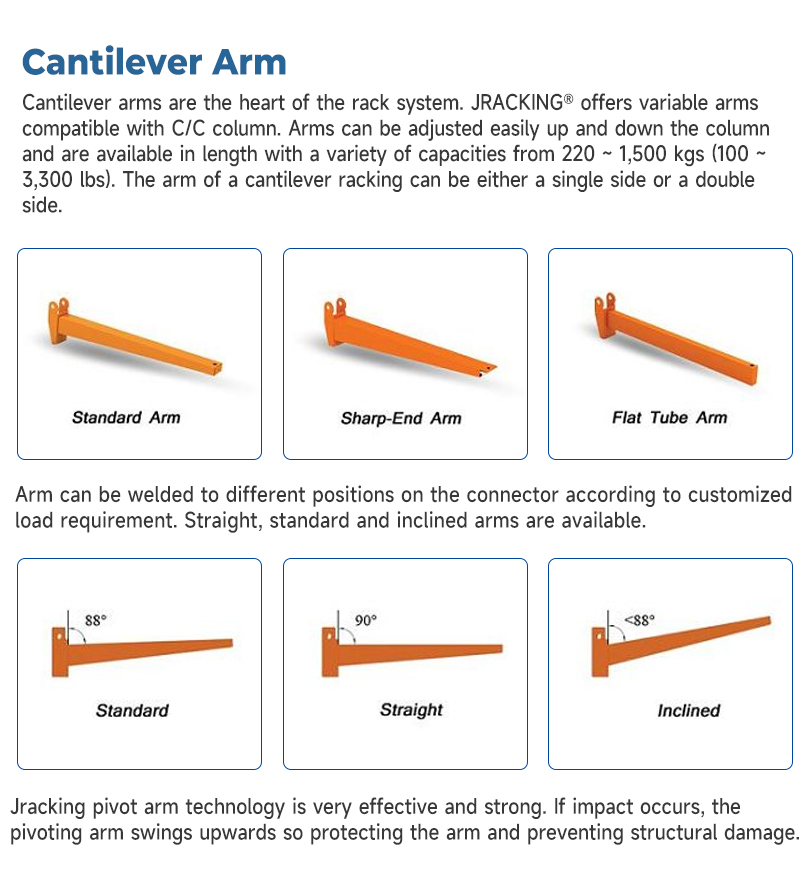

Cantilever Racking Structure Details
Name Cantilever Racking Material Q235B Steel
Size Customized Size Color Customized Color
Depth Customized Weight Capacity 1000kg/arm
Width Customized Height Customized
Finish Powder coating; Hot Dip Galvanized
Packing Export Package
Certification RMI/CE/ISO/TUV/AS4084-2012
MOQ One 20ft/40ft Container
Free Sample Available (Delivery Cost on Buyer)
OEM Available

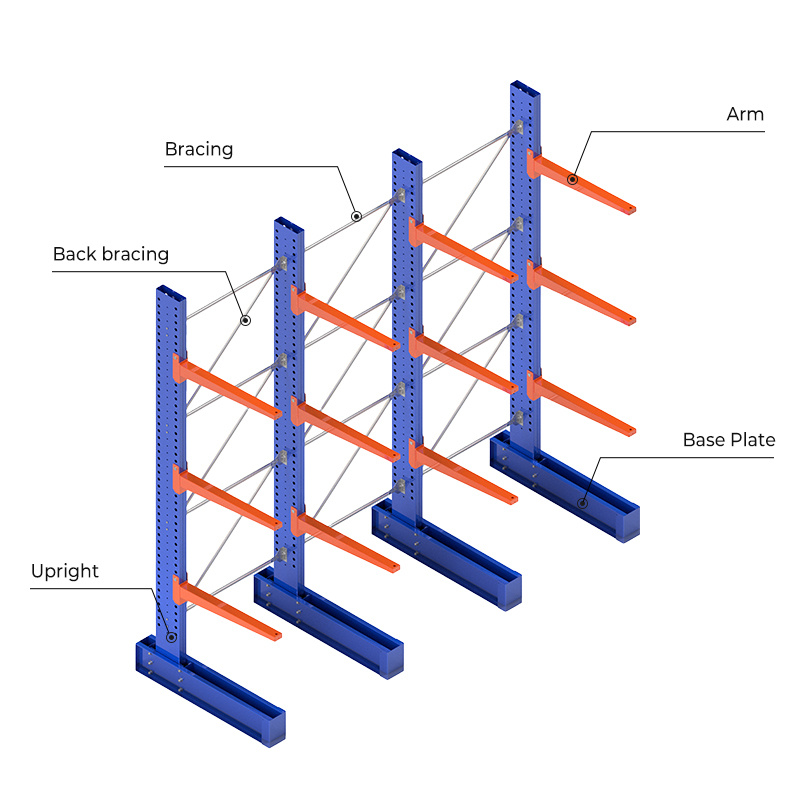

Racking Component Base Column
Racking Joint Rack Construction
Installation Step 1
1 Step 1: Connect Bracing Brackets

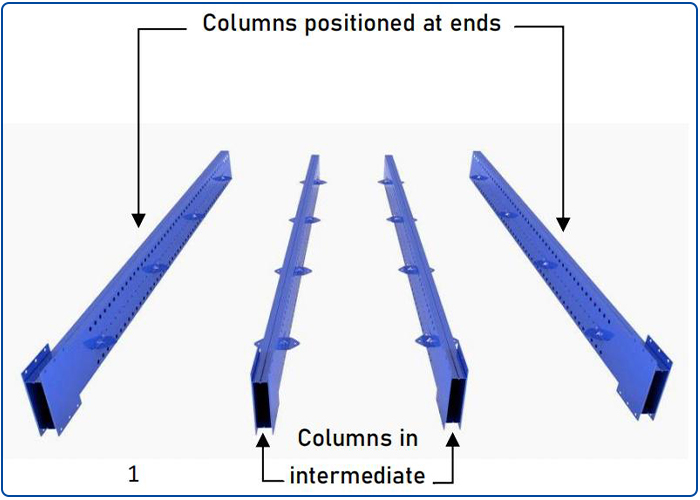

Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.
Installation Step 2
2 Step 2: Position Column

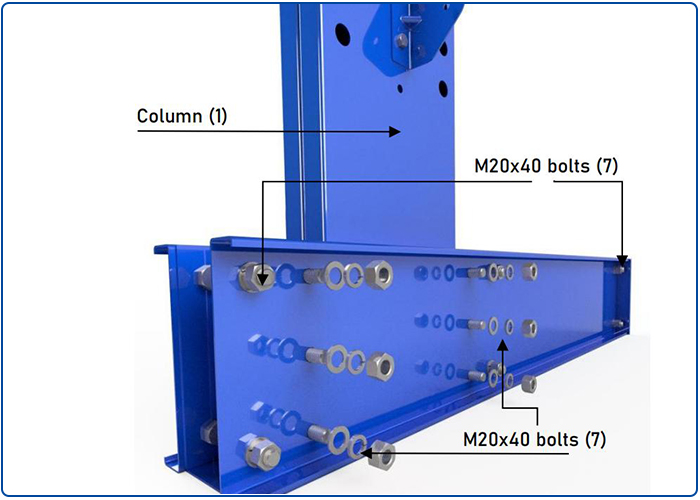

Position the column (1) vertically. Position the column (1) into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fastening the other M20x40 bolts (7) on the base. Recommended torque: 86~103N.M.
Installation Step 3
3 Step 3: Vertical Bracing

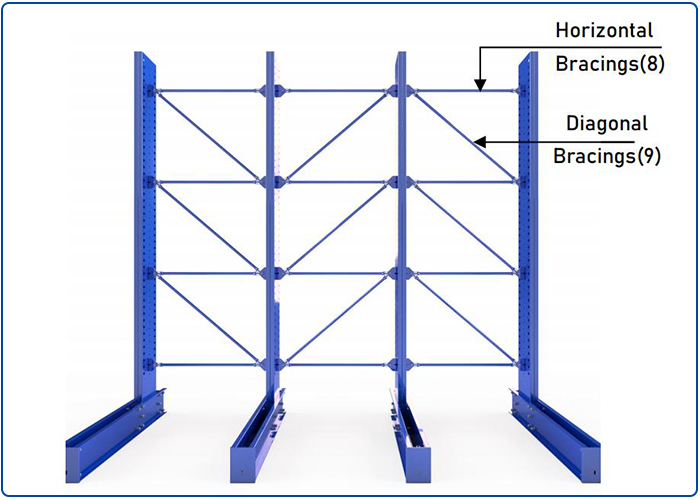

The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.
Installation Step 4
4 Step 4: Leveling & Anchoring

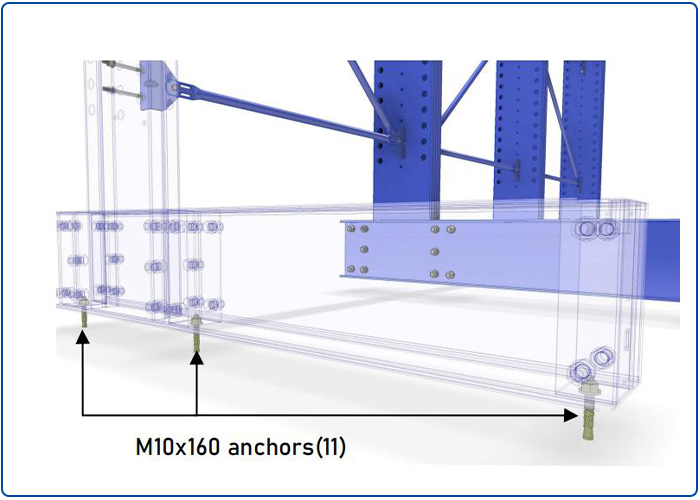

The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor use a Ø14 bit and drill a hole with a minimum depth of 100 mm. Remove the drilling remains and carefully hammer in the fastening M10x160 anchors (11). Firmly bolt the fastening plate in place. Recommended torque: 50 MN.
Installation Step 5
5 Step 5: Fasten Arms

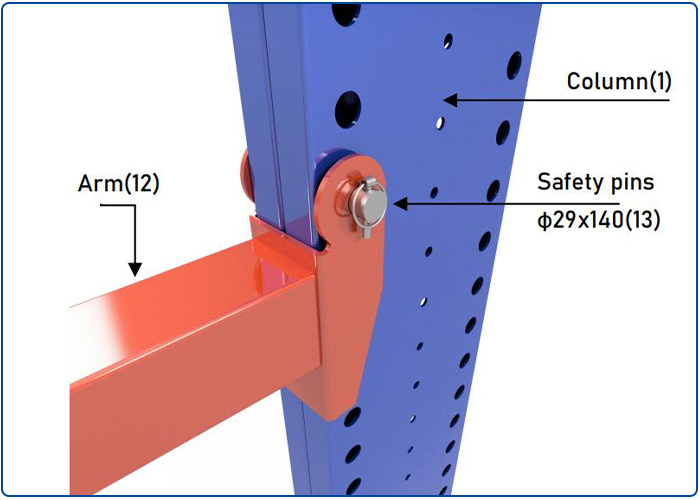

The arm (12) is fastened to the column (1) using safety pins Ø29x140 (13). Fit the arms (11) according to the heights and distribution shown on the corresponding project drawing, where applicable.
Installation Step 6
6 Step 6: Completed Structure

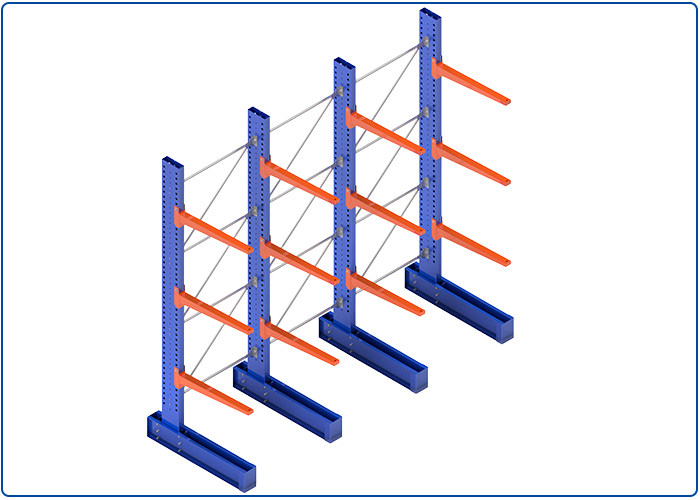

Finally, the completed structure should look like the illustration.

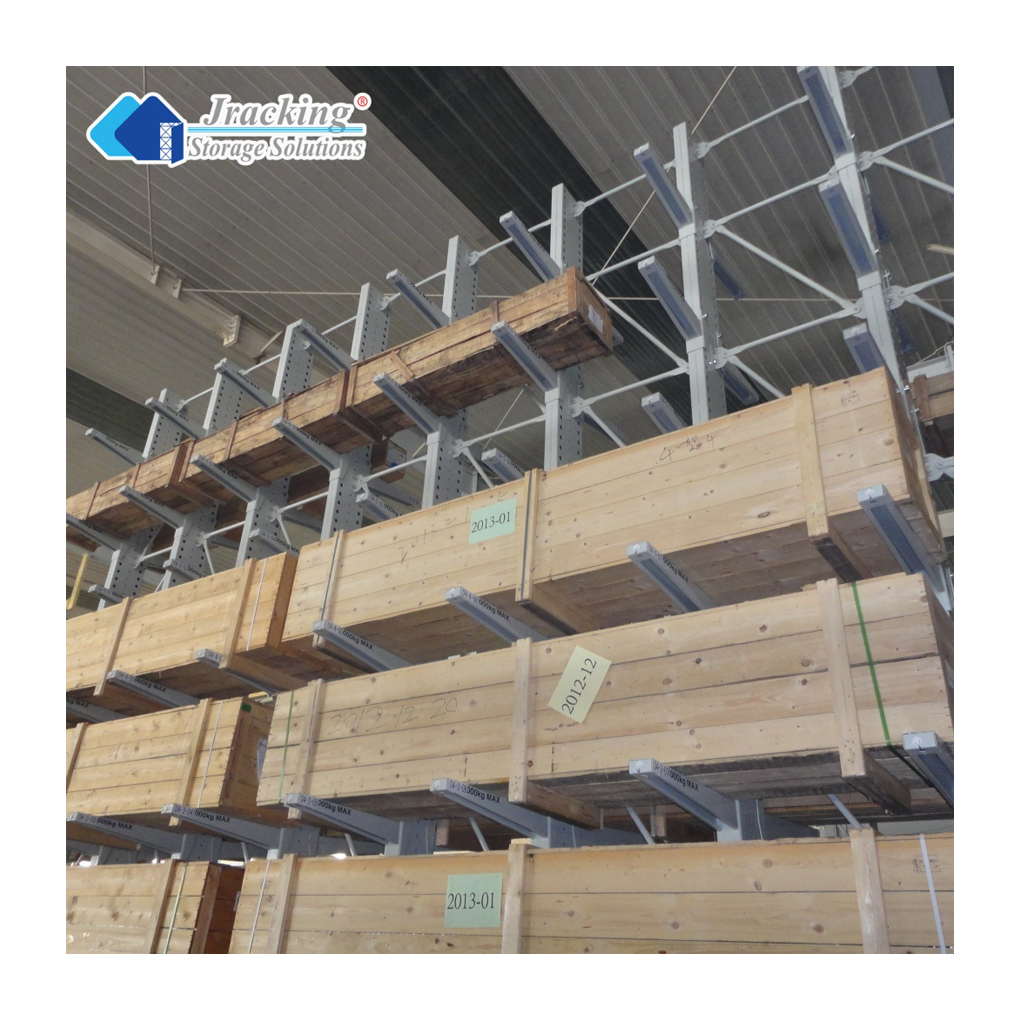

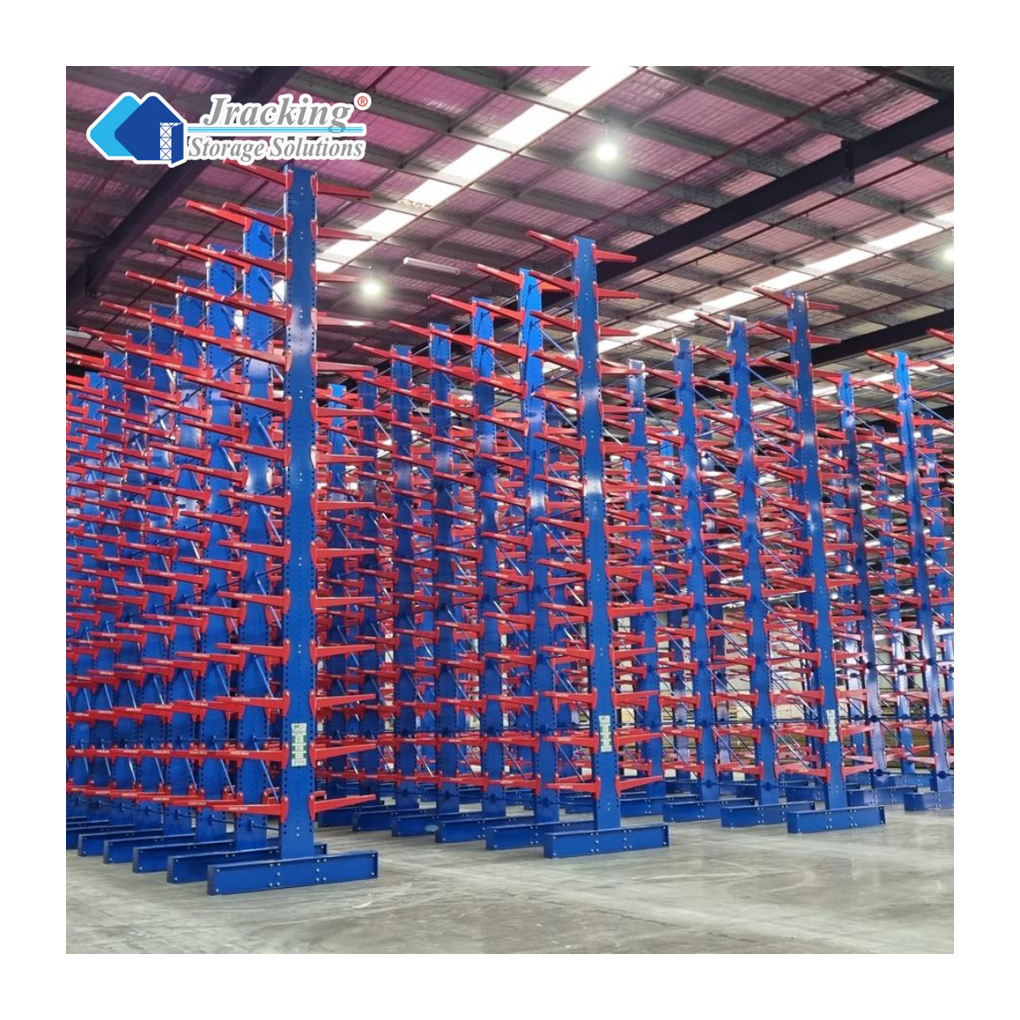

Cantilever System Setup

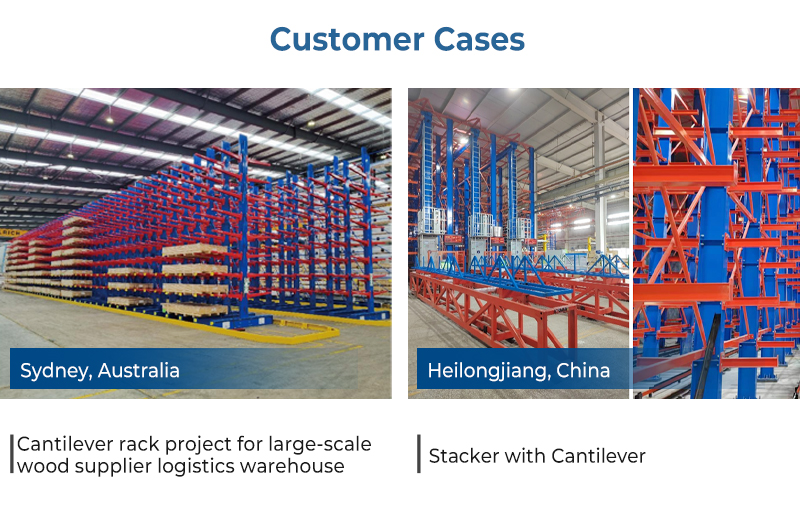

Warehouse Cantilever Storage Heavy Duty Storage
Cantilever Details Steel Storage Warehouse Storage Rack
Cantilever Setup Side View Product Categorization Overview
Frequently Asked Questions
Q: What are your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally in 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment is received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer attractive discounts for large quantities.
Q: How can I arrange delivery for my goods?
1) Sea freight: We will provide updated sea freight rates once we know the specific sea port where the goods will be delivered.
2) Agent designated by client: Please provide the contact details of your shipping agent, and we will coordinate the delivery setup.
Q: What services do you provide?
1) Your inquiry related to our products or price will be replied within 12 hours.
2) Well-trained and experienced staff to answer all your inquiries in fluent English.
3) OEM & ODM support; we can design customized racking systems to meet your specific requirements.
4) Access to highly experienced professional engineers to provide optimal layout and structural solutions.
Q: What is the process to purchase the products?
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → Quality Control Inspection → Pay balance → Shipping.
Q: What are your key advantages?
1) Flexible Payment: We can offer O/A terms for 40-60 days.
2) Rapid Lead Time: Fast delivery options are available for rush orders.
3) Factory Pricing: Competitive direct-from-factory pricing.
4) Warranty Support: Two-year warranty coverage, during which broken parts will be replaced and shipped to you.
Q: Is there a minimum order quantity (MOQ) limitation?
No, there is no strict MOQ limitation. However, larger order volumes result in better pricing. We recommend an order size that fits at least one 20ft container (approximately 15 tons) to optimize logistics costs.
