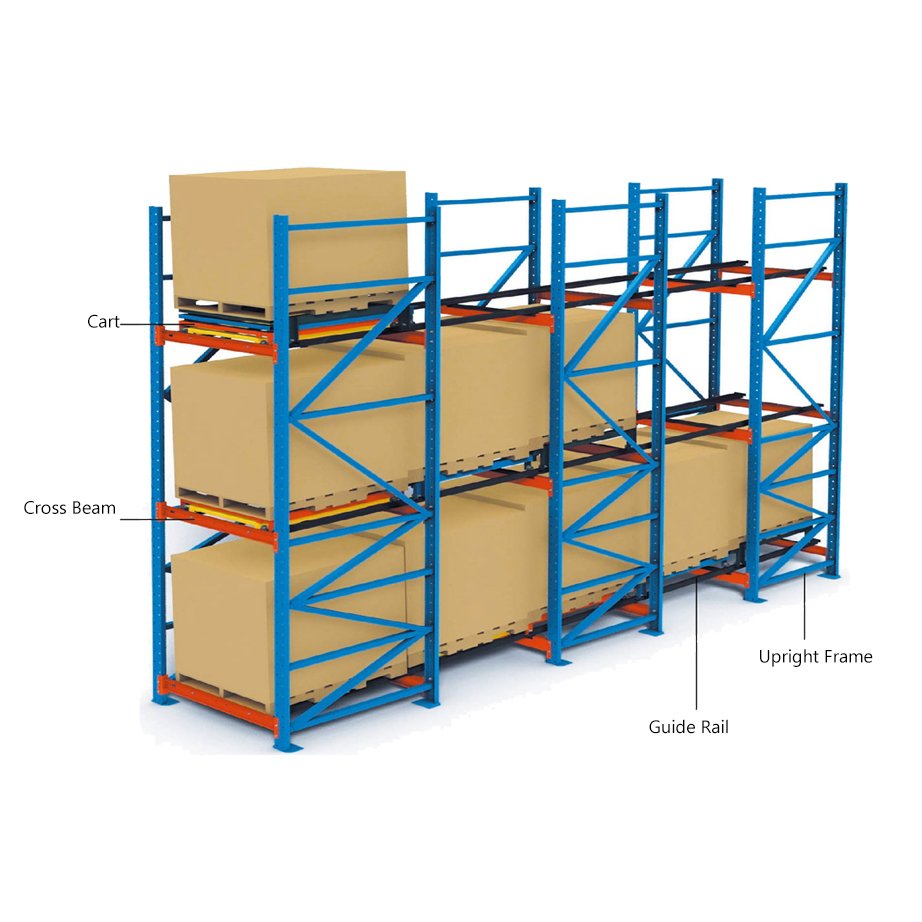

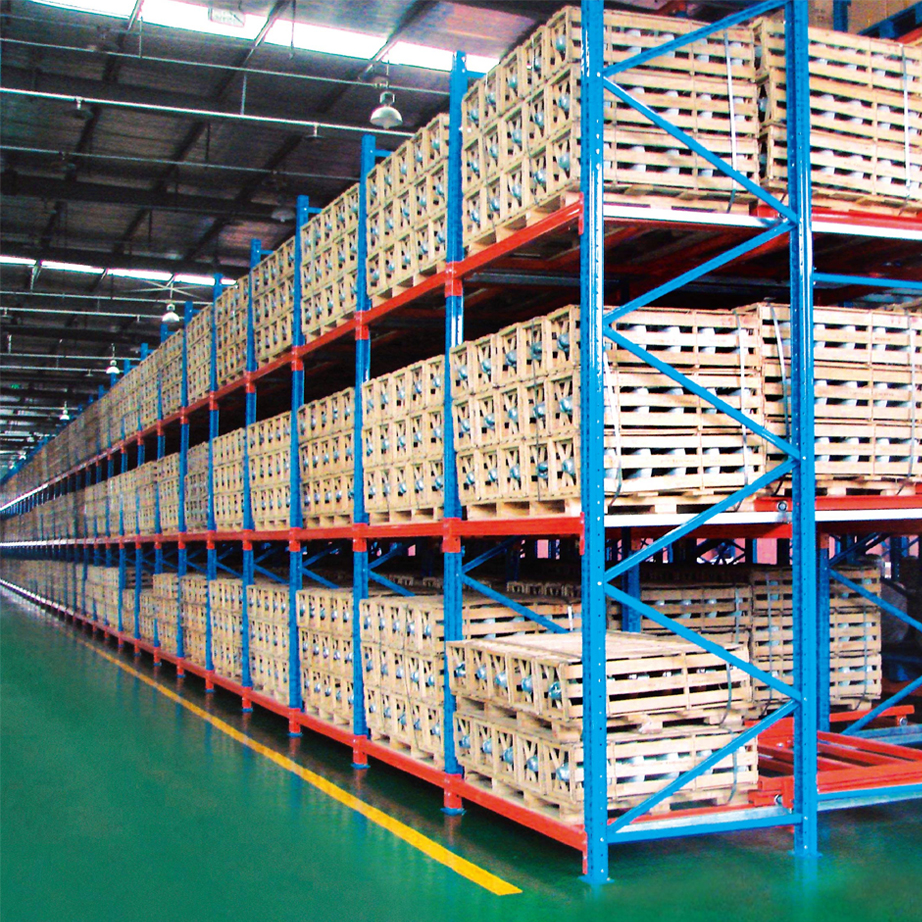

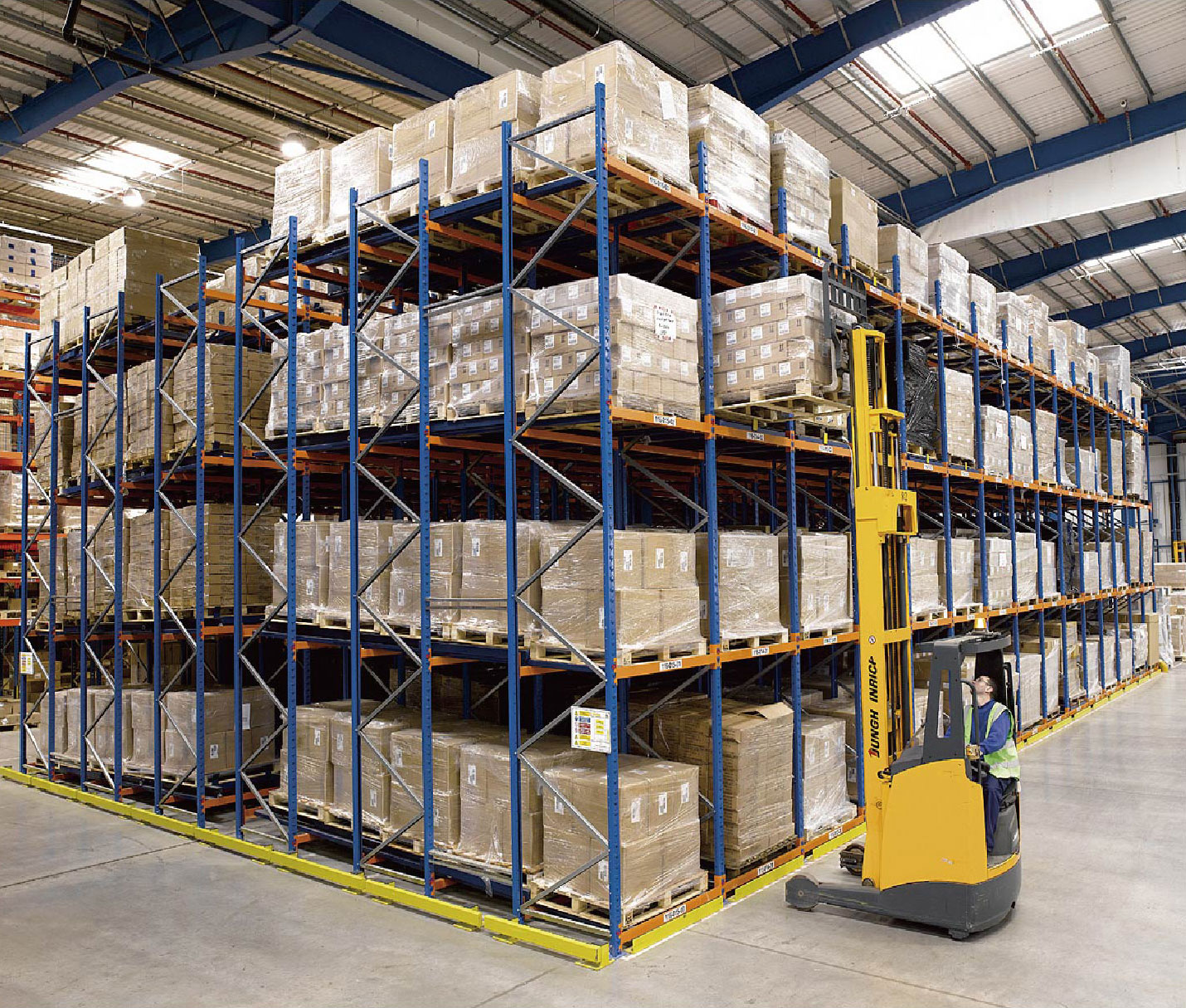

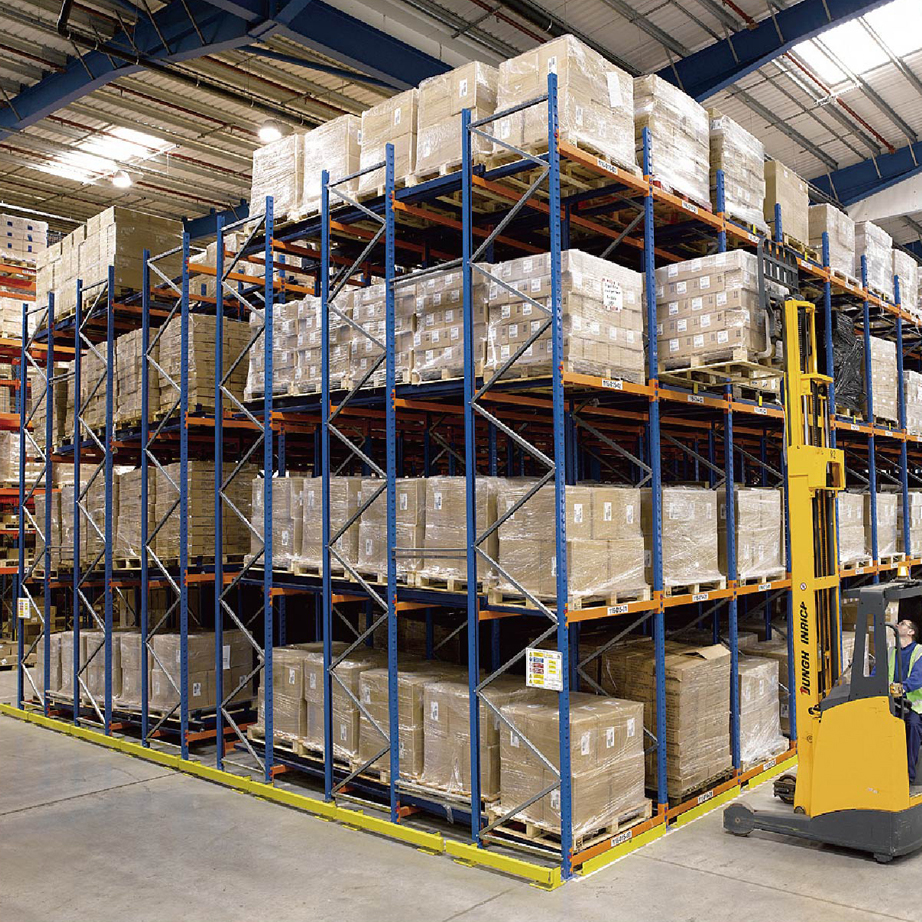

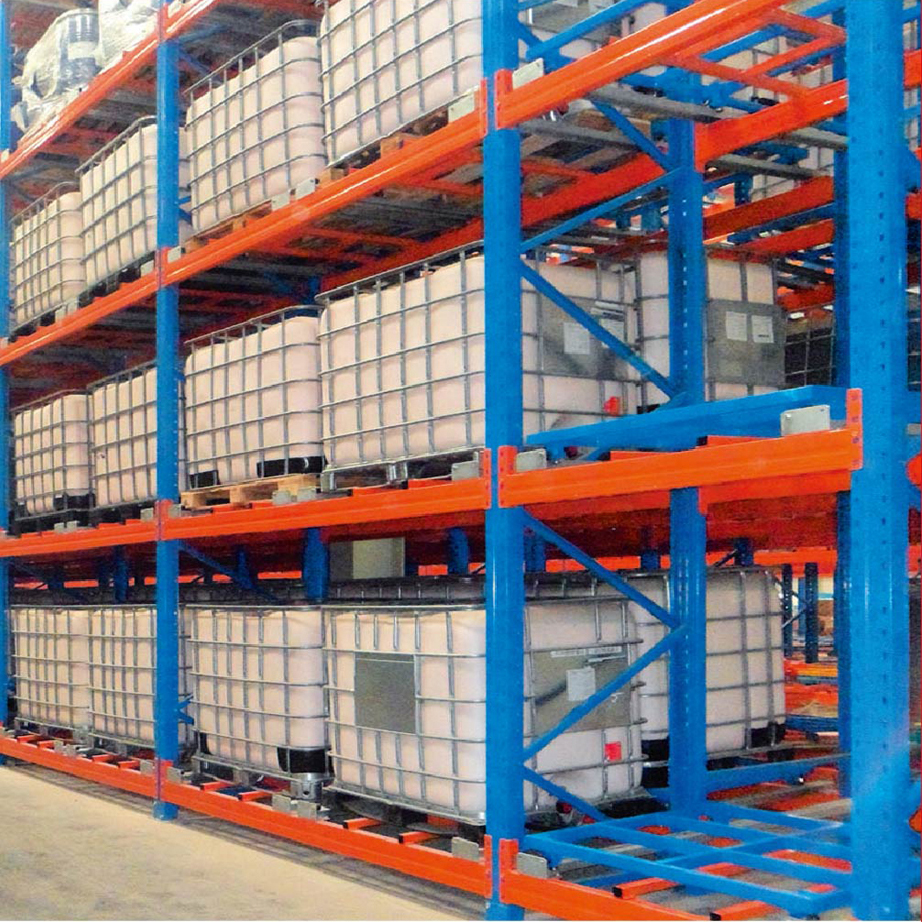

Push back racking is a type of pallet racking system. It uses a combination of inclined rails and pallet carts, where gravity enables FIFO (first-in, first-out) handling of goods. It is ideal for storing large quantities of a small variety of SKUs.

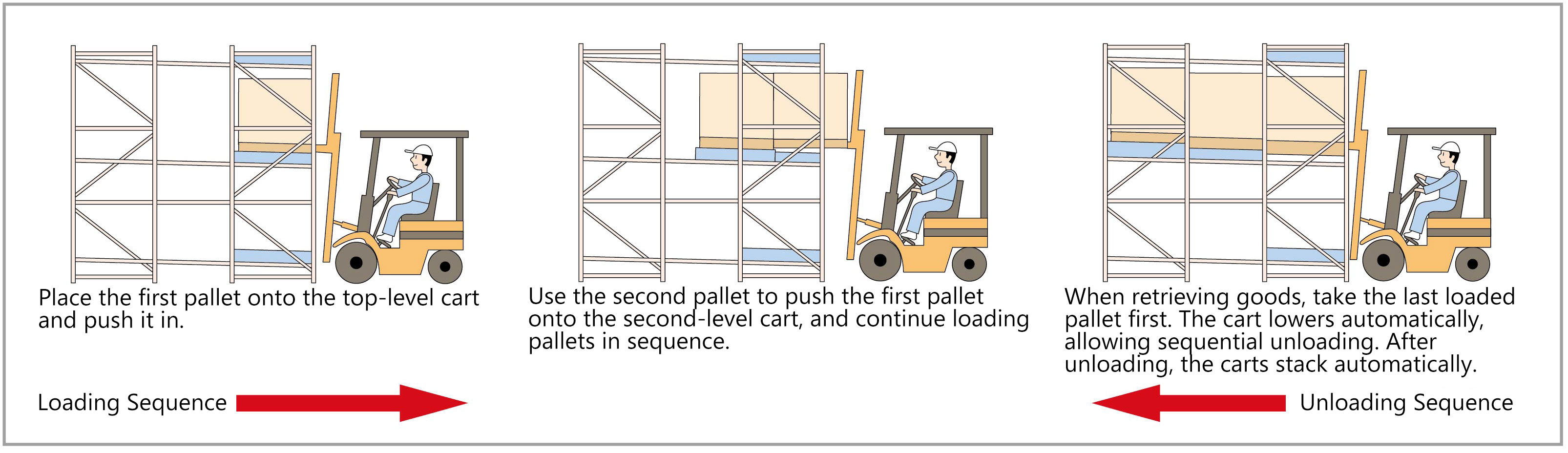

All loading and unloading operations are completed at the front of the rack by forklifts, with a maximum depth of up to 5 pallet positions, ensuring high space utilization.
| Item | Specification |
|---|---|
| Product Name | Push Back Racking |
| Material | High Quality Q235 Steel |
| Load Capacity | 500kg-4000kg/Level (Customizable) |
| Height | 2000mm-12000mm (Customizable) |
| Span(Beam Length) | 1500mm-3600mm (Customizable) |
| Depth | 800mm-1200mm (Customizable) |
| Layer | 2-8 Layers (Customizable) |
| Surface Treatment | Powder Coated (Blue/Orange/Other Colors Available) |
| Applicable Industries | Manufacturing, Logistics, Electronics, Automotive, etc. |
| MOQ | 10 sets (Sample Order 1 Set Available) |
| Delivery Time | 7-15 Days (Customized orders Negotiable) |
| Accessories | Contact Us for More Detail. |
23,000㎡ modern production base with over 20,000 tons annual output, ensuring fast on-time delivery for both small sample orders and bulk projects.
Rigorous full-process quality control, from raw material inspection, precision production to final testing, with certification to guarantee rack safety and long-term durability.
Dedicated sales & engineering team online around the clock, providing tailored rack solutions for manufacturing, logistics, automotive and other industries.
