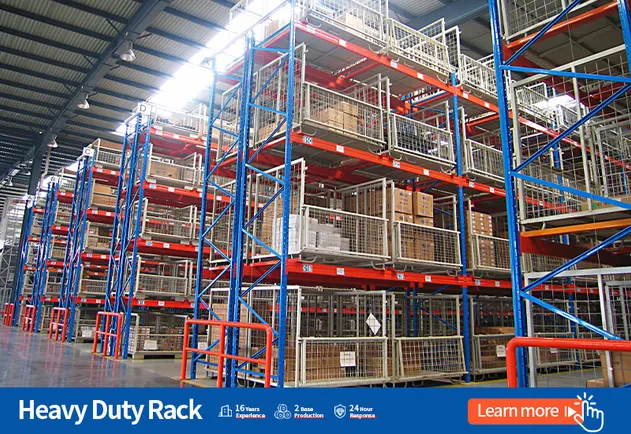

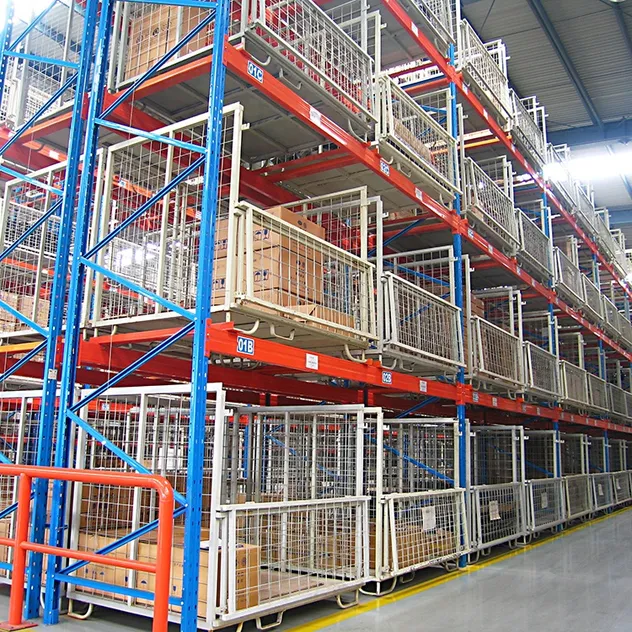

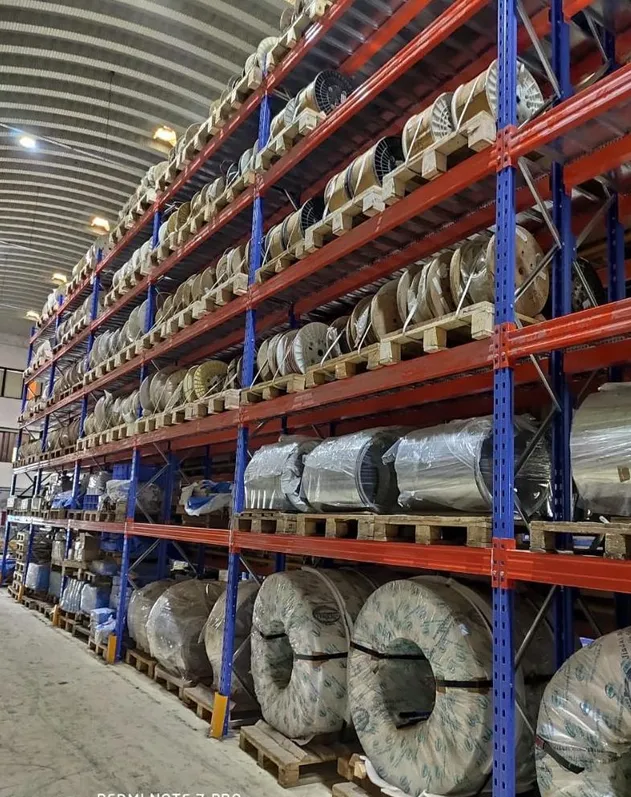

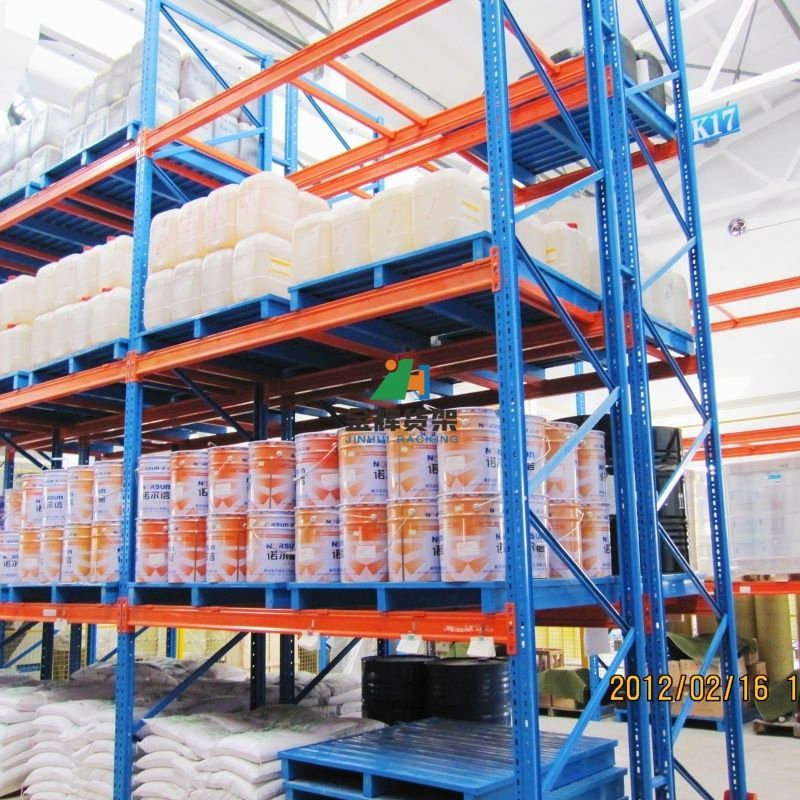

Industrial Heavy Duty Pallet Racks is a general term for storage structures designed with strong load-bearing capacities. They offer advantages such as low cost, safety, reliability, and simple, convenient assembly and disassembly.

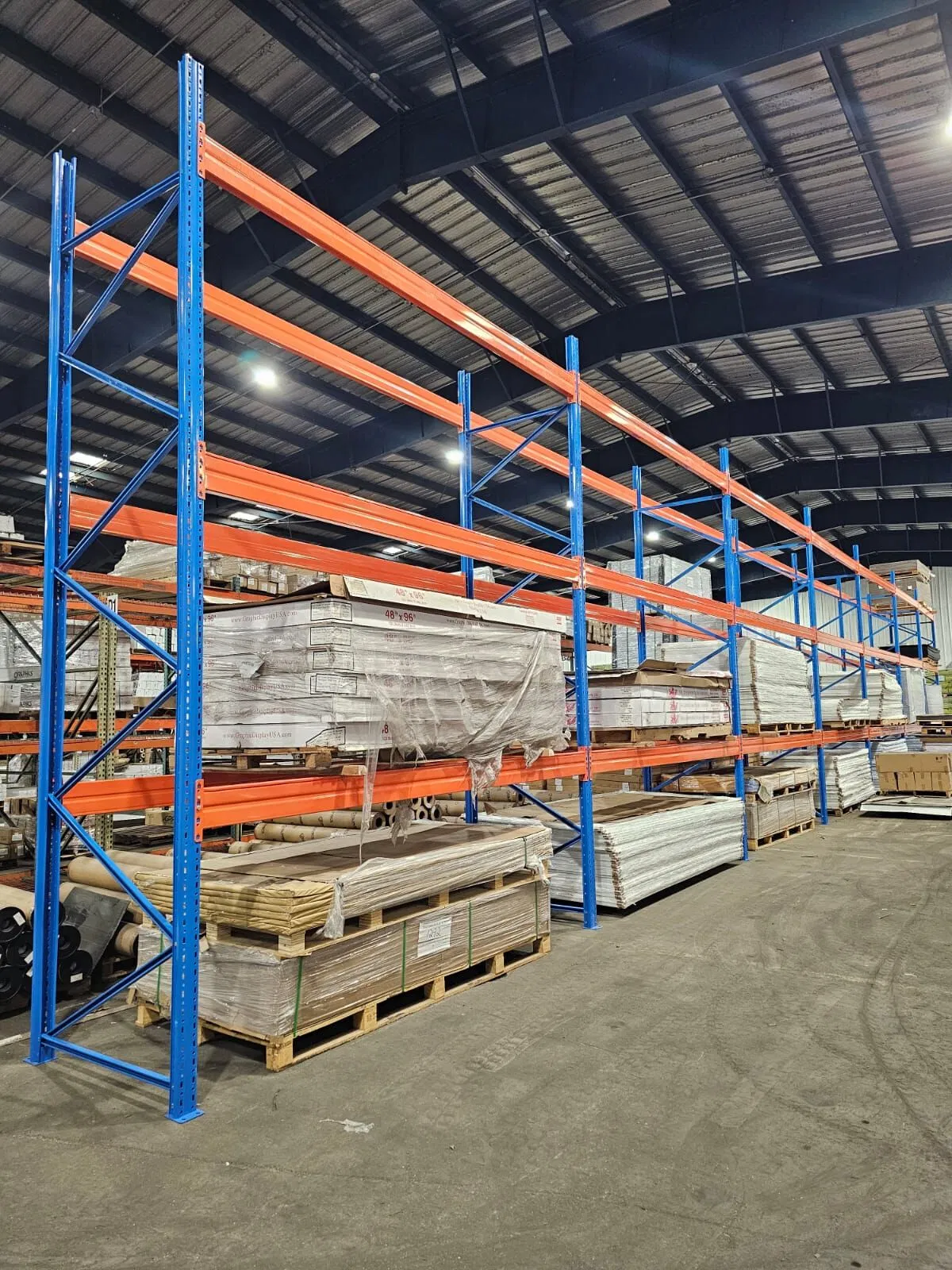

Composed of upright frames and beams, these systems optimize the storage of goods of all sizes and weights. With a wide range of components and accessories, our racking systems can be tailored to meet your precise requirements. They are ideal for large, medium, and small warehouses, and are widely applied in manufacturing, logistics, and distribution centers.

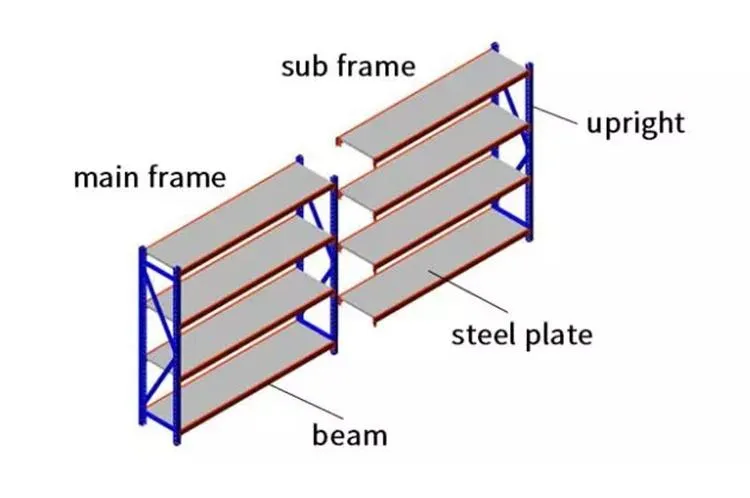

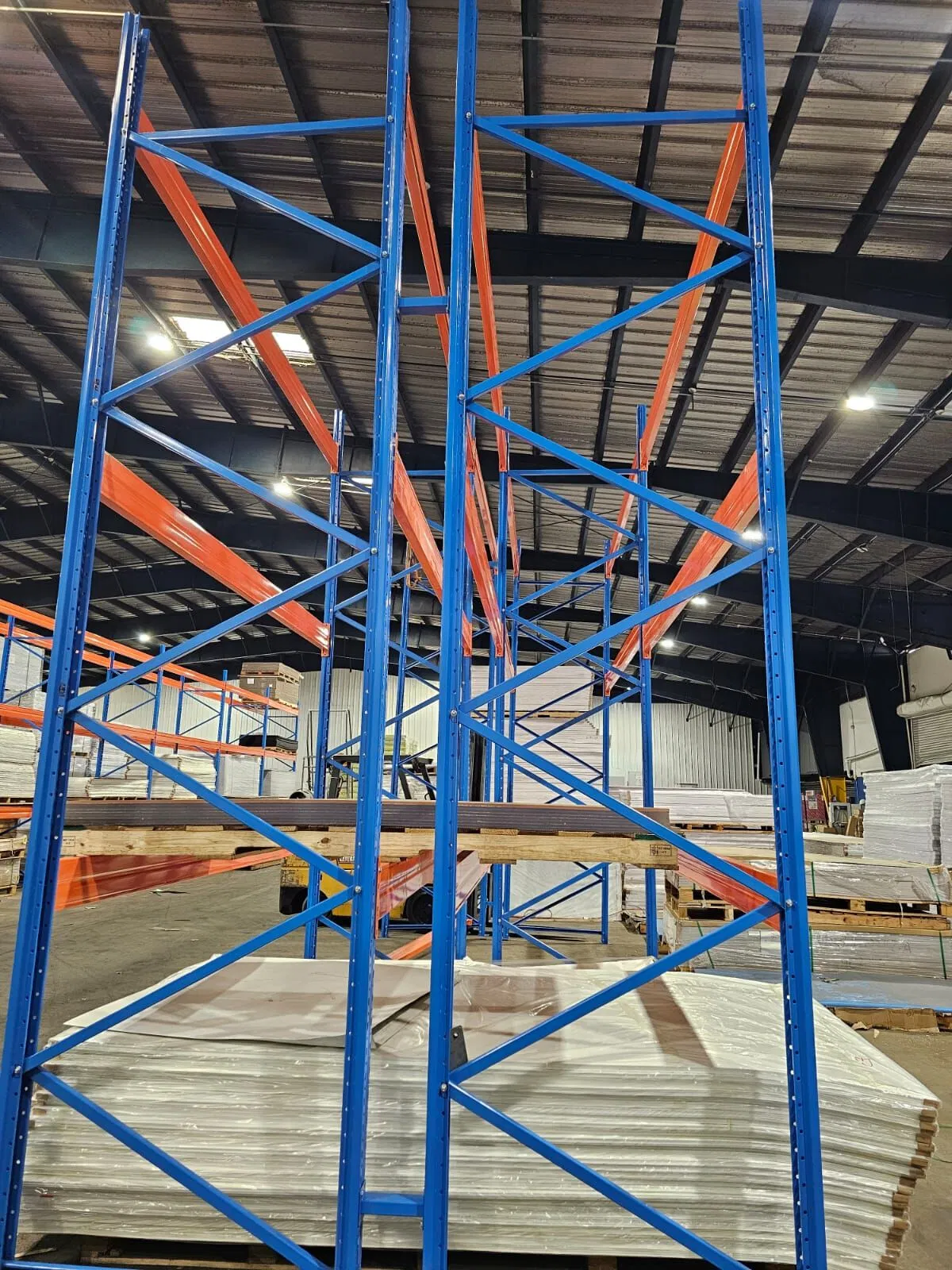

The main frame is composed of two columns and beams. The main frame can stand alone, while sub-frames attach to the main frame to extend the system configuration.

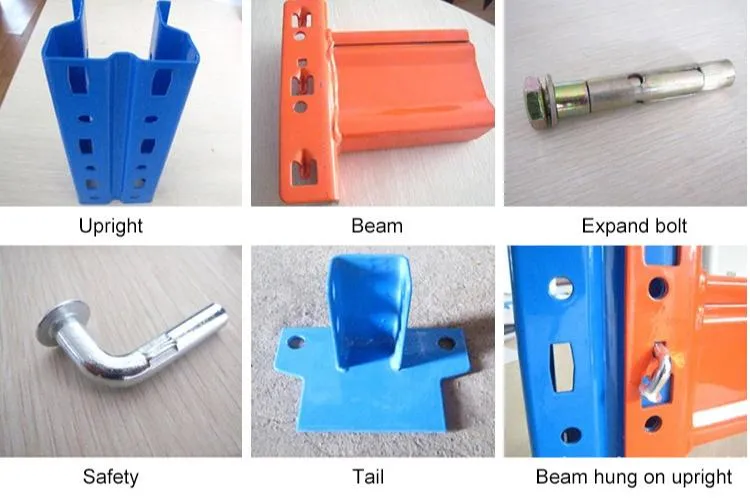

Includes horizontal & diagonal braces, upright foot plates, safety pins, bolts & nuts, anchors, and all necessary structural accessories.

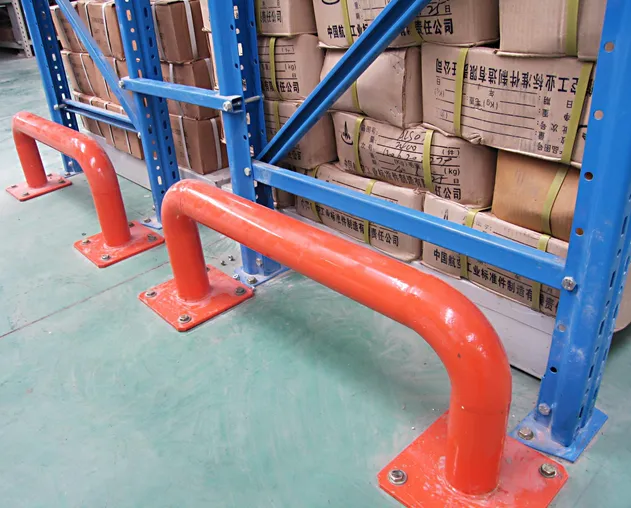

Protects columns and goods from forklift impacts; usually installed at the end of rows and passageways.

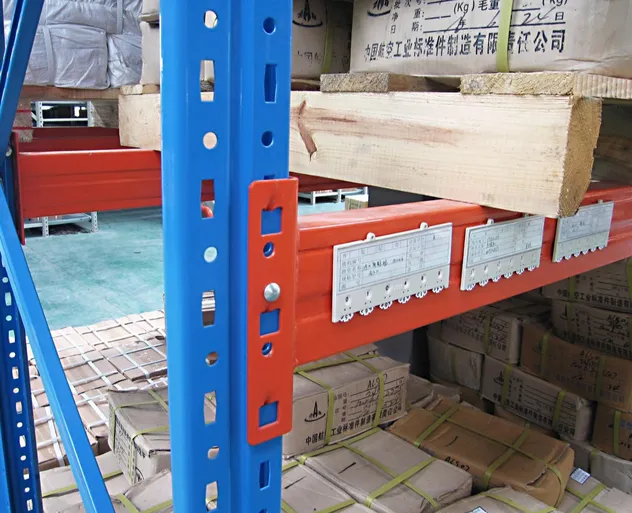

Vertical hook-ups connect to the columns to directly support loads across the span of the rack.

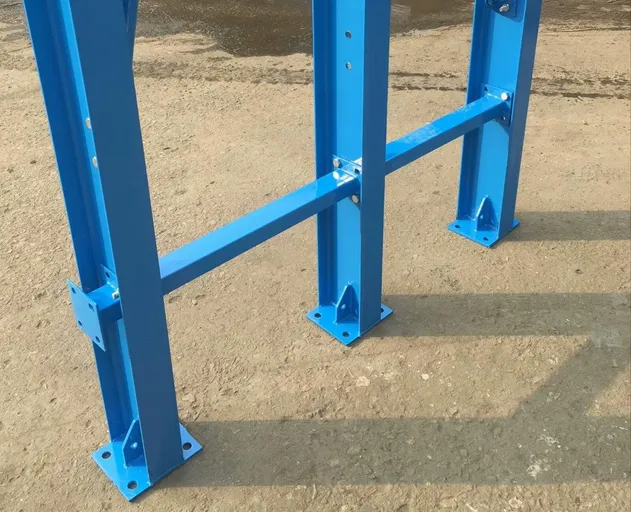

A connecting member that joins back-to-back columns to maintain alignment and add system stability.
| Length (mm) | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
|---|---|---|---|---|---|---|---|---|
| Beam Spec: 80×50 | 3000 kg | 2300 kg | 1800 kg | 1500 kg | 1200 kg | 1000 kg | 800 kg | 700 kg |
| Beam Spec: 100×50 | 4000 kg | 4000 kg | 3000 kg | 2400 kg | 2000 kg | 1750 kg | 1400 kg | 1100 kg |
| Beam Spec: 120×50 | 4000 kg | 4000 kg | 4000 kg | 3500 kg | 3000 kg | 2500 kg | 2000 kg | 1800 kg |
| Beam Spec: 140×50 | 4000 kg | 4000 kg | 4000 kg | 4000 kg | 4000 kg | 3800 kg | 3000 kg | 2500 kg |
Production Plants: 2 modern production plants
Productivity: Strong capacity with support for OEM & ODM solutions.
Certifications: CE, ISO 9001, ISO 14001, ISO45001, TUV

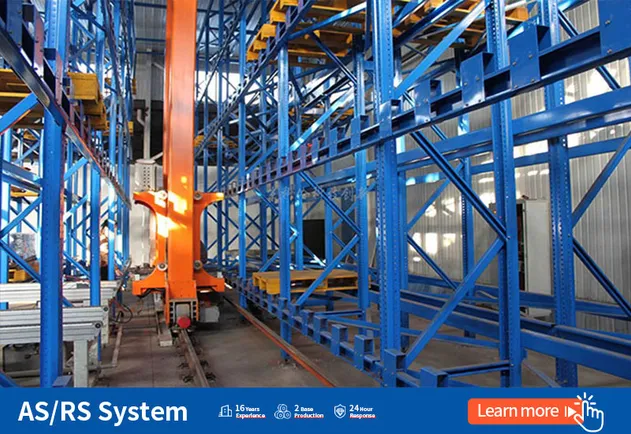

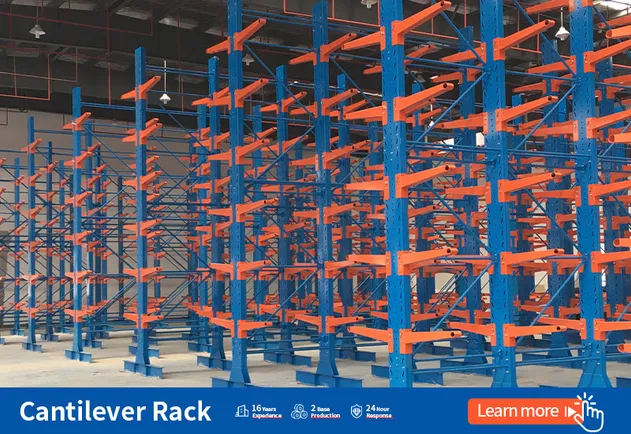

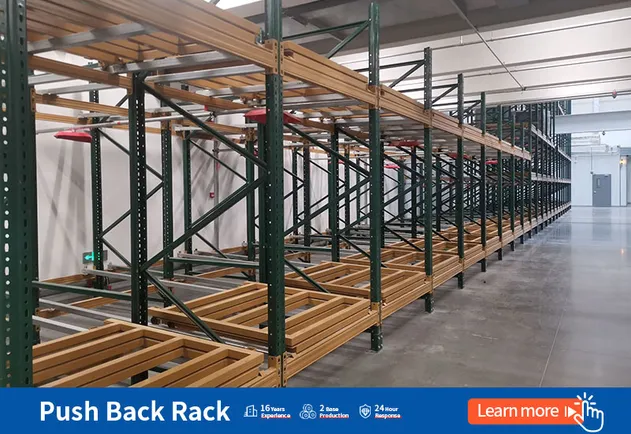

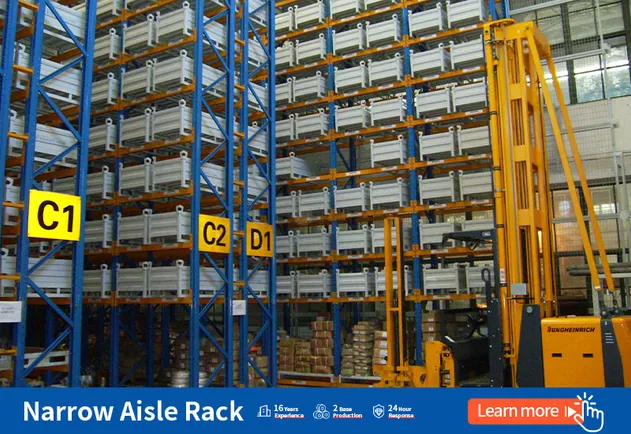

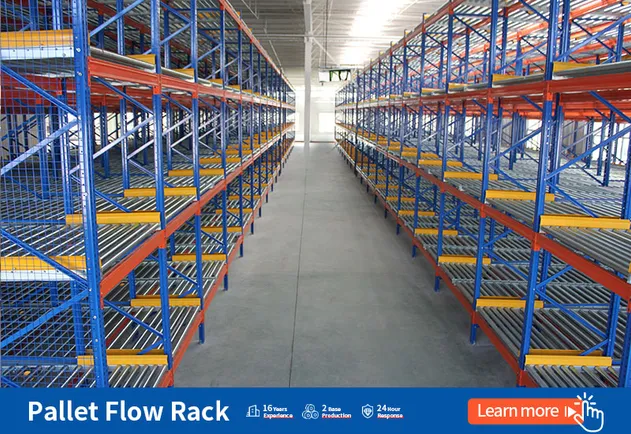

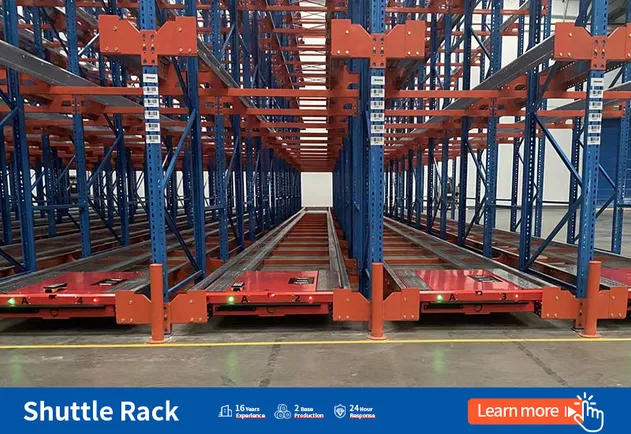

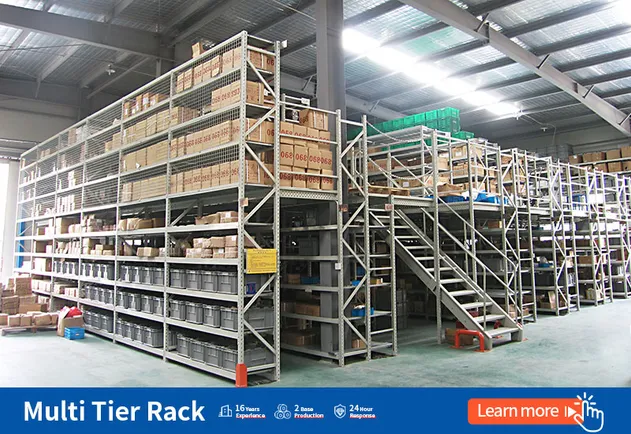

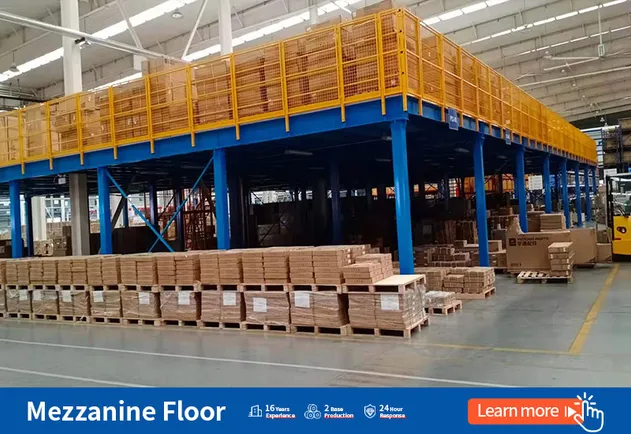

Racking Systems Offered: Pallet Racking, Mezzanine Floor, Cantilever Racking, Shuttle Racking, Gravity Racking, Mobile Racking, AS/RS (Automated Storage & Retrieval System), Light & Middle Duty Shelving, Steel Pallets, Stackable Racking.
Experience: Over 20 years of manufacturing and application design experience.
Professional Customization: In-house engineering teams design CAD layouts tailored to your warehouse parameters and load requirements.

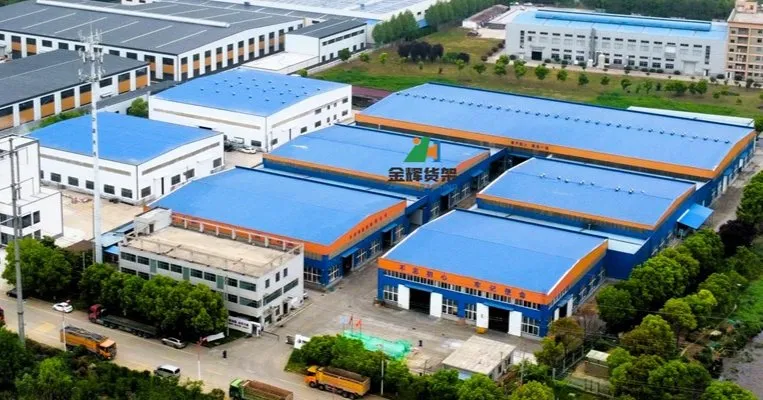

Production Scale: Over 60,000m² factory and warehousing facilities; output capabilities of up to 5,000 sets daily.
Full-service Guarantee: Professional support teams guide you from layout design to installation support.

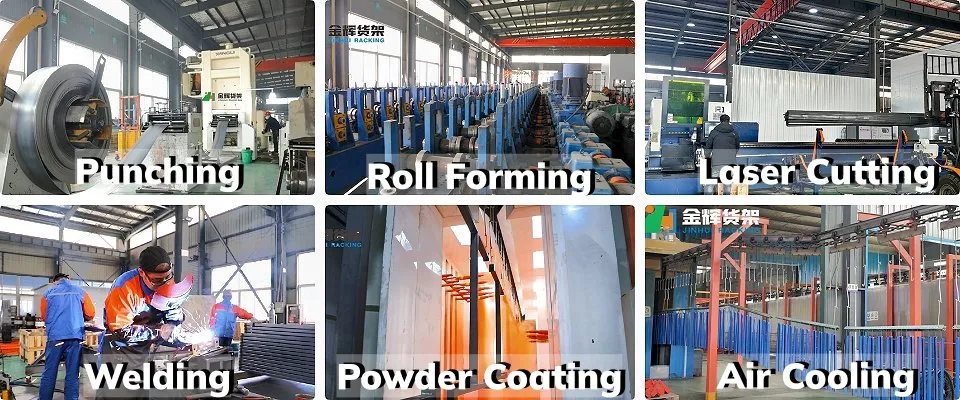

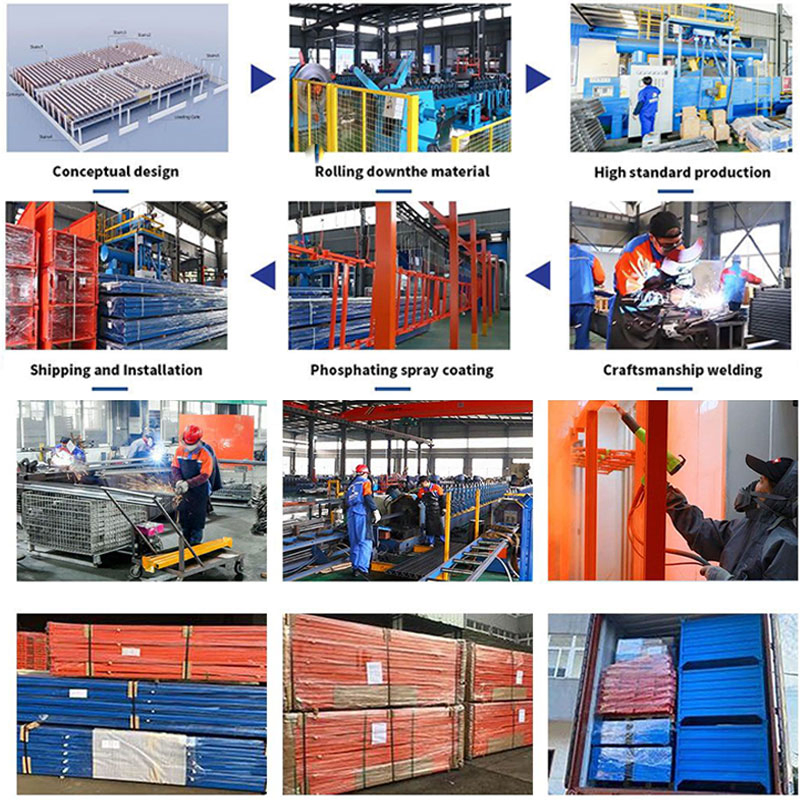

Our structures undergo rigorous testing to comply with international requirements, backed by state-of-the-art machinery across 40,000+ square meters of specialized production floor space.
