Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
1 / 5
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling
Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling

Traditional Upright Selective Pallet Racking System With Durable Racks And Shelves For Efficient Warehouse Material Handling

Send Inquiry

Product Description

Pallet Racking System Overview
◆ Overview
Structure Drawing

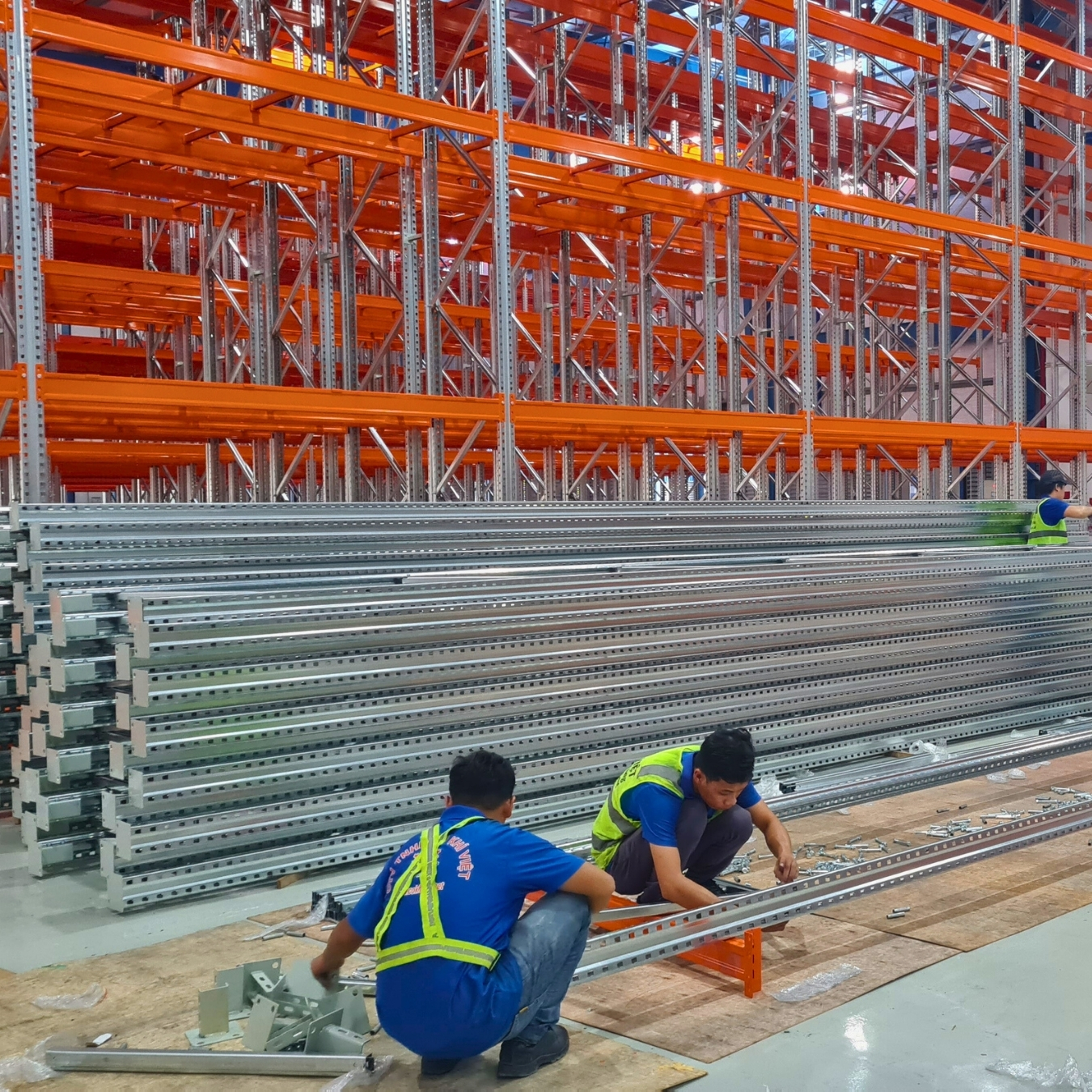

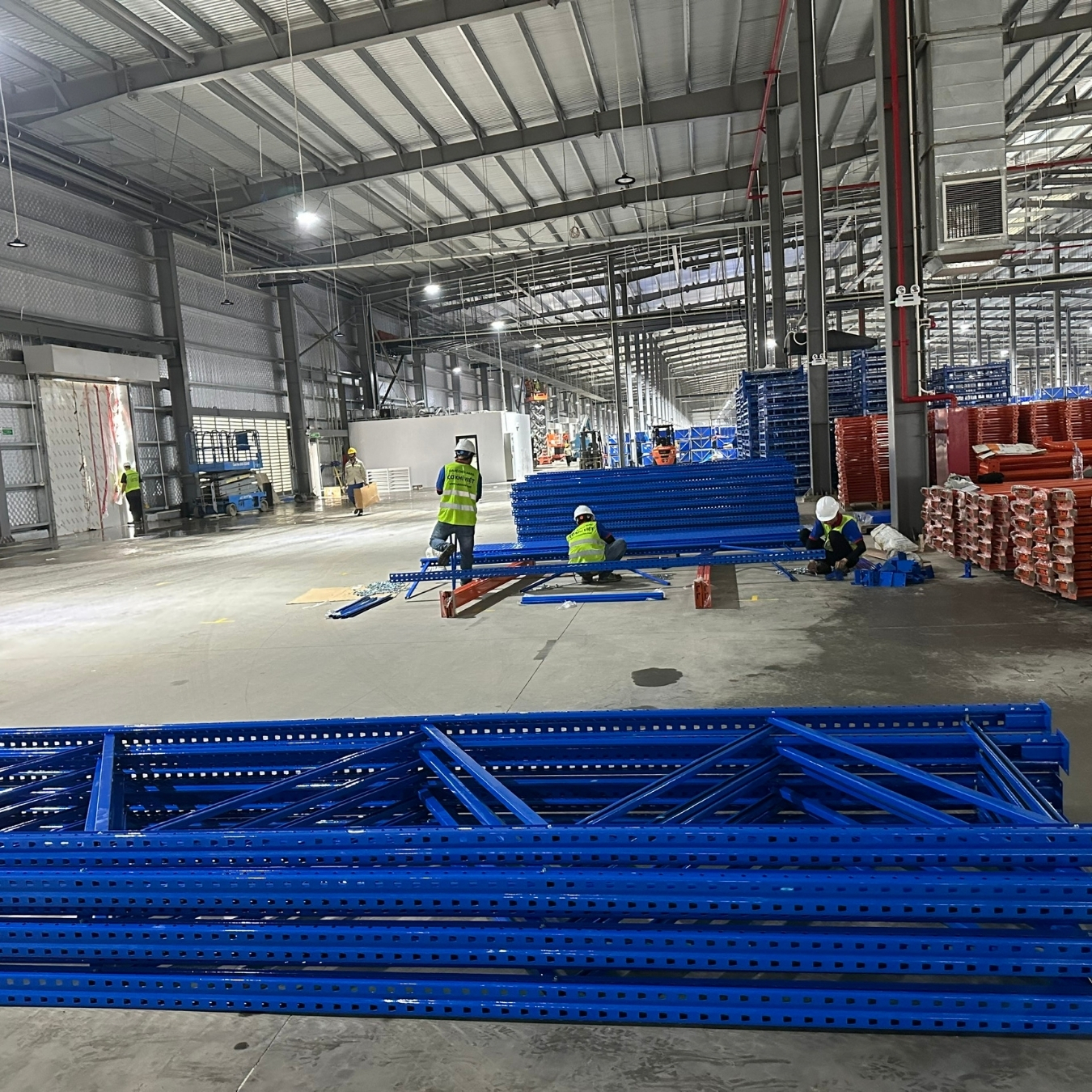

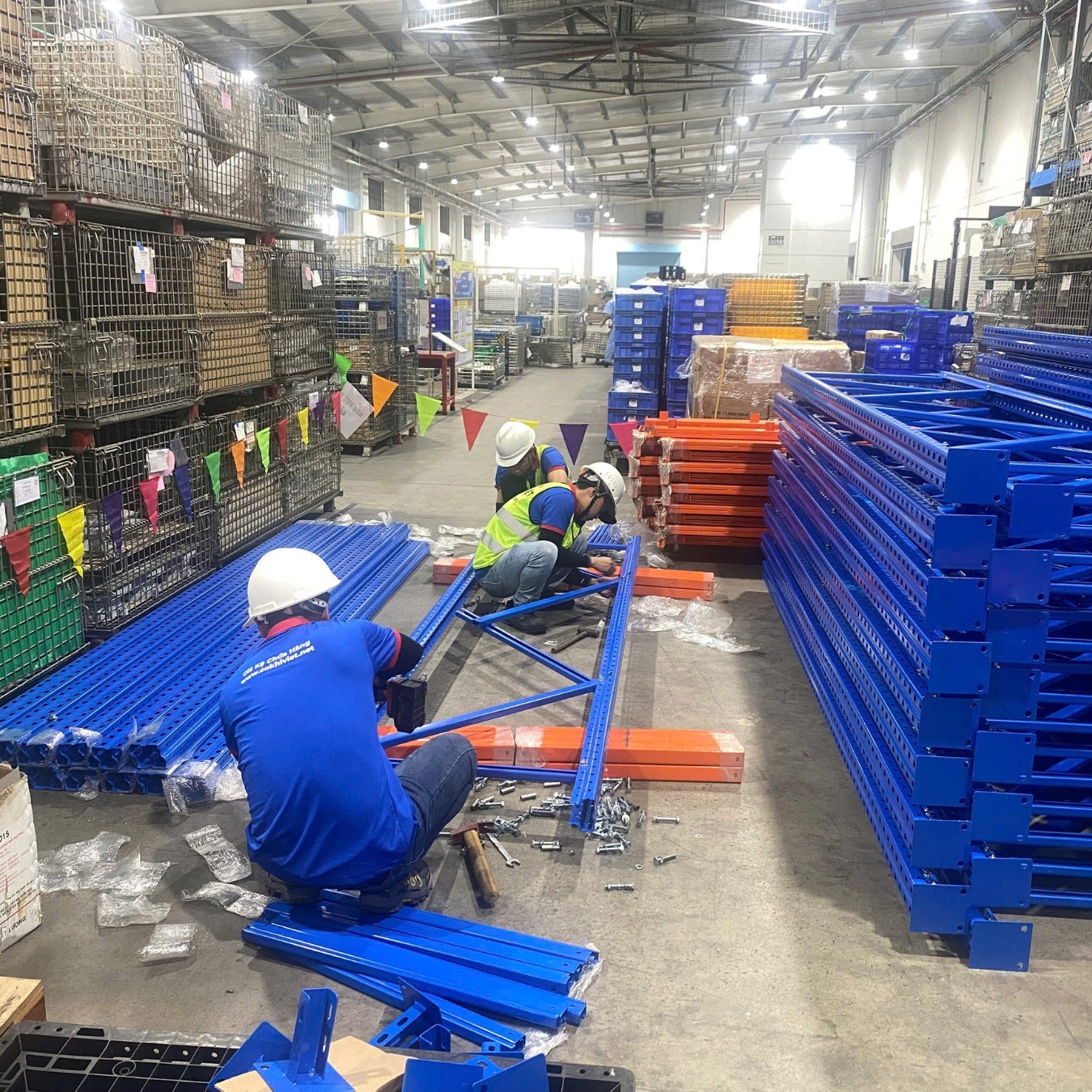

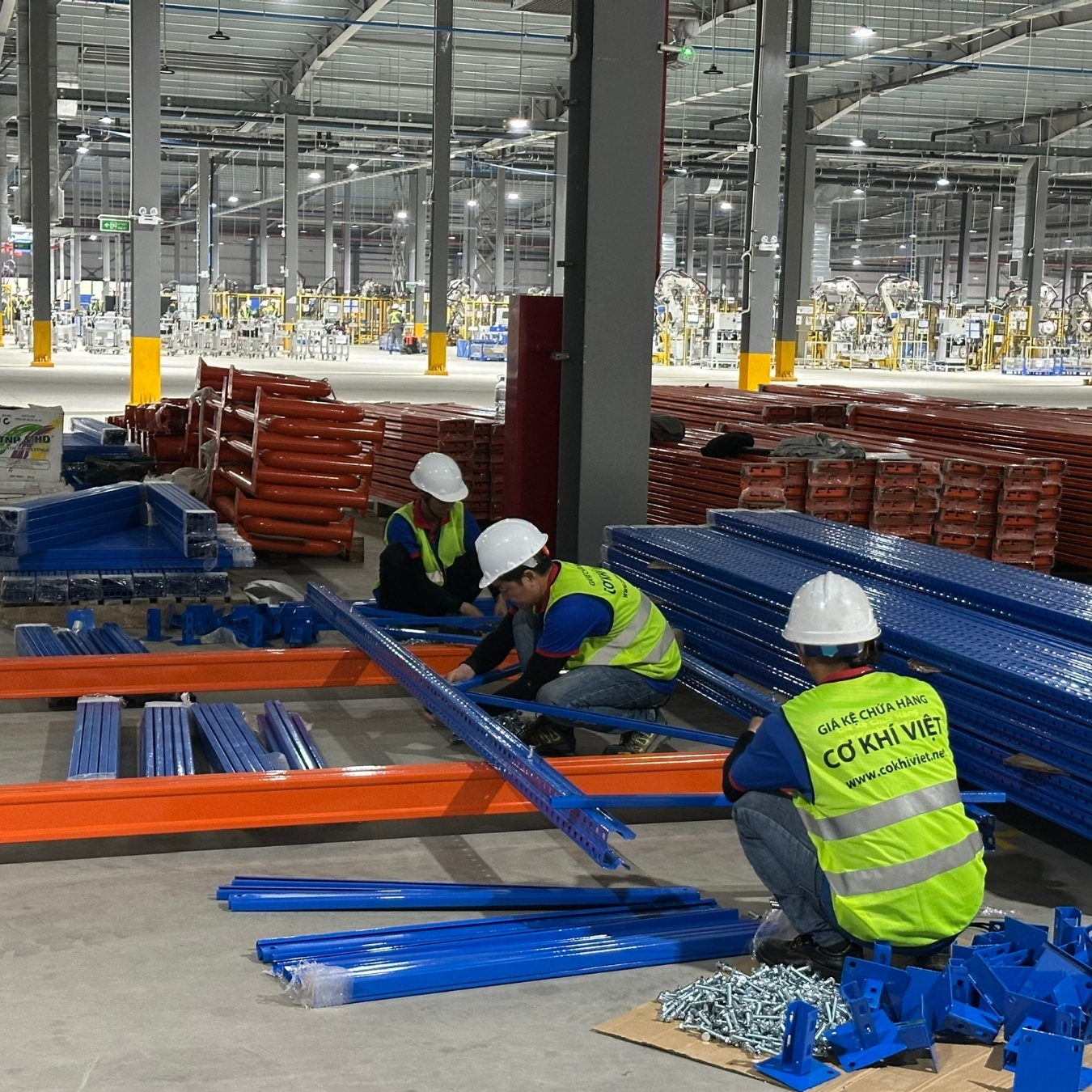

Warehouse Storage Installation
Pallet Racks Loading
Upright Frame Specifications
Beam Safety Lock Details
◆ Products Description

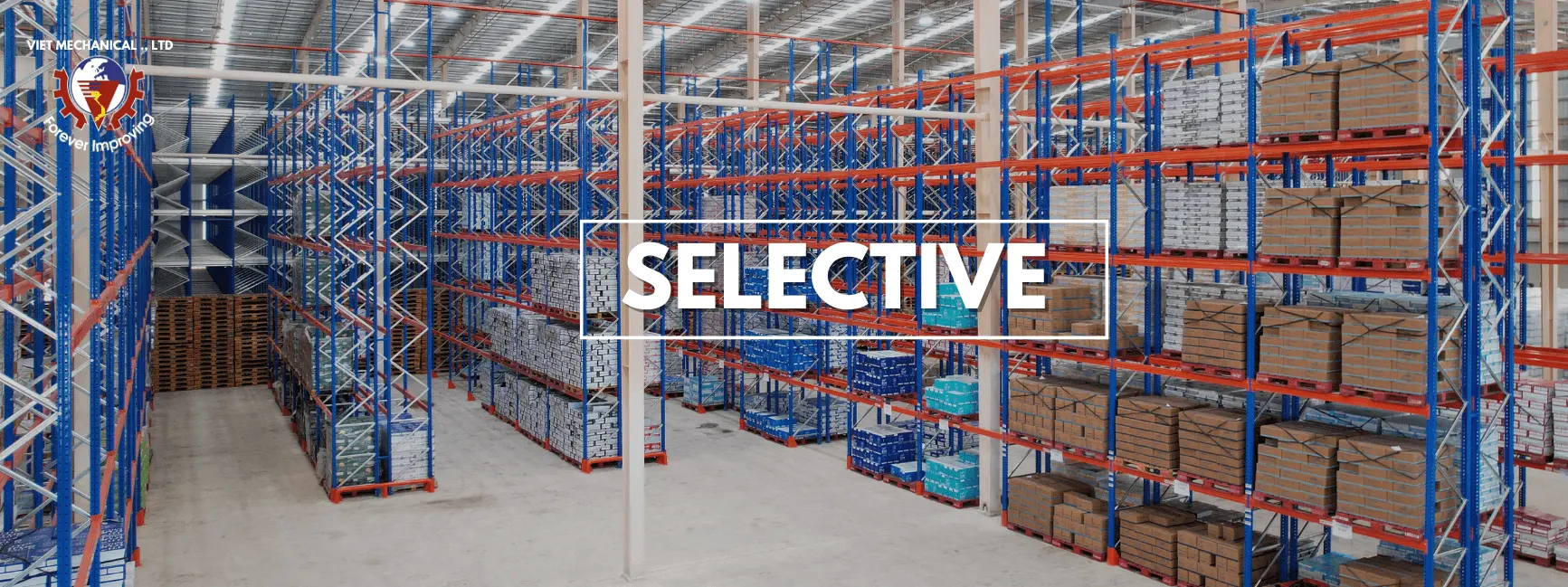

Product Details Overview
★ Upright/Beam Pallet Racking
Upright Frame Option 1
Upright Frame Option 2
Upright Frame Option 3
Model Number UPRIGHT OF PALLET RACK Weight Capacity 5,000 - 25,000kg (11023 - 11339lb)
Frame Structure Type 90*70mm (3.54" * 2.76"), 110*70mm (4.33" * 2.76"), 120*70 mm (4.72" * 2.76") Bolted Upright frame with Baseplate Height 2 - 12m (78" - 472")
Frame Punch Hole Type Pitch 2" (50.8mm) Surface Finish Powder coating & Galvanized
Depth 1.5 - 2.6mm - Customized 0.059" - 0.102" - Customized
◆ Product Components
Beam Connection Component
Upright Column Profile
Safety Locking Pin Component
Components Diagram
◆ Production Standards
Quality Compliance Certificate
Load Test Standards
Production Flowchart
◆ Human Resource
Engineering Team
Production Workshop Staff
Quality Inspection Team
◆ Packing & Delivery

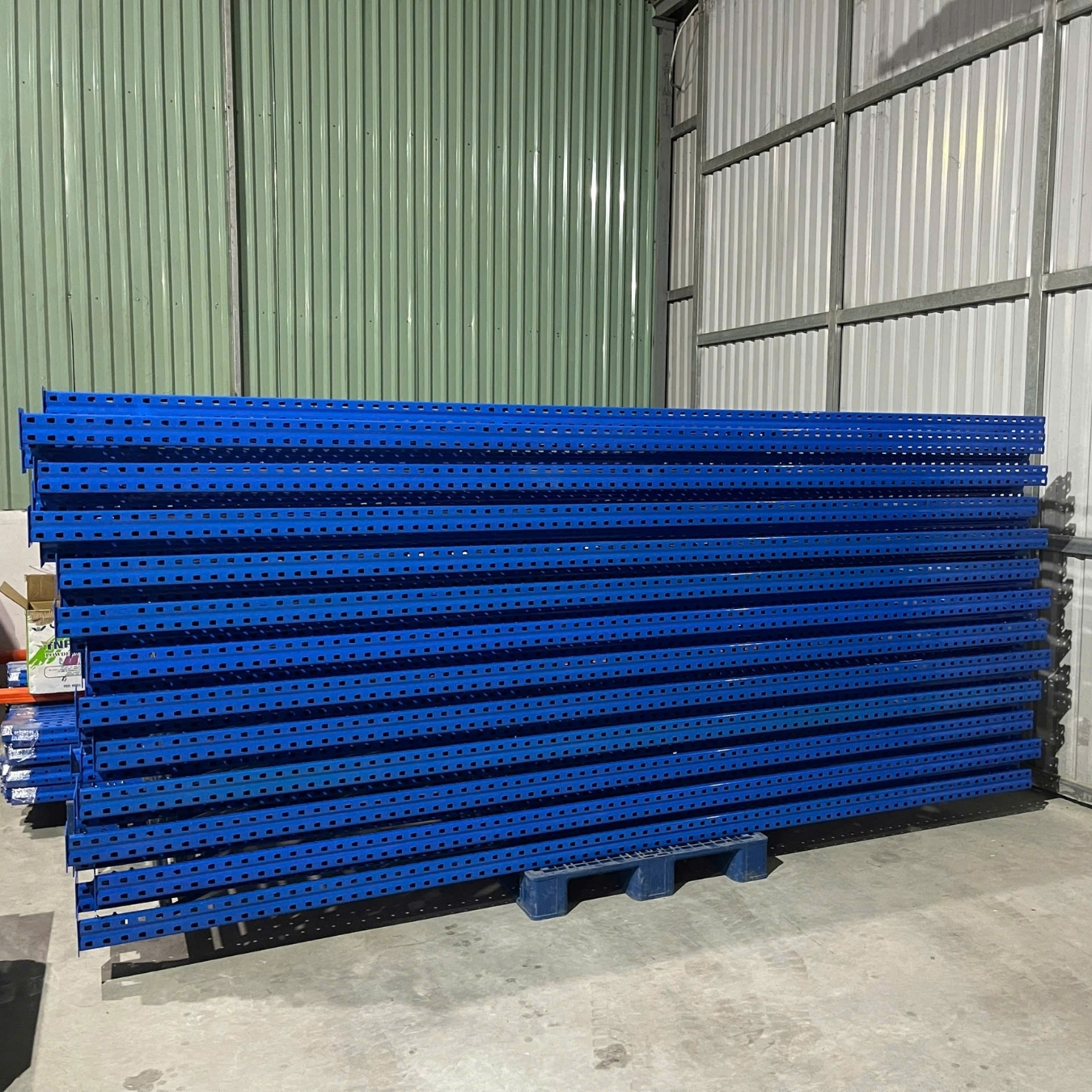

Racking Materials Bundling
Standard Packing Line
Container Loading & Dispatch
◆ Contact Us
Contact Support Representative
Contact online customer service, Get the latest product catalog!
◆ FAQ
FAQ Icon 1
FAQ Icon 2
? Frequently Asked Questions
Q1: What is the load capacity of this pallet racking system?
The load capacity of our pallet racks ranges from 5,000 kg to 25,000 kg (11,023 lbs to 113,391 lbs) per frame, depending on the specific profile dimensions, height, and load configurations chosen.
Q2: What are the standard dimensions for the upright frames?
Our standard upright frame profiles are available in 90*70mm, 110*70mm, and 120*70mm. The frame height can be customized from 2 to 12 meters, and the column steel thickness ranges from 1.5mm to 2.6mm to meet different weight demands.
Q3: Can the heights of the storage shelves be adjusted?
Yes. Our upright frames feature standard punch holes spaced at a 2-inch (50.8mm) pitch, allowing you to easily adjust the height of the load beams to accommodate pallets of varying sizes.
Q4: What surface finishes are available for the pallet racks?
We offer both high-quality, durable powder coating and galvanized surface finishes. This ensures optimal corrosion resistance, wear protection, and longevity in standard as well as cold-storage warehouses.
Q5: Are the frames shipped pre-assembled or knocked down?
Our upright frames are shipped in a bolted structure format to save on shipping volume and cost. Standard instructions are provided for fast, straightforward assembly and installation on site.
Q6: How do you package and secure the rack components for shipment?
All beams, upright columns, and smaller connection components are bundled securely with structural strapping and packed carefully using protective wrapping to prevent shifting or damage during maritime transit.
