Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
1 / 5
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking
Urgo Selective Pallet Rack Shelving, Storage Pallet Racking

Urgo Selective Pallet Rack Shelving, Storage Pallet Racking

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
19121706
Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
3-12m
Weight Capacity
500-4000kg
Closed
Open
Development
New Type
Serviceability
Common Use
Surface Treatment
Powder Coating
Feature
Corrosion Protection
Certification
CE
Transport Package
Exported Packing
Specification
Customized
HS Code
73089000
Production Capacity
80,000 Tons/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
2.000kg
Product Description
Selective pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.
Key Features
  • 100% accessibility to individual pallets
  • Easy picking at lower levels
  • Good storage density
  • Easily installed and repositioned
  • No special lift trucks required

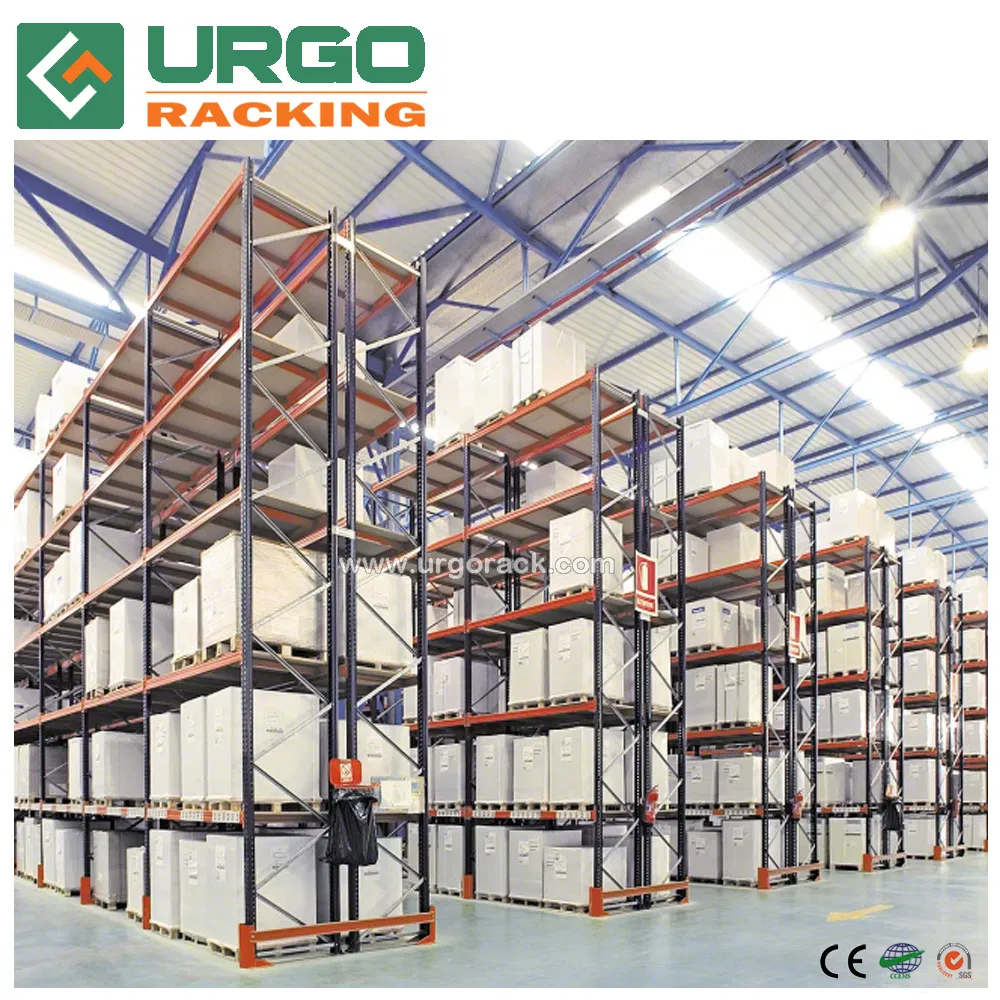

Selective Pallet Rack Shelving, Storage Pallet Racking
Column Profiles
Column Specification (mm) Thickness (mm) Upright Loading (kg)
W80 x D60 1.8-2.0 4000-6000 KG
W85 x D67 1.8-2.3 7500-12500 KG
W90 x D60 1.8-2.5 8000-10000 KG
W90 x D70 1.8-2.5 10000-12000 KG
W100 x D70 2.0-2.5 11000-14000 KG
W120 x D95 2.3-3.0 17000-21000KG
Beam Profiles - Box Beam
Loading (kg)
Specification (mm)		 The Length of Box Beam (mm)
1500 2000 2300 2500 2700 3000 3300 3600 3900
80 x 50 x 1.5 3000 1740 1340 1160 1010 - - - -
90 x 50 x 1.5 4080 2350 1800 1645 1345 1010 850 - -
100 x 50 x 1.5 - 2960 2260 1930 1680 1380 1040 - -
110 x 50 x 1.5 - - 2640 2250 1950 1600 1340 1140 -
120 x 50 x 1.5 - - 3200 2730 2358 1930 1518 1379 -
140 x 50 x 1.5 - - - 3868 3330 2720 2370 2020 -
160 x 50 x 1.5 - - - - 4220 3690 2970 2600 2340
160 x 50 x 1.8 - - - - - 4400 3420 3020 2590
160 x 50 x 2.0 - - - - - 4130 4170 3320 2840
Beam Profiles - P Box Beam
Loading (kg)
Specification (mm)		 The Length of P Box Beam (mm)
1500 2000 2300 2500 2700 3000 3300 3600 3900
100 x 50 x 1.5 4470 2512 1900 1610 1380 1120 920 - -
110 x 50 x 1.5 5484 3085 2332 1974 1693 1371 1133 952 -
120 x 50 x 1.5 - 3910 2957 2503 2146 1738 1436 1207 1030
140 x 50 x 1.5 - 5722 4330 3662 3140 2543 2102 1766 1505
Packaging and Shipping

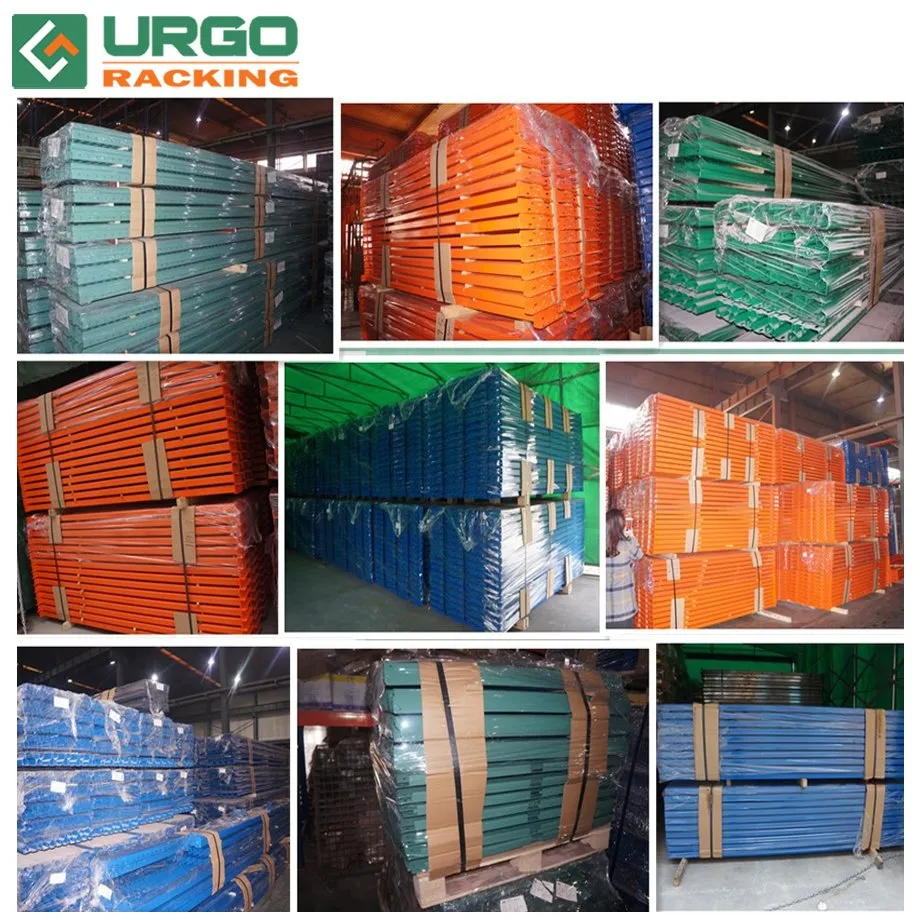

Packaging and Shipping for Pallet Racking
Frequently Asked Questions
Q What makes your storage systems different from other suppliers?
1) Excellent Service: We provide quick, hassle-free quotes with prices promised within 12 hours.
2) Quick Manufacturing: Standard orders are scheduled for production within 15 days, ensuring guaranteed delivery times based on formal agreements.
3) Specialized Export Packaging: We utilize plastic clips on beams to protect surfaces during transit, and wrap upright columns in protective film.
4) Long-Term Warranty: High manufacturing and design standards allow us to offer an industry-leading 10-year warranty under normal operating conditions.
Q Can I monitor the progress and status of my order?
Yes. We regularly send production updates, status information, and photos at various stages of manufacture so you remain fully updated.
Q Are product samples available for quality checks?
Yes, we can send material sections and samples for your reference via express delivery.
Q Is a galvanized finish option available for these pallet racks?
Yes. Pallet racking frames, upright posts, and structural bracing can all be supplied with a durable galvanized finish.
Q How can I get a quick quotation for my pallet racking project?
To receive an accurate and timely estimate, please provide the following details:
1) Required Pallet Racking Dimensions: Height * Depth * Length?
2) Total number of storage levels?
3) Load capacity required per level?
4) Total quantity of racking bays needed?
