Overview
Basic Info.
Model NO.Pallet Flow Racking
StructureRack
TypePush Back Rack
MobilityAdjustable
Height>15m
Weight500kg
ClosedOpen
DevelopmentNew Type
ServiceabilityCommon Use
Width1800/2700/3600mm or Customized
DepthMax 20 Pallet Depth or Customized
Upright80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75
Beam RangeHeight: 80~160mm; Width: 50mm; Thickness: 2.0-2.5mm
Pitch Holes50/50.8/76.2/75mm
Track Angle3 Degrees-5 Degrees
Surface FinishPowder Coated/ Galvanized
ColorBlue, Orange or Customized: All Ral Color
FeatureDurable, Corrosion Protection
OEM&ODMYes
Load Per Roller150kg/Roller
Roller Weight150-1500kg
Roller Standard300/1800 Rollers
Transport PackageCardboard Ends and Steel Bundles
OriginChina
HS Code73089000
Packaging & Delivery
Package Size2000.00cm * 1200.00cm * 3000.00cm
Package Gross Weight100.000kg
Product Description
We specialize in offering a wide range of high-quality storage solutions, including:
Warehouse Racking
Industrial Racking
Shelving
Automatic Shuttle Systems
Warehouse Mezzanines
Cantilever Racks
Steel Pallets
Stacking Racks
Stacking Pallets
Metal Containers
Pallet Trucks
Tool Racks
Live Storage Systems
Our products are designed with precision, offering a sensible structure, modern design, reliable quality, and high stability. They are widely used for efficient storage and handling in supermarkets, logistics centers, warehouses, offices, libraries, and more.

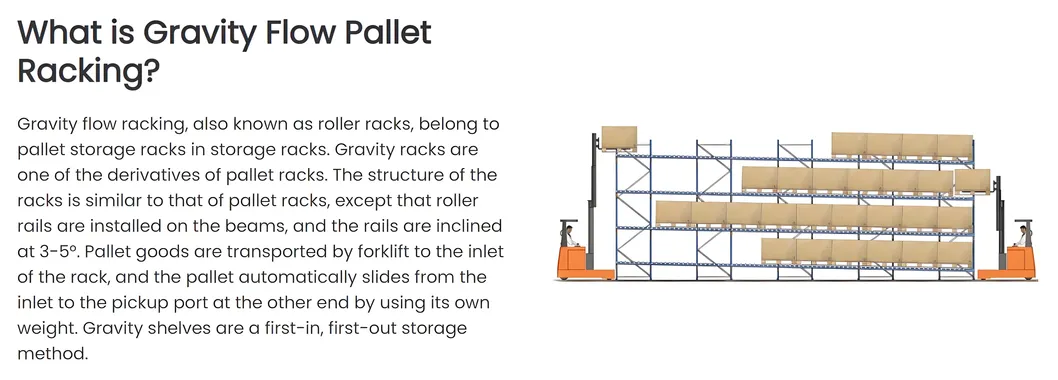

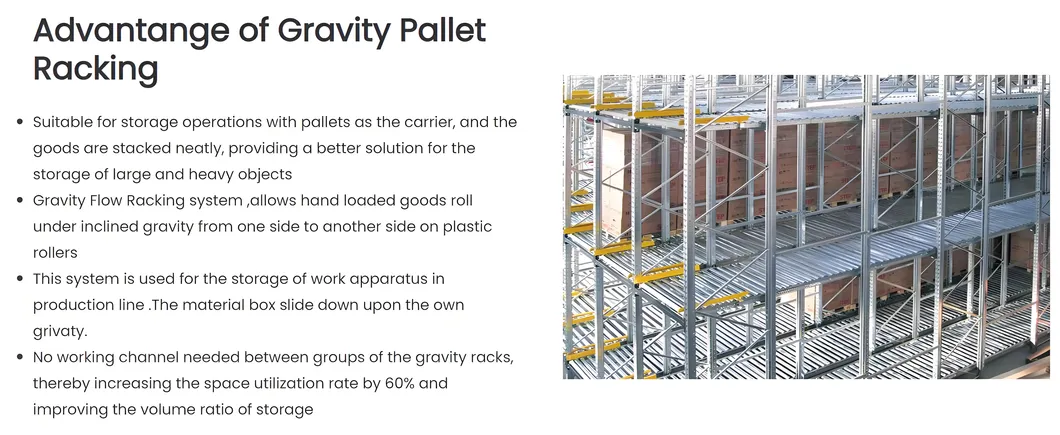

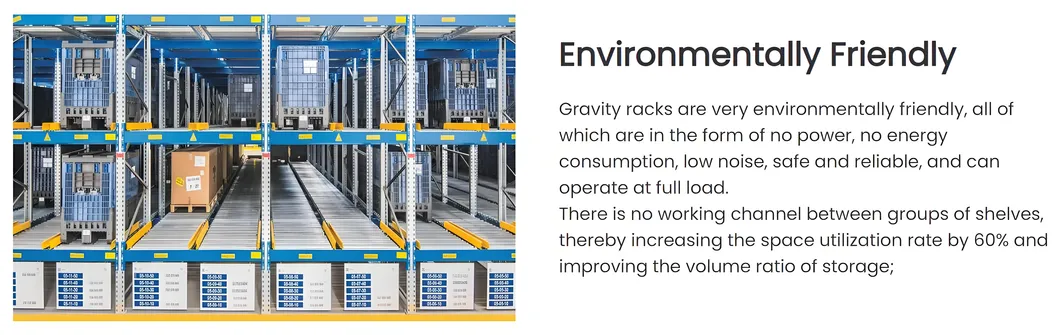

Product Features
Specification
| Products Support |
Details & Policy |
| Free Consultation |
Yes, Any Questions You Can Consult With Free. |
| Support For Custom |
Yes |
| Free Design |
Yes, CAD/PDF/3D Drawing |
| Free Sample |
Available (Delivery Cost By Buyer) |
| 3D Sample |
Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error |
| Pre-installation |
Yes |
| Capacity Test |
Yes, If Needed. |
| OEM&ODM |
Available |
| Lead Time |
15-20 Days For Regular Pallet Racking, One Container |
| Installation Service |
Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed. |
| Maintenance Service |
Yes, We Submit a Free Maintenance Guide. |
| Repair Service |
Yes, We Submit Repair Services. |

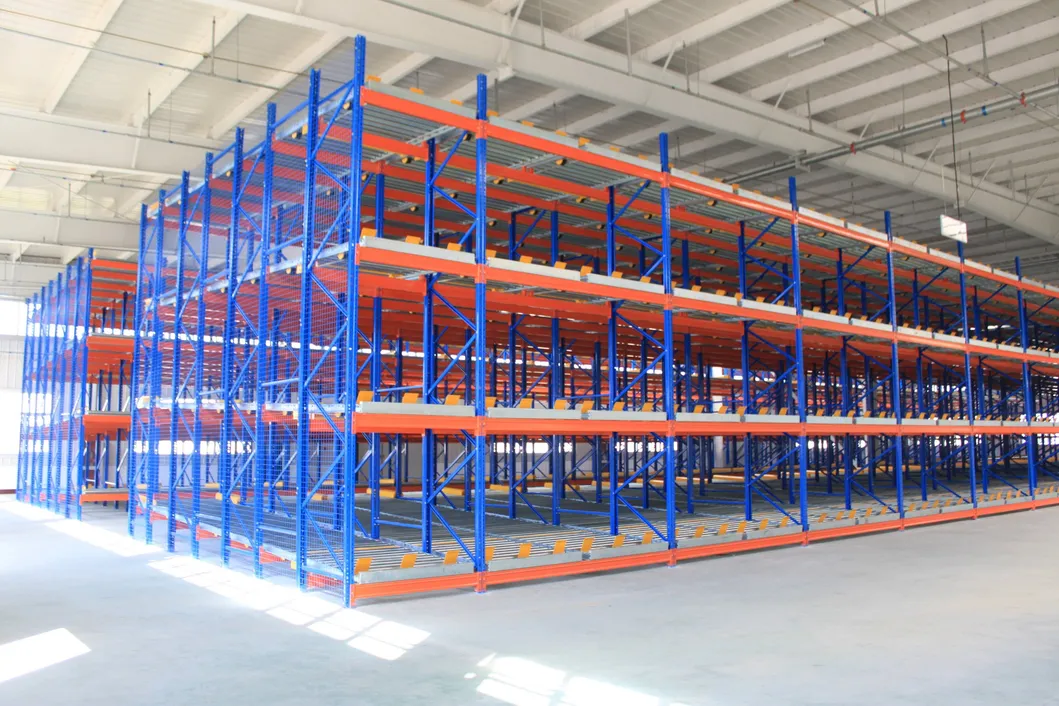

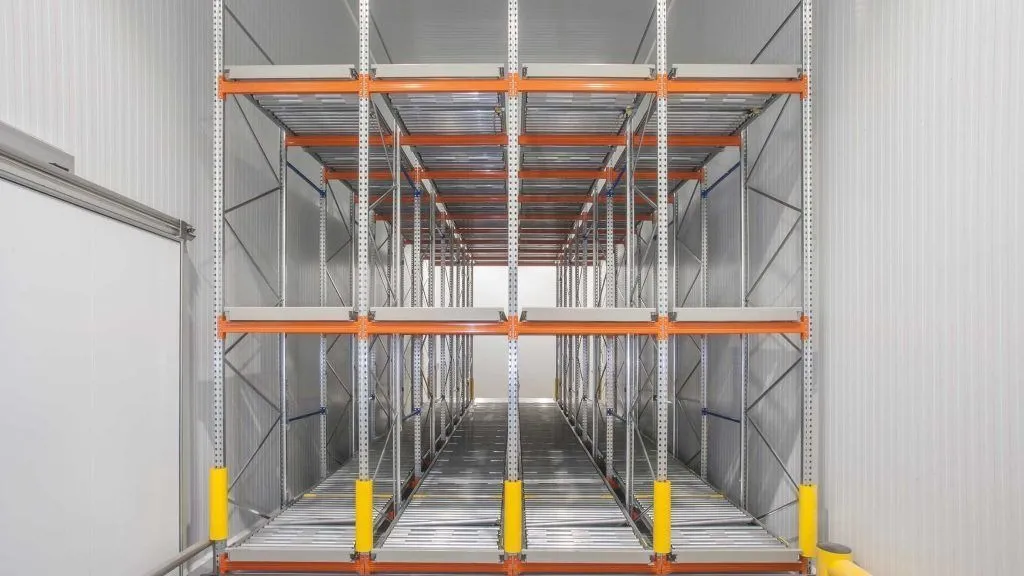

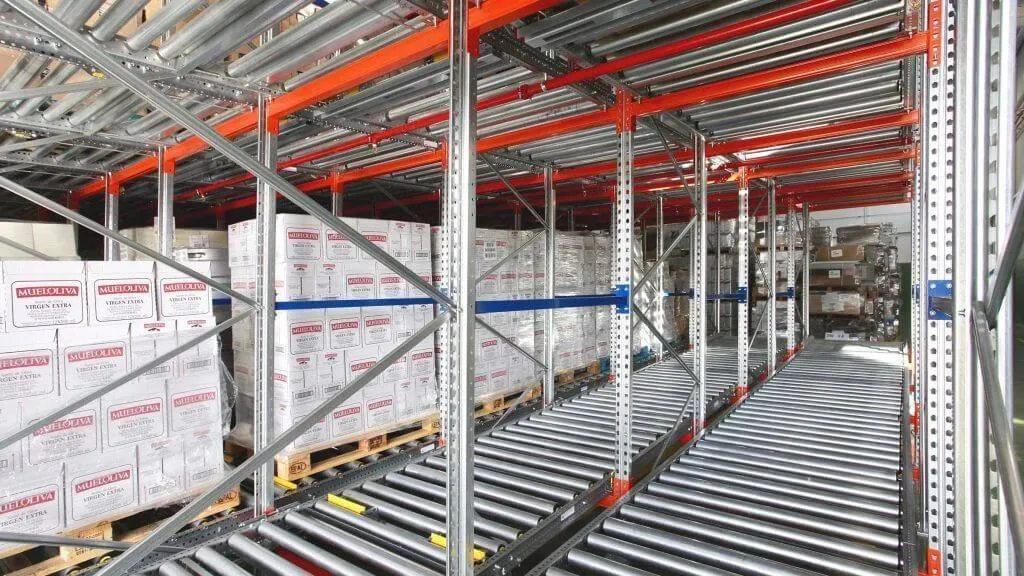

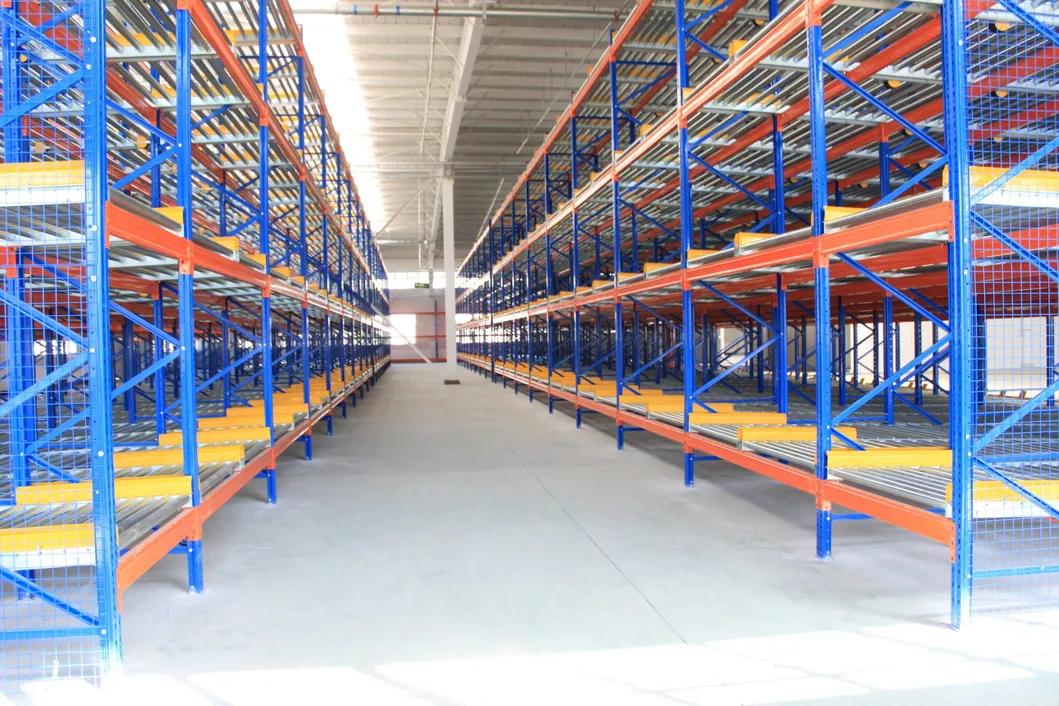

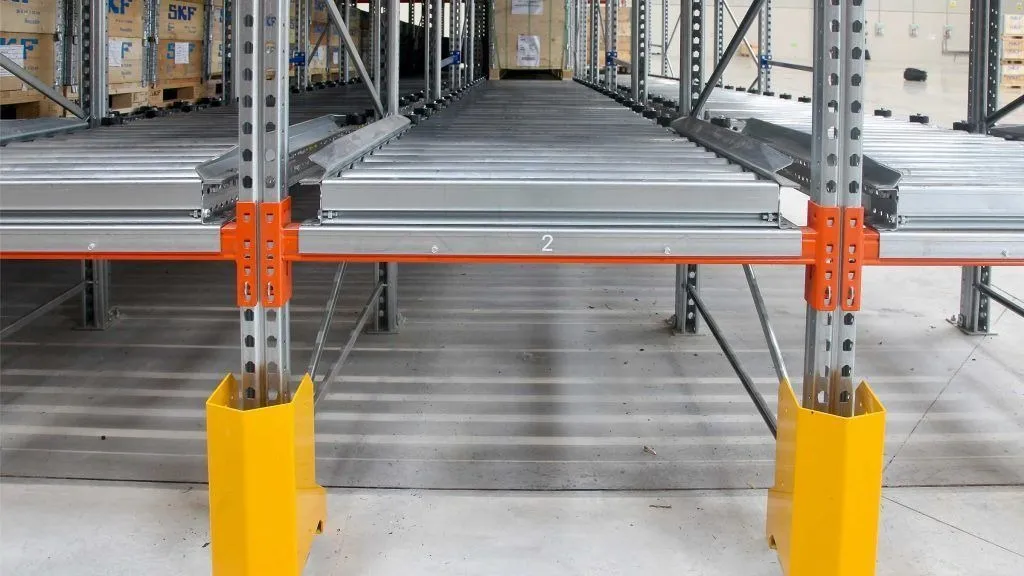

Product Case
Recommended Products

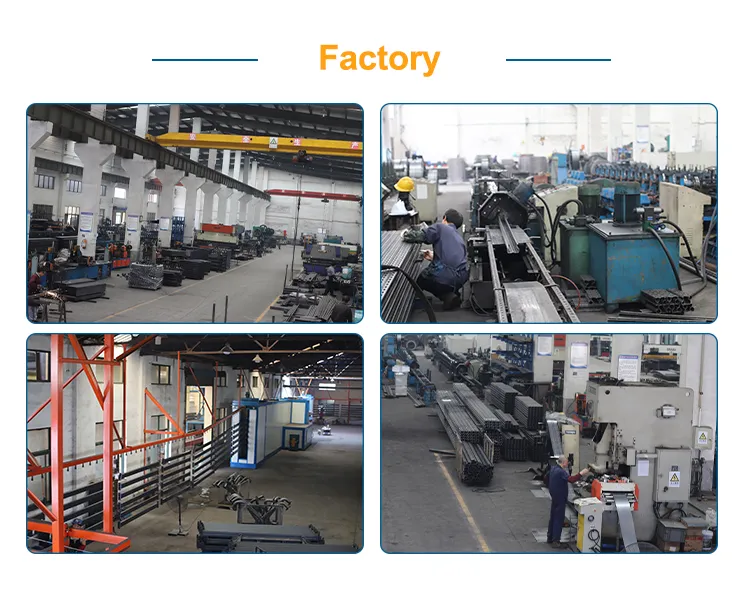

Company Profile
FAQ
What considerations are important for Pallet Flow Racking?
- Track Length: The total depth of the rack should be carefully considered. Excessively long tracks can hinder the smooth sliding of goods. If the track length is too great and the quantity of goods is insufficient, the speed of the sliding pallets can increase significantly, leading to a higher risk of items overturning.
- Damping Devices: For longer tracks, it is advisable to install damping mechanisms in the middle of the tracks to control the speed of the sliding goods and prevent them from overturning. Cushioning and separation devices should be installed at the lowest point of the slope to minimize impact force and prevent potential flipping.
- Rack Height: Pallet Flow Racking should not be excessively high, with a typical maximum height of 6 meters. The weight of individual pallets should ideally be limited to approximately 1,000 kg to maintain stability and ease of operation.
What types of products are suitable for Pallet Flow Racking?
Gravity rack systems are ideal for storing large quantities of bulk goods with few product varieties. They are particularly suitable for industries that require efficient access to stored goods. Common applications include the automotive, food, and pharmaceutical industries, as well as cold storage facilities. These systems offer high warehouse space utilization, typically exceeding 75%.
Can the dimensions of Pallet Flow Racking be customized?
Yes, Pallet Flow Racking can be fully customized to meet specific customer requirements, including adjustments to height, length, width, and other dimensions. To facilitate an efficient design process, we recommend providing:
- Pallet dimensions (length, width, height)
- Warehouse dimensions (length, width, height)
- Details about the goods (type, weight, shape)
- Environmental considerations (e.g., humidity, temperature, corrosion resistance, or any other specific warehouse conditions)
What is the typical delivery time?
The standard delivery time for Pallet Flow Racking is 20-25 days. For customized orders, the delivery time will vary depending on the complexity of the requirements and the outcome of the consultation process.
Are free samples and customized design options available?
Yes. Free consultation and layout designs (CAD/PDF/3D Drawing) are supported. Samples are available, and delivery costs are typically covered by the buyer. We also support 1:1 3D samples to save time and reduce trial-and-error costs.
What services are provided for installation and maintenance?
We provide complete installation support by submitting detailed installation drawings or videos. If necessary, engineers can be sent to your site. A free maintenance guide and optional repair services are also available to keep your racking systems running safely.
