Core Features

• Pure gravity drive: No motors or electronic components, achieving zero energy use, low noise, high stability, and no power loss.
• Mandatory FIFO: Ensures clear batch management, avoiding overstock and expiration, adapting to shelf-life control.
• Dense storage: Cancels forklift aisles, boosting space use by 30%–60% over standard beam racking.
• Optimized safety: Separation of loading and unloading, eliminating the need for forklifts inside, ensuring clear routes and reducing collision risks by 80%.
• Smooth control: Tracks with dampers, bumpers, separators, and guards enable stable sliding, anti-impact, and easy picking.
• Highly customizable: Custom height, layers, and load capacities. Compatible with pallets, forklifts, and AGV operations.

Upgraded Warehousing Efficiency

Simultaneous loading/unloading reduces forklift backtracking and waiting, boosting handling efficiency by 40%. No manual pallet flow reduces labor costs, achieving semi-automated operations.

Maximized Space Utilization

High-density design increases cargo positions and storage density near drive-in racking levels, retaining FIFO and standardized management.

Lower Operational Costs

No electrical equipment, no motor or control system maintenance, near-zero maintenance costs. High-grade steel structure is wear/corrosion-resistant, reducing replacement costs.

Comprehensive Cargo Protection

Protective components and uniform sliding reduce collision/extrusion damage, improve intact rates, ideal for fragile, vulnerable, or high-value goods.

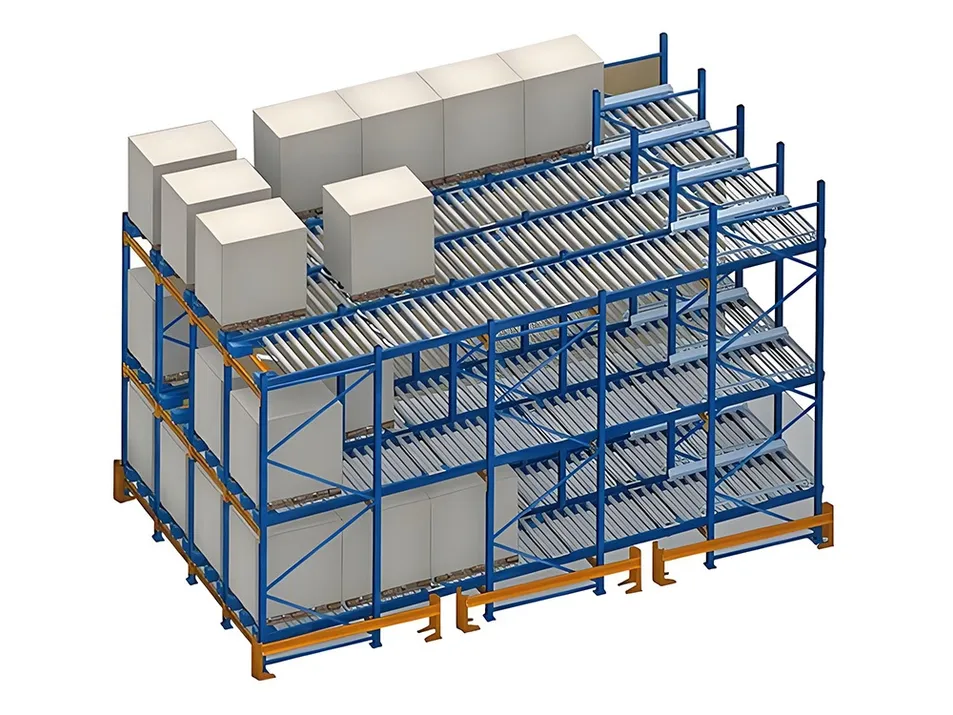

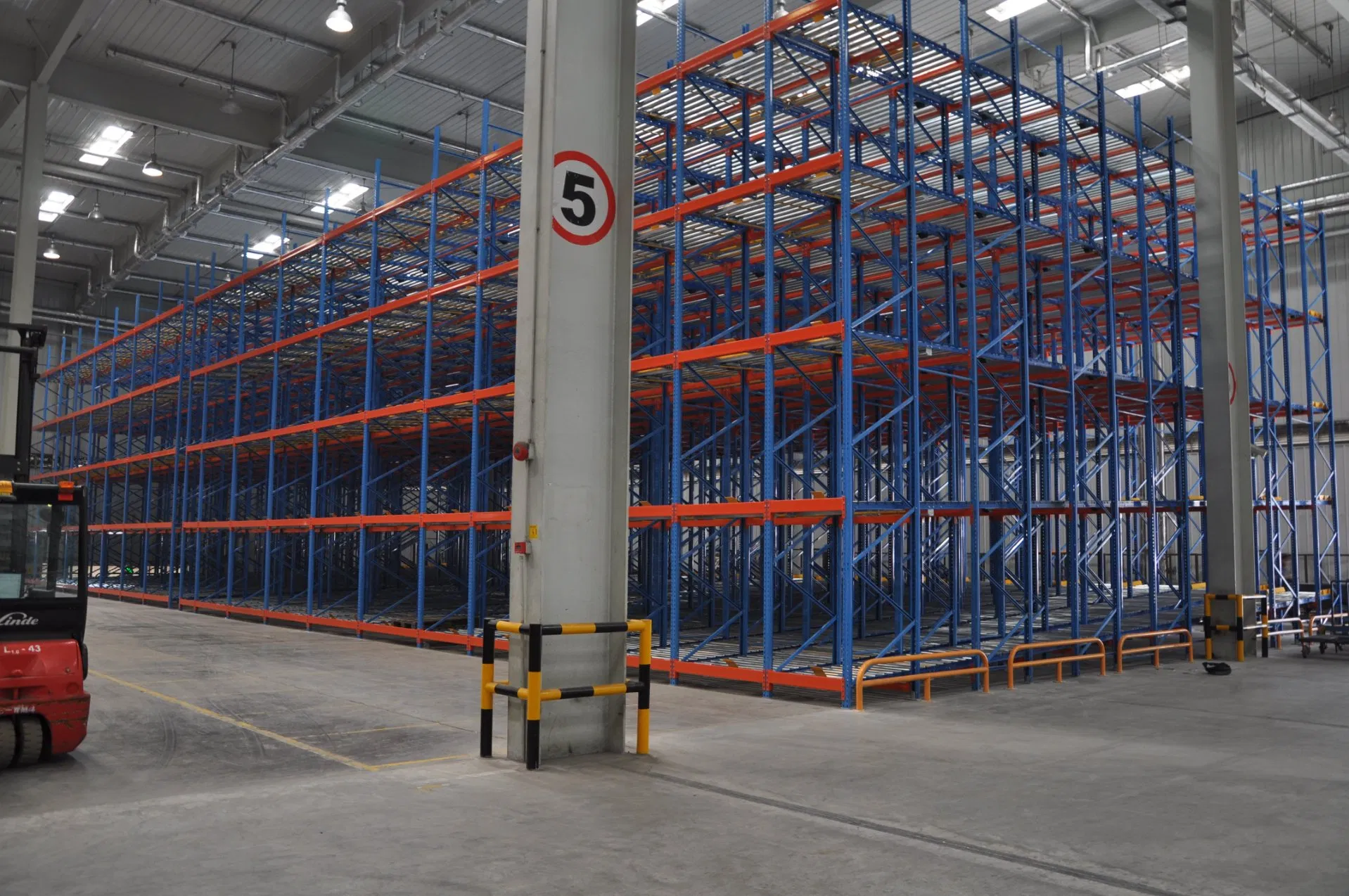

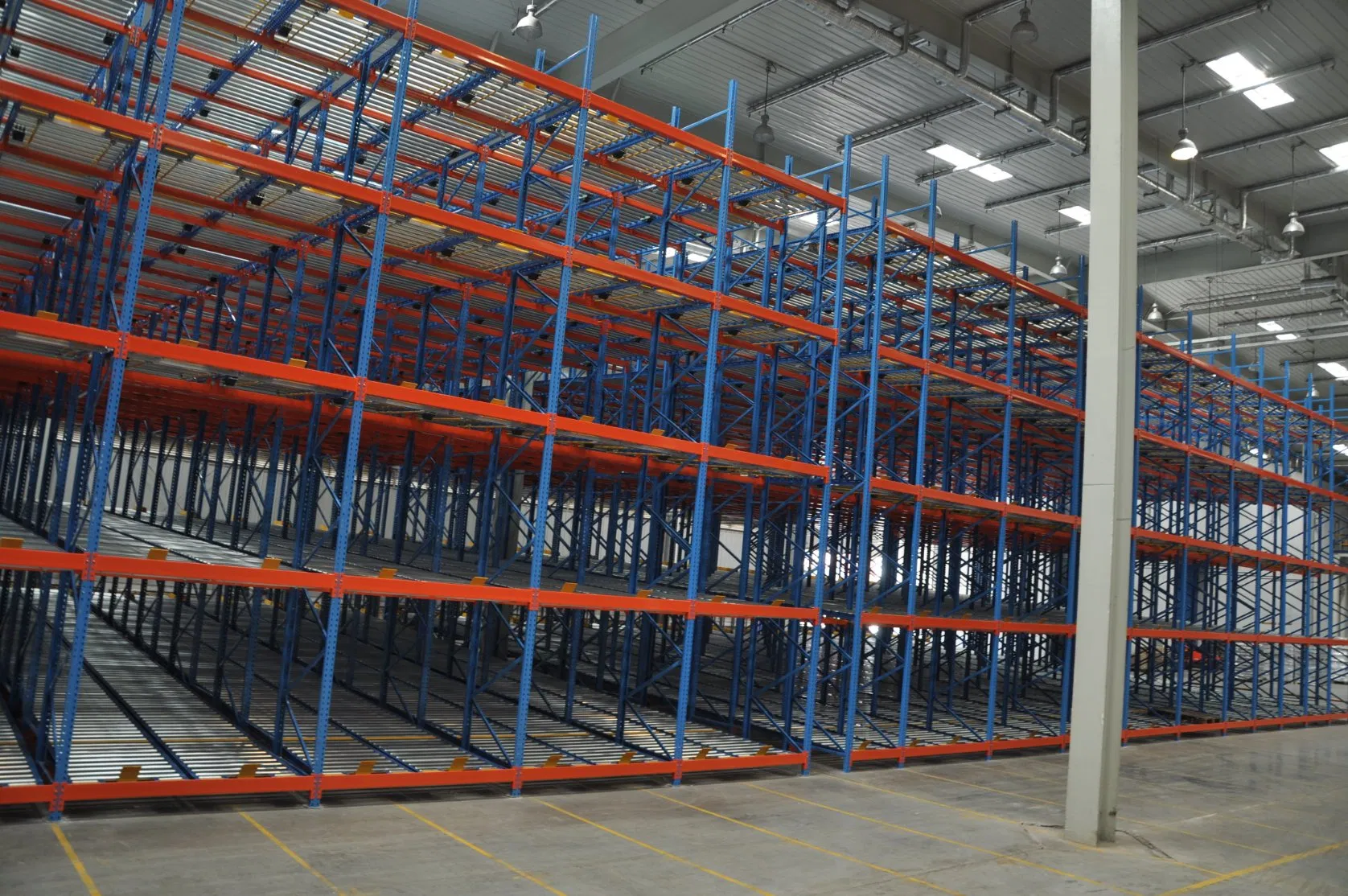

• Heavy-duty cold-rolled steel gravity flow racking: Made of Q235B steel, with a pallet load of 800–1500kg, height 6–10m, ideal for heavy pallet storage.
• Cold storage-specific gravity flow racking: Uses cold-resistant coating/stainless steel, with anti-freezing dampers, for -18℃ cold storage without embrittlement.
• Light/medium-duty gravity flow racking: Handles a pallet load of 500–800kg, height ≤6m, for small/medium warehouses and e-commerce storage.
• Narrow aisle gravity flow racking: Optimized for narrow aisles with adjusted track width, enhancing space use, suitable for taller warehouses.

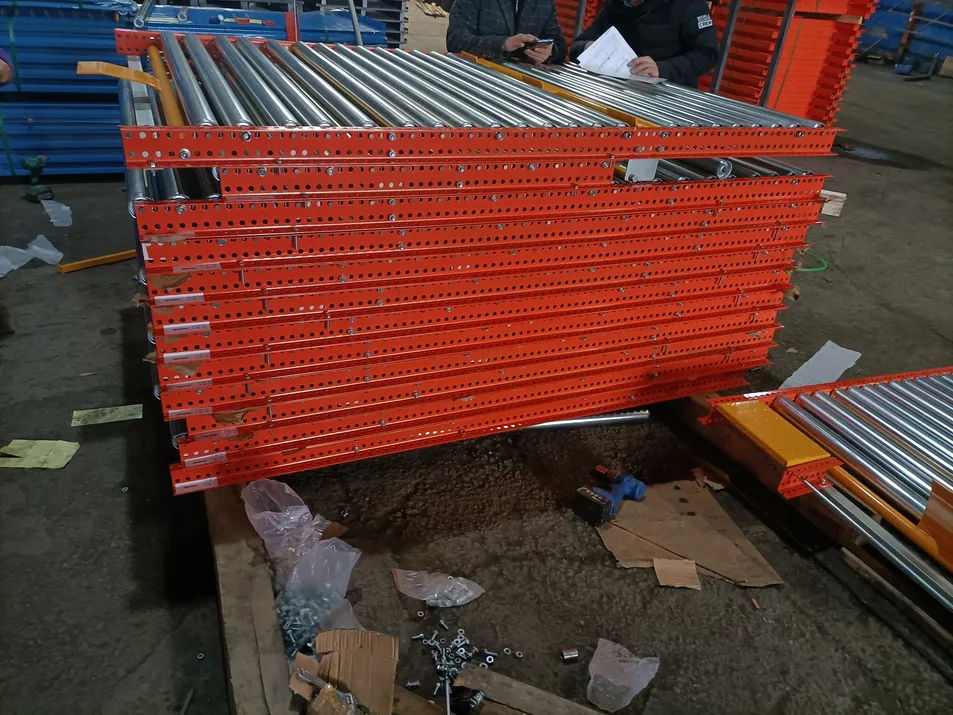

Core Safety & Auxiliary Accessories

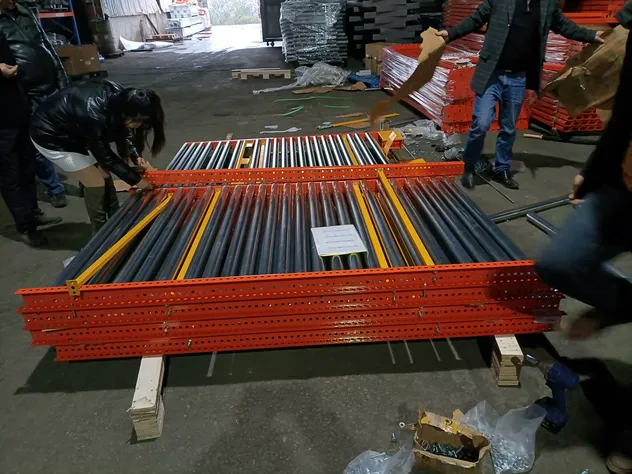

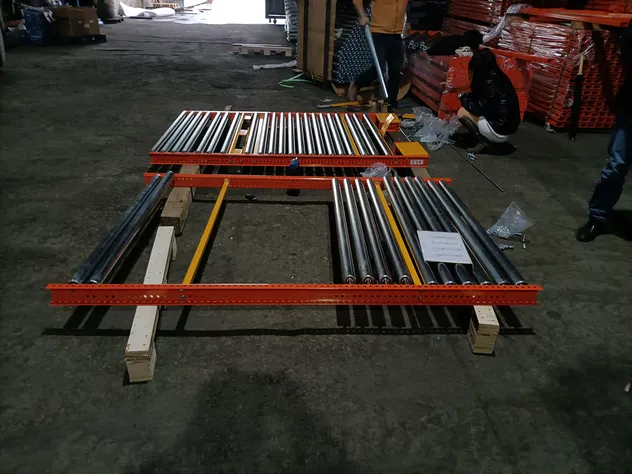

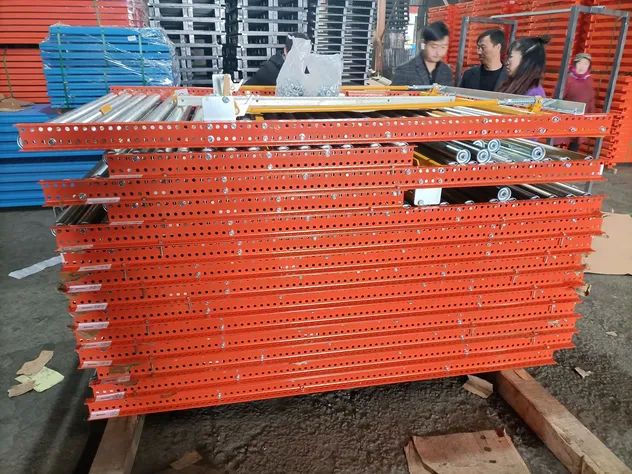

Speed dampers, end bumpers, pallet separators, anti-derailment guards, rack protectors, safety pins, roller track parts, pallet stoppers, mesh panels for non-pallet goods, and access ladders.

Environmental Parameters

• Normal Environment: Temp 0–35℃; Humidity ≤85%
• Low-temp Environment: Temp ≤-18℃ (requires specific steel and anti-freezing dampers)
• Ground Conditions: Flat/hardened ground with a load capacity of ≥2t/cbm

• Installation & Site: Ensure a flat, strong warehouse floor. Keep lanes clear. Professionals must perform the installation.

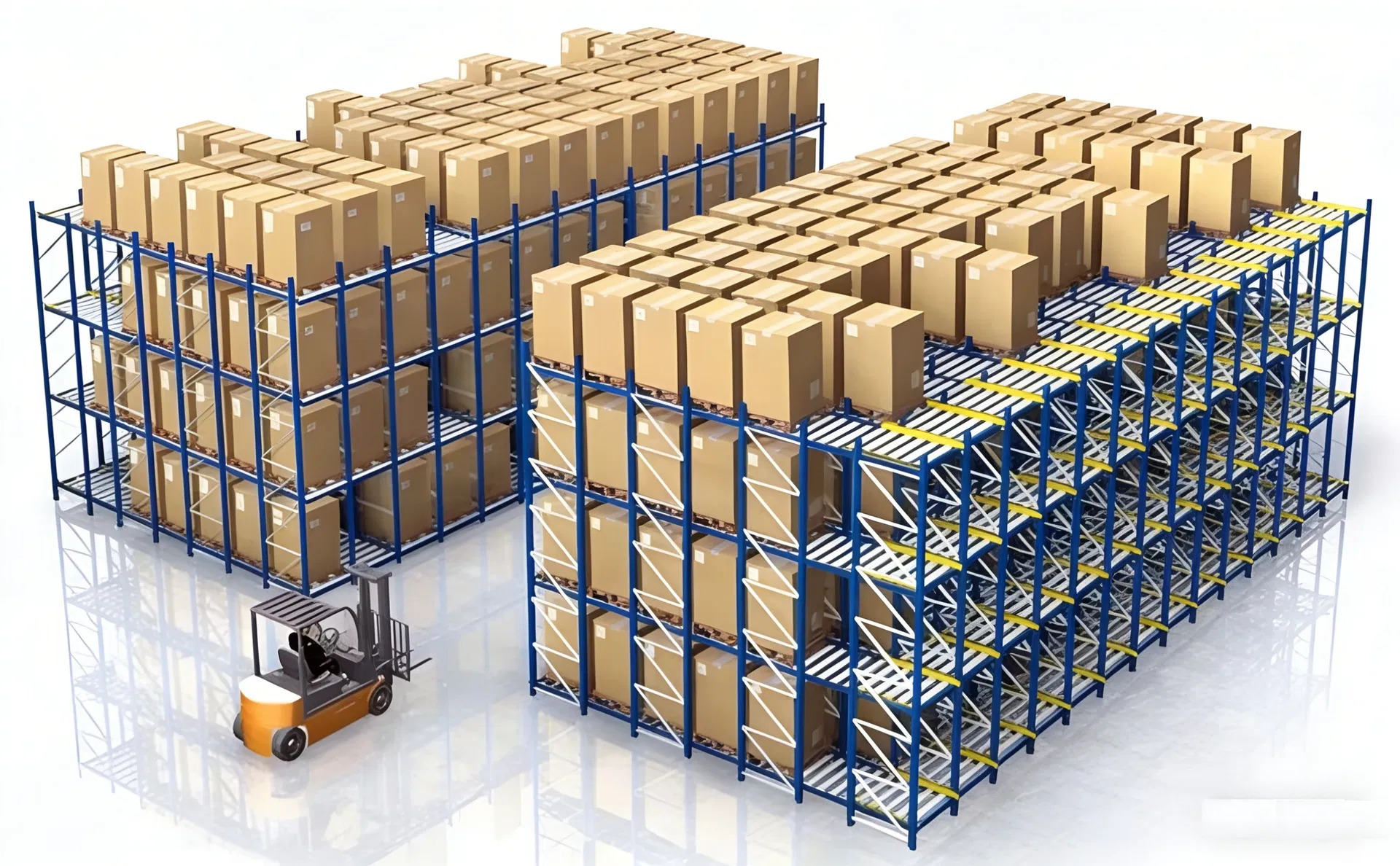

• Operation: Avoid overloads and non-standard pallets. Operate forklifts carefully. Follow strict FIFO rules.
• Daily Maintenance: Check rollers, dampers, and stoppers regularly. Keep components clean and lubricated in a timely manner.
• Safety: Display clear safety signs. Prohibit unauthorized access. Cease use immediately if any structural damage is detected.

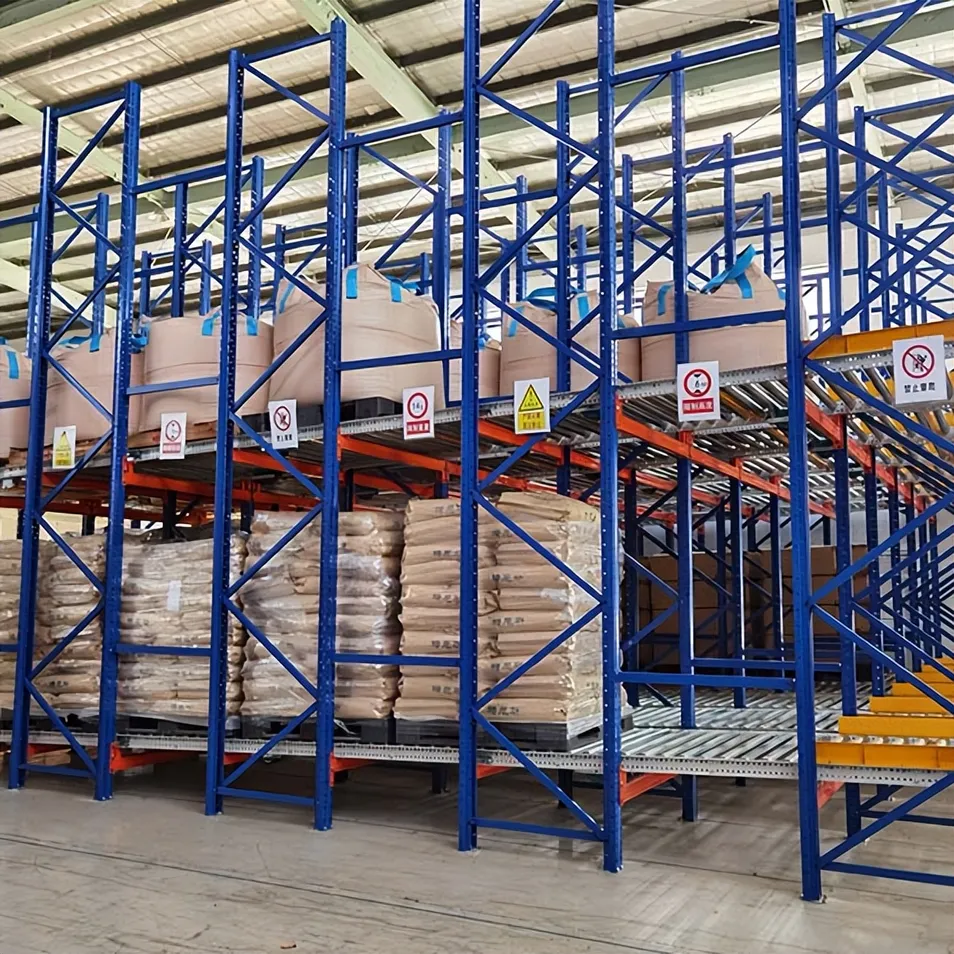

• After-Sales Support: Provide photos or videos for operational issues. Contact customer service for spare parts and direct assistance.

• Warranty Period: Warranty for 12 months from shipment or final acceptance. Repair/replace defects for free (excludes improper use, human error, or natural disasters).
• Technical Support: 24-hour online support via email or video call. Operation and installation manuals provided.
• Spare Parts Supply: Critical spares are supplied with the main equipment for emergencies. Long-term parts supply is available at factory cost.

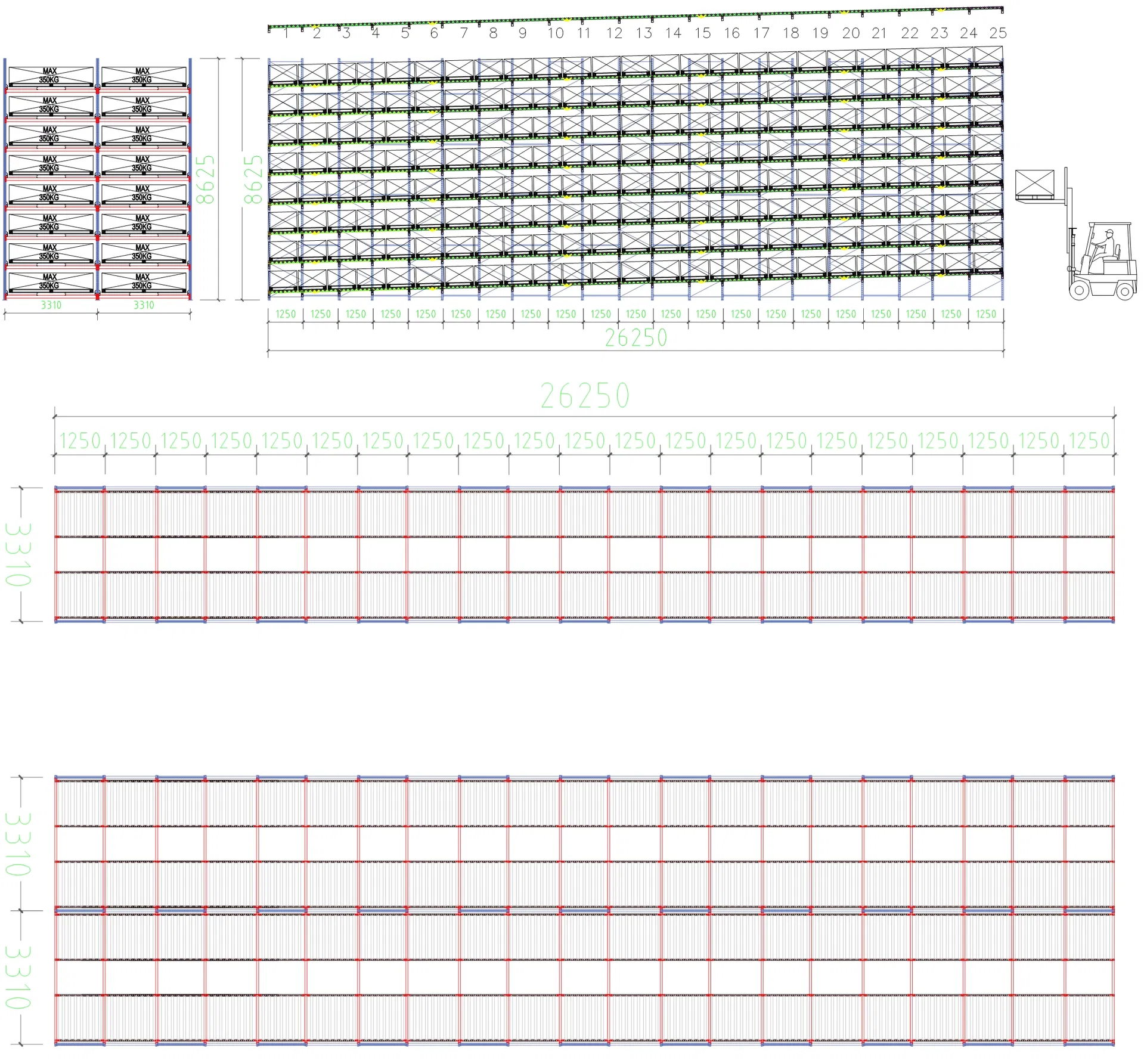

• Installation & Training: Detailed structural drawings provided with step-by-step guidance. Online or on-site operator training available.

1. Goods & Pallet Information

• Total weight per pallet (including pallet weight): e.g., 800kg / 1000kg / 1500kg
• Pallet dimensions: Length × Width (e.g., 1200×1000mm)
• Goods dimensions: Length × Width × Height (including pallet)
• Storage mode: FIFO (First-In-First-Out) / LIFO (Last-In-First-Out)

2. Warehouse & Site Conditions

• Clear warehouse height: To determine total rack height
• Available storage area: Length × Width (meters)
• Forklift type: Counterbalance / Reach / Narrow aisle truck
• Operation space: Reserve ≥2.5m at the loading end
