Warehouse Storage Pallet Flow Racking Roller Gravity Pallet Rack

1 / 5

Warehouse Storage Pallet Flow Racking Roller Gravity Pallet Rack

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

17001233

Structure

Rack

Type

Pallet Racking

Mobility

Adjustable

Height

3-12m

Weight

500-4000kg

Closed

Open

Development

New Type

Serviceability

Common Use

Surface Treatment

Powder Coating

Feature

Corrosion Protection

Certification

Transport Package

Exported Packing

Specification

customized

HS Code

73089000

Production Capacity

80000tons/Year

Product Description

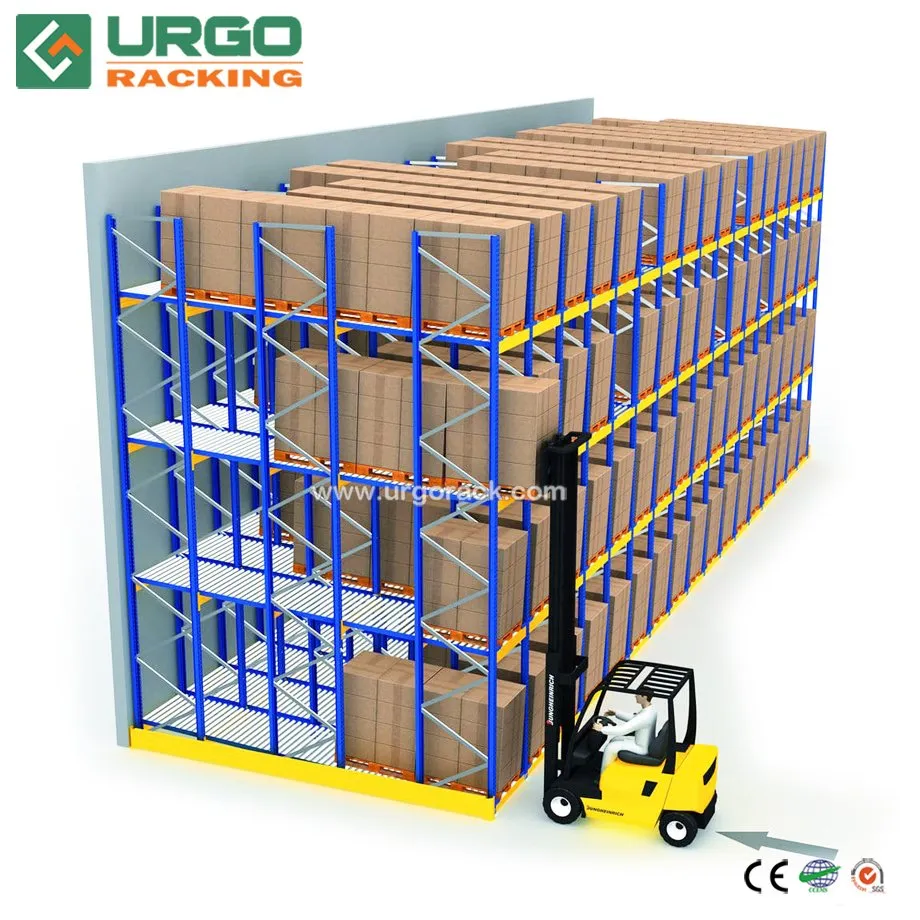

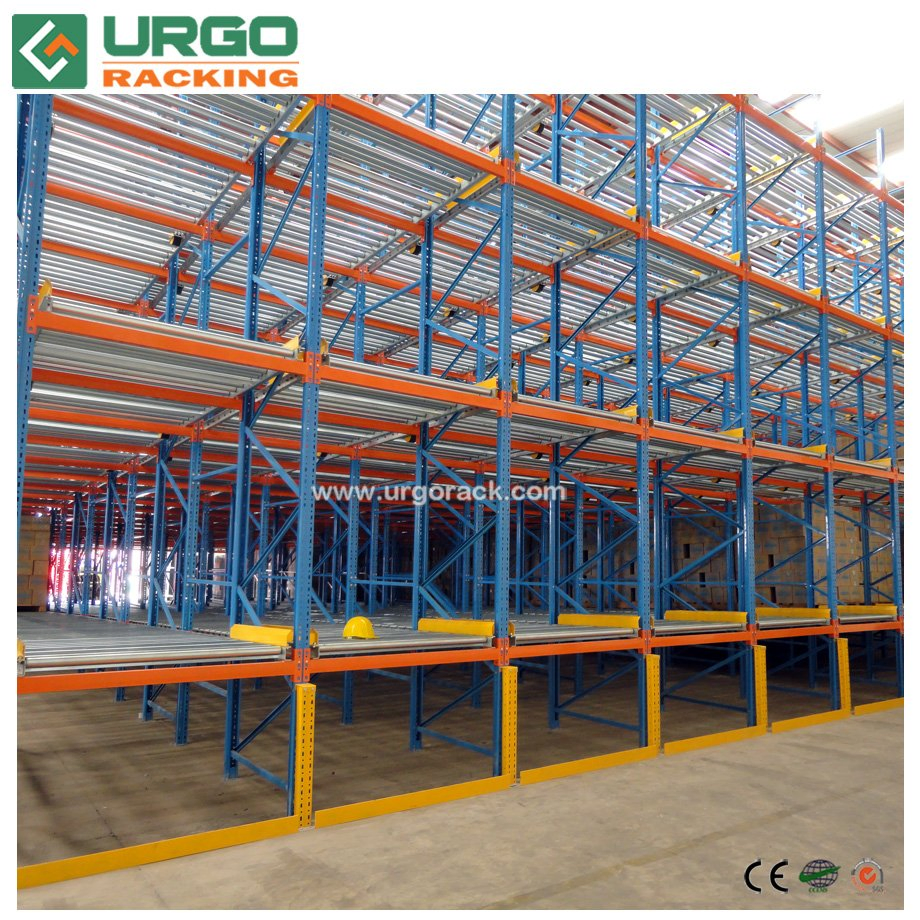

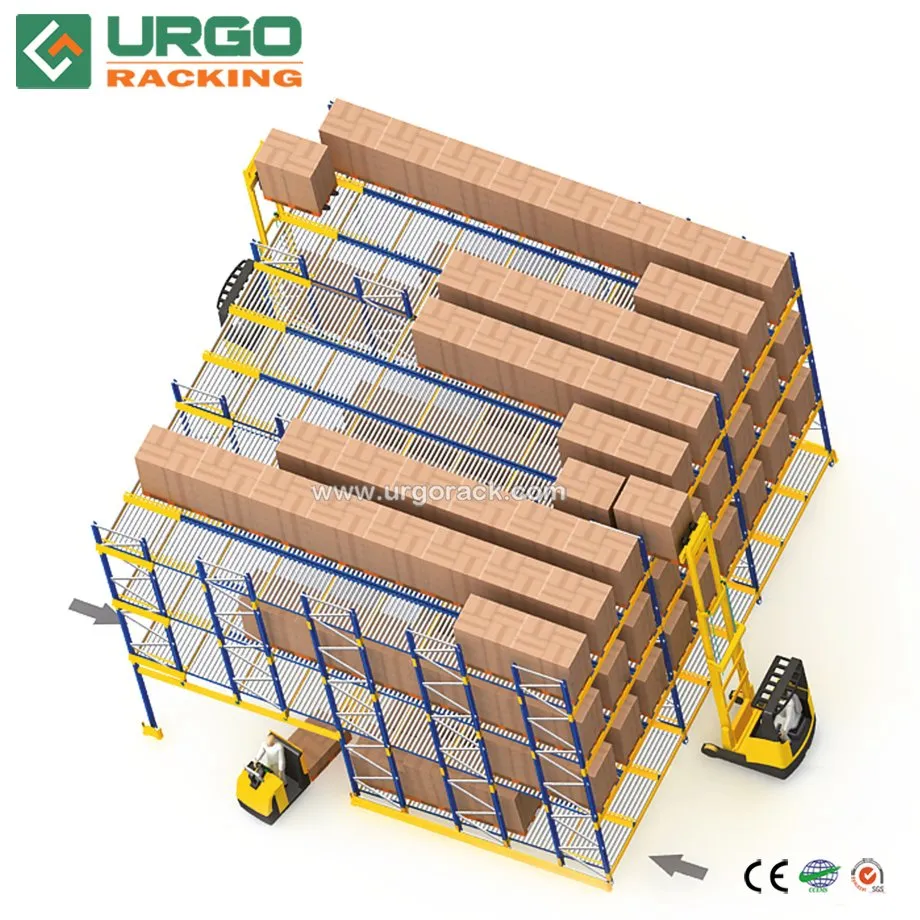

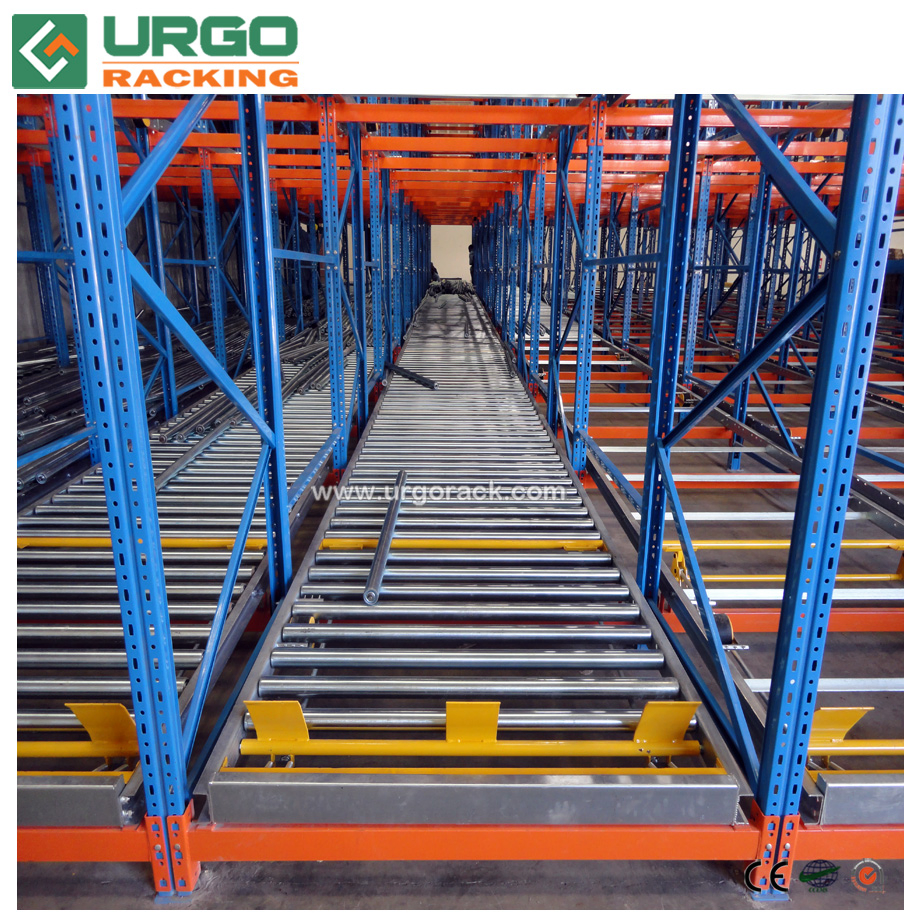

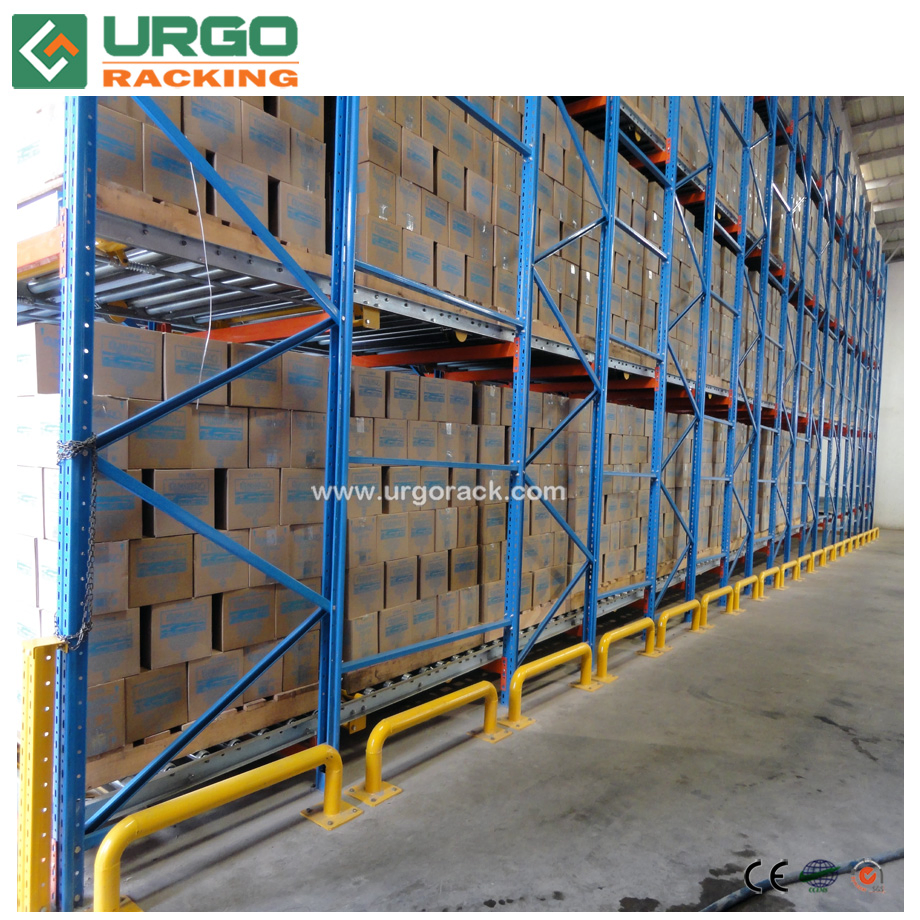

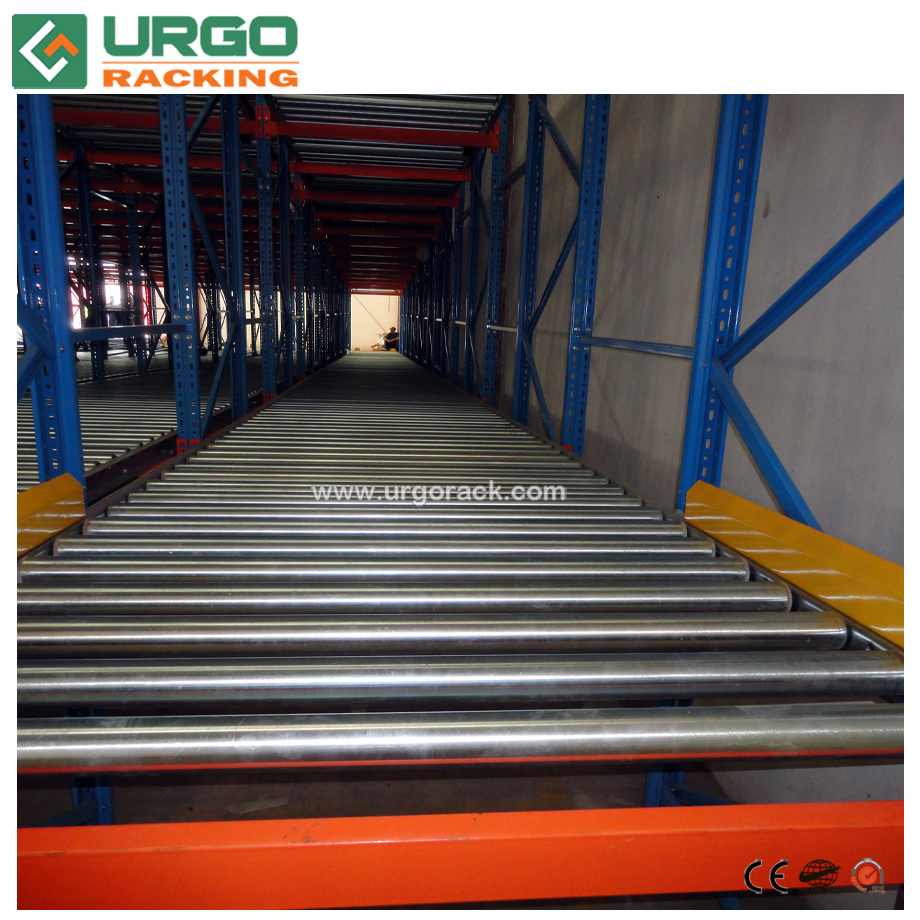

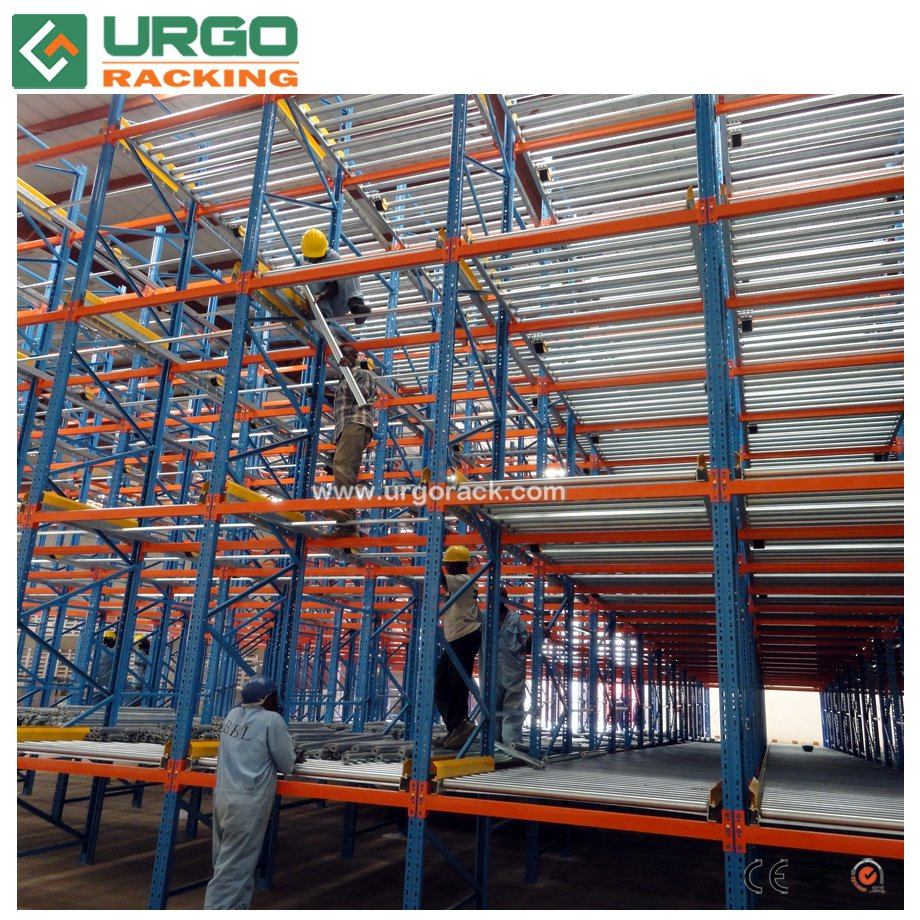

Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out Solution) is required and it is also popular. When pallets need to be moved quickly from one area to another, without the assistance of lift trucks.

Features:

Reduced warehouse cost;
Easy, efficient goods loading and unloading;
First In First Out (FIFO) pallet goods storage;
Heavy duty long life construction;
Reduced aisle space by 60-70%;
Increased warehouse utilization and space savings;
Reduced forklift damage as pallet or carton flows to the operator or unloading area.

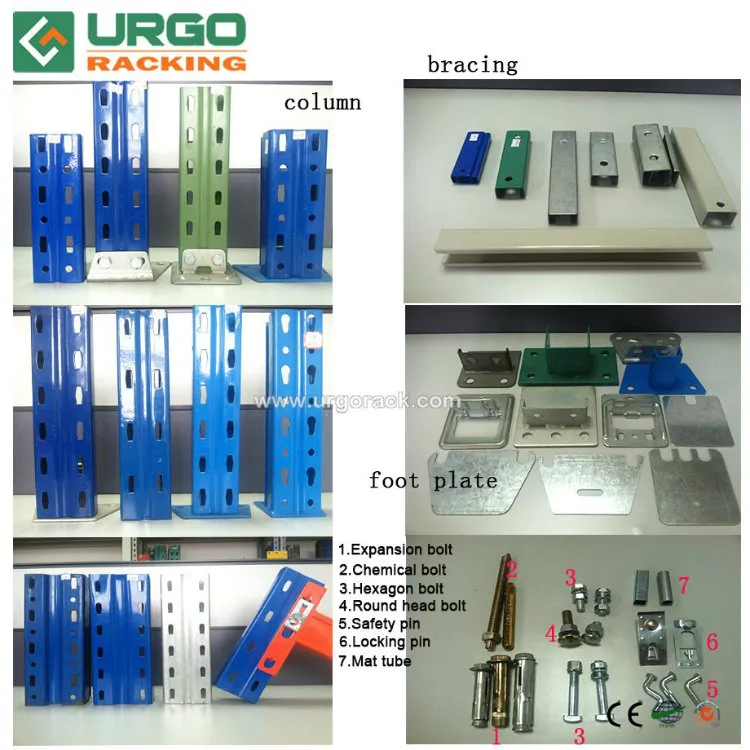

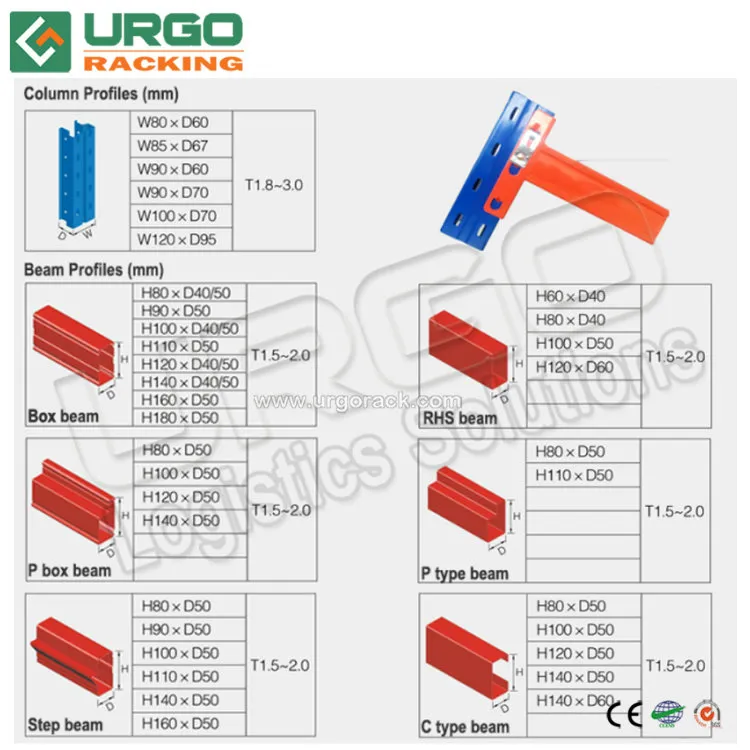

Column Profiles:

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8-2.0	4000-6000 KG
W85 x D67	1.8-2.3	7500-12500 KG
W90 x D60	1.8-2.5	8000-10000 KG
W90 x D70	1.8-2.5	10000-12000 KG
W100 x D70	2.0-2.5	11000-14000 KG
W120 x D95	2.3-3.0	17000-21000KG

Beam Profiles:

Loading (kg) Specification (mm)	The Length of Box Beam (mm)
Loading (kg) Specification (mm)	1500	2000	2300	2500	2700	3000	3300	3600	3900
80 x 50 x 1.5	3000	1740	1340	1160	1010	-	-	-	-
90 x 50 x 1.5	4080	2350	1800	1645	1345	1010	850	-	-
100 x 50 x 1.5	-	2960	2260	1930	1680	1380	1040	-	-
110 x 50 x 1.5	-	-	2640	2250	1950	1600	1340	1140	-
120 x 50 x 1.5	-	-	3200	2730	2358	1930	1518	1379	-
140 x 50 x 1.5	-	-	-	3868	3330	2720	2370	2020	-
160 x 50 x 1.5	-	-	-	-	4220	3690	2970	2600	2340
160 x 50 x 1.8	-	-	-	-	-	4400	3420	3020	2590
160 x 50 x 2.0	-	-	-	-	-	4130	4170	3320	2840

Loading (kg) Specification (mm)	The Length of P Box Beam (mm)
Loading (kg) Specification (mm)	1500	2000	2300	2500	2700	3000	3300	3600	3900
100 x 50 x 1.5	4470	2512	1900	1610	1380	1120	920	-	-
110 x 50 x 1.5	5484	3085	2332	1974	1693	1371	1133	952	-
120 x 50 x 1.5	-	3910	2957	2503	2146	1738	1436	1207	1030
140 x 50 x 1.5	-	5722	4330	3662	3140	2543	2102	1766	1505

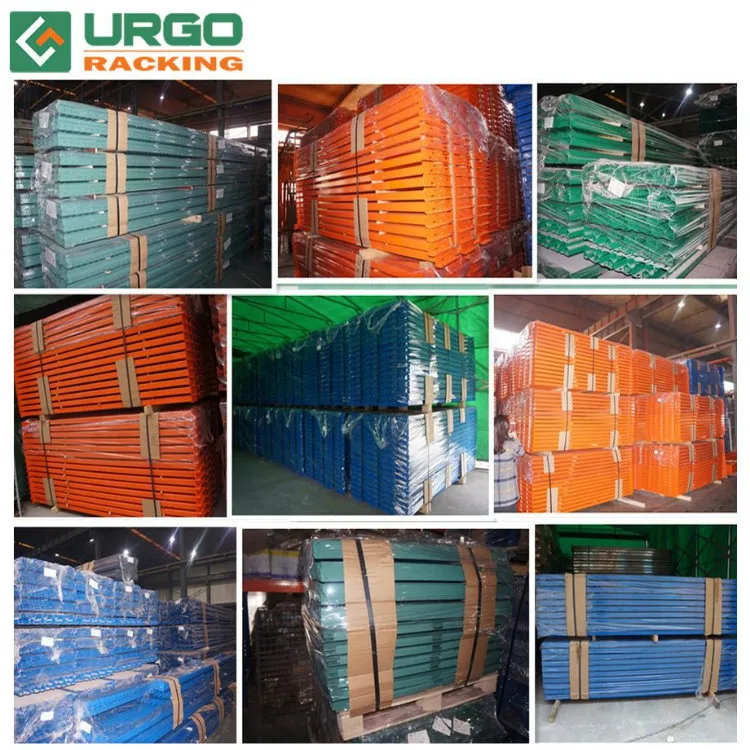

Packaging and Shipping

Warehouse Storage Pallet Flow Racking Roller Gravity Pallet Rack Packaging

Frequently Asked Questions

? What makes your racking solutions different from other suppliers?

1) Our Excellent Service: We promise to reply with a price quote within 12 hours.
2) Quick Manufacturing Time: For selective pallet racking orders, we promise to produce within 15 days. As a manufacturer, we ensure precise delivery times according to formal contracts.
3) Special Export Design: We pay close attention to export packages, using plastic clips on the beams to protect them from surface damage during transit and wrapping the entire uprights with transparent plastic film.
4) Extended Warranty: The high standards in design and manufacturing ensure we support our products with a 10-year warranty under normal usage.

? Can I monitor the progress and status of my order?

Yes. We will send you regular updates, information, and photos at different production stages of your order, ensuring you receive the latest details in a timely manner.

? Are samples available for quality evaluation?

Yes, we can send sections of samples for your reference via express delivery.

? Is a Galvanized Finish option available for the pallet racks?

Yes. Both the pallet racking posts and bracings are available with a high-quality galvanized finish.

? How can I request a quick quotation for my pallet racking project?

Because different projects have unique requirements, please provide the following details for a fast and accurate quote:
1) Required Pallet Racking Dimensions: Height * Depth * Length
2) Number of levels
3) Loading capacity of each level
4) Racking Quantity

? What are the general load capacities for the columns and beams?

The upright column loading capacities range from 4,000 kg up to 21,000 kg depending on thickness and specifications. Beam load limits vary based on length and cross-section profiles, supporting capacities from 850 kg up to over 5,000 kg per level.
